HDMI Extender
User Manual
Model :
HE01SE
HDMI CAT5e Extender-Single CAT5e cable 1080p 40M
Smart Cabling & Transmission Corp.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE01SE and is the answer not in the manual?

Questions and answers

Summary of Contents for SC&T HE01SE

  • Page 1 HDMI Extender User Manual Model : HE01SE HDMI CAT5e Extender-Single CAT5e cable 1080p 40M Smart Cabling & Transmission Corp. V1.0...
  • Page 2: Installation View

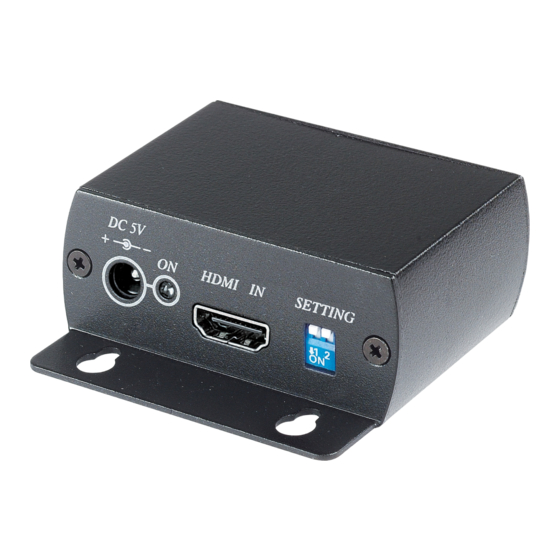

    HE02EI Introduction HE01SE is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission distance up to 70 meters and resolution up to 1080p. The Tx unit has a built-in EDID auto backup function that can save desired resolution and restore it whenever. The RX unit has a built-in HDMI connector that allows the receiver to directly connect to an HDMI display without any external power required.
  • Page 3: Dip Switch Function

    User Manual HE02EI Use external EDID: 1. Move DIP switch 1 on ↓, HE01ST unplug the power. 2. HE01ST connect to HDMI connector of TV for auto backup. 3. Plug the power for HE01ST, TV EDID back up completed (Blue Power LED keep flash). 4.
  • Page 4: Transmission Distance

    User Manual HE02EI Transmission Distance The transmission distance will be affected from different HDMI equipment and cable quality. Lower resolution and good quality cable could extend longer distance up to 100 meters. HE01ST to HE01SER Resolution/Cable Distance(Meter) 1080p/CAT5e 1080p/CAT6 1080i,720p/CAT5e RJ45 Define Video Link (use TIA/EIA-568-B) 1.
  • Page 5: Specification

    User Manual HE02EI Specification ITEM NO. HE01ST HE01SER Support Compliance HDMI 1.3, HDCP, 3D Max. Video Resolution 1080p@60Hz Max. Transmission Distance 60M at 1080i, 40M at 1080p Video Bandwidth 2.25 Gbps Ports & Interfaces Video Input 1 x HDMI Type A Female 1 x RJ45 Video Output 1 x RJ45...
