Parts List - Linear Technology DC1386B Manual

QUICK START PROCEDURE
V GND
IN
Figure 2. Measuring Input or Output Ripple

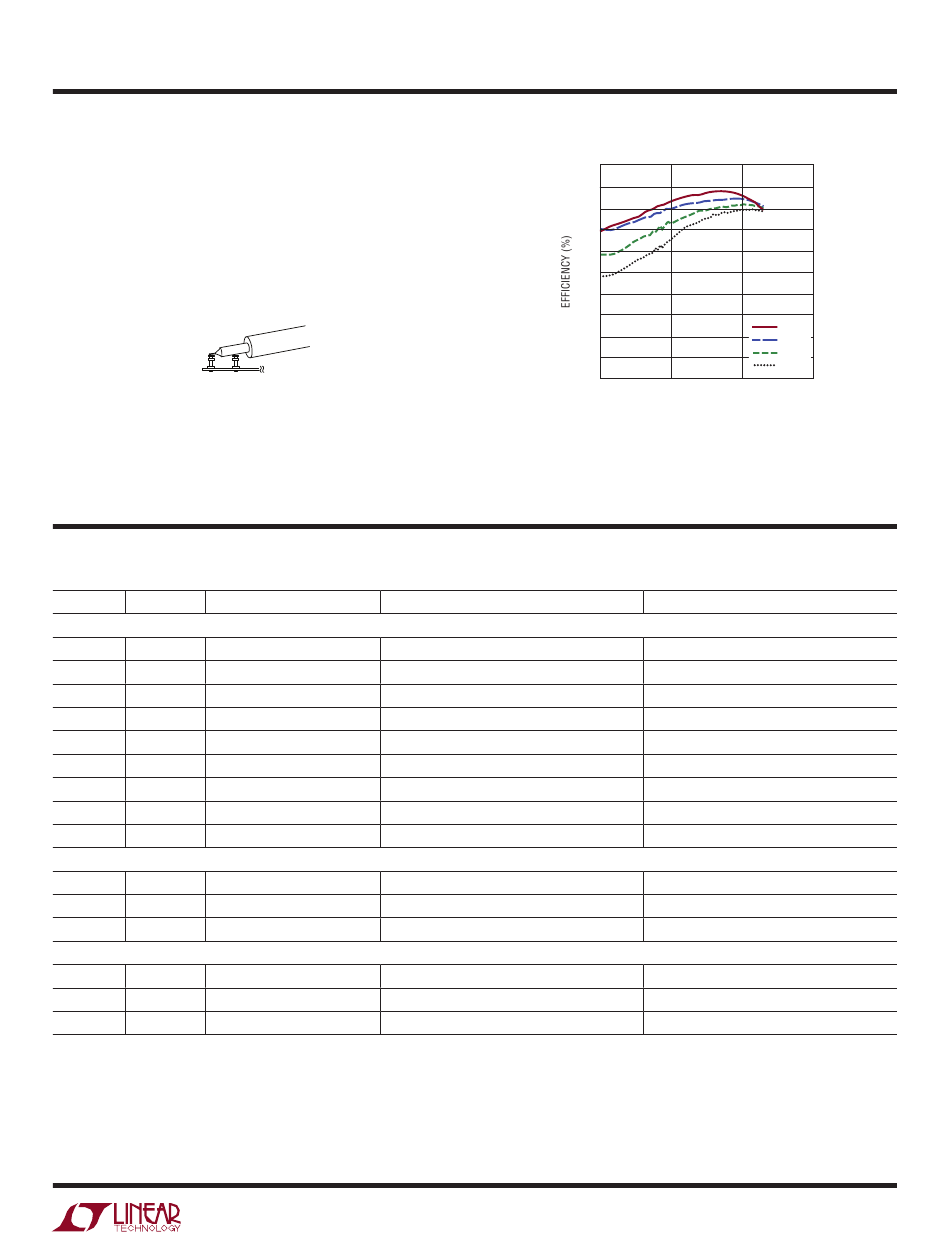

PARTS LIST

ITEM QUANTITY REFERENCE-DESCRIPTION
Required Circuit Components
1 1 C1
2 1 CIN1
3 1 C3
4 1 C4
5 1 R1
6 1 R2
7 2 R3, R5
8 1 R4
9 1 U1
Additional Demo Board Circuit Components
1 0 C10 (OPT)
2 0 C11 (OPT)
3 0 L1 (OPT)
Hardware for Demo Board Only
1 9 E1 to E9
2 1 JP1
3 1 Shunt
DEMO MANUAL DC1386B
DESCRIPTION
Cap, X7R, 2.2μF , 50V, 10%,1206
Cap, 22μF , 50V
Cap, X5R, 22μF , 10V, 20%, 1206
Cap, X7R, 0.1μF , 50V, 10%, 0603
Res, 54.9k, 1%, 1/16W, 0603
Res, 78.7k, 1%, 1/16W, 0603
Res, 100k, 1%, 1/16W, 0603
Res, 10k, 5%, 1/16W, 0603
IC, LTM8032EV, μModule
Cap, 1206
Cap, 22μF , 50V
Ind, High Current, Size 2525
Turret
Header, 3 Pin 2mm
Shunt, 2mm
100
90
80
70
60
50
40
30
20
10
0
0.01 1
0.1
OUTPUT CURRENT (A)
Figure 3. Effi ciency
MANUFACTURER/PART NUMBER
Murata GCM31CR71H225KA55L
Sanyo 50CE22BS
AVX 1206ZD226MAT2A
AVX 06035C104KAT2A
Vishay CRCW060354K9FKEA
Vishay CRCW060378K7FKEA
Vishay CRCW0603100KFKED
Vishay CRCW060310K0JNED
Linear Technology LTM8032EV#PBF
Mill-Max 2501-2-00-80-00-00-07-0
Samtec TMM-103-02-L-S
Samtec 2SN-BK-G
5.5V
IN
12V
IN
24V
IN
36V
IN
10
1386 F03
dc1386bfa
3
