DESCRIPTION
Demonstration circuit 1386 features the LTM
2A EN55022 Class B certifi ed step-down converter. This
μModule
®
regulator is confi gured to deliver a 3.3V output
from an input voltage between 5.5V to 36V at a switching
frequency of 600kHz. The wide input range of the LTM8032
allows a variety of input sources. Under light load condi-
tions, the available Burst Mode
effi ciency with low output ripple.
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Voltage V
OUT
Maximum Output Current
Typical Switching Frequency

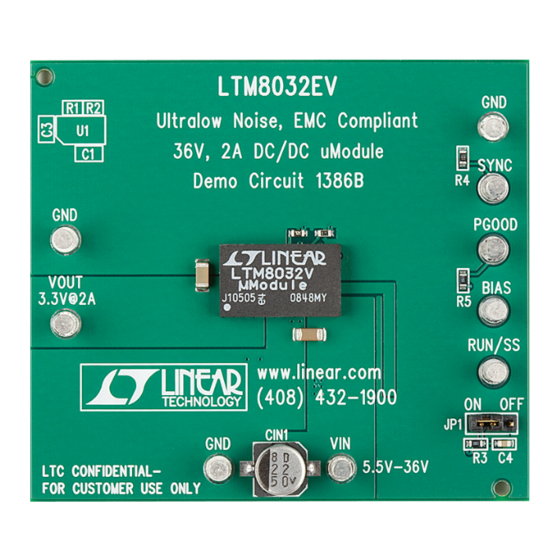

BOARD PHOTO
Arrow.com.
Downloaded from
®
8032, a
®
operation supports high
(T
= 25°C)
A
CONDITION

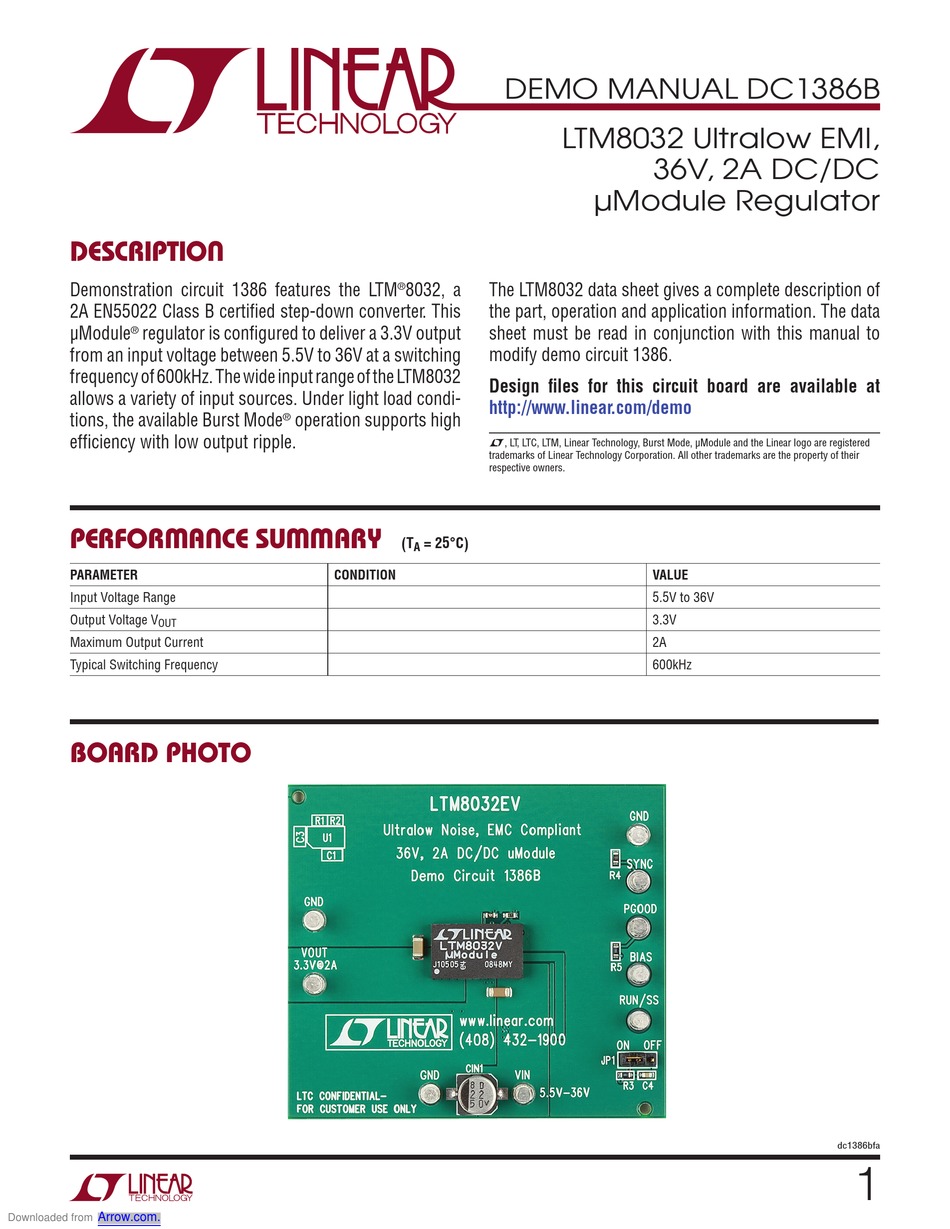

DEMO MANUAL DC1386B
LTM8032 Ultralow EMI,
36V, 2A DC/DC
µModule Regulator
The LTM8032 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this manual to
modify demo circuit 1386.
Design fi les for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, Burst Mode, μModule and the Linear logo are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
VALUE
5.5V to 36V
3.3V
2A
600kHz
dc1386bfa
