DESCRIPTION
Demonstration circuit 1386 features the LTM
2A EN55022 Class B certifi ed step-down converter. This
μModule
®
regulator is confi gured to deliver a 3.3V output
from an input voltage between 5.5V to 36V at a switching
frequency of 600kHz. The wide input range of the LTM8032
allows a variety of input sources. Under light load condi-
tions, the available Burst Mode
effi ciency with low output ripple.
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Voltage V
OUT
Maximum Output Current
Typical Switching Frequency

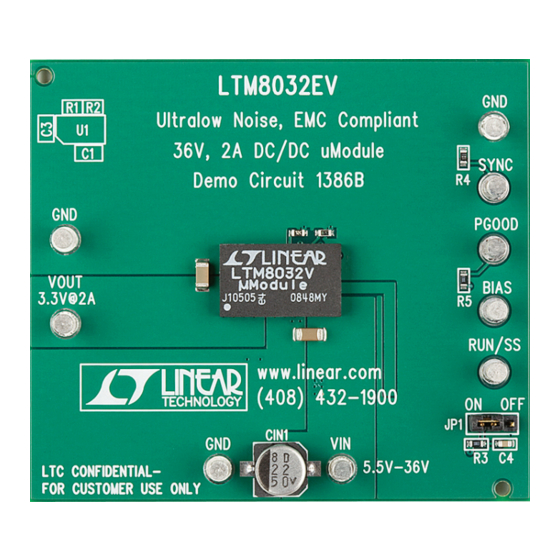

BOARD PHOTO
8032, a
®
®
operation supports high
(T
= 25°C)
A
CONDITION

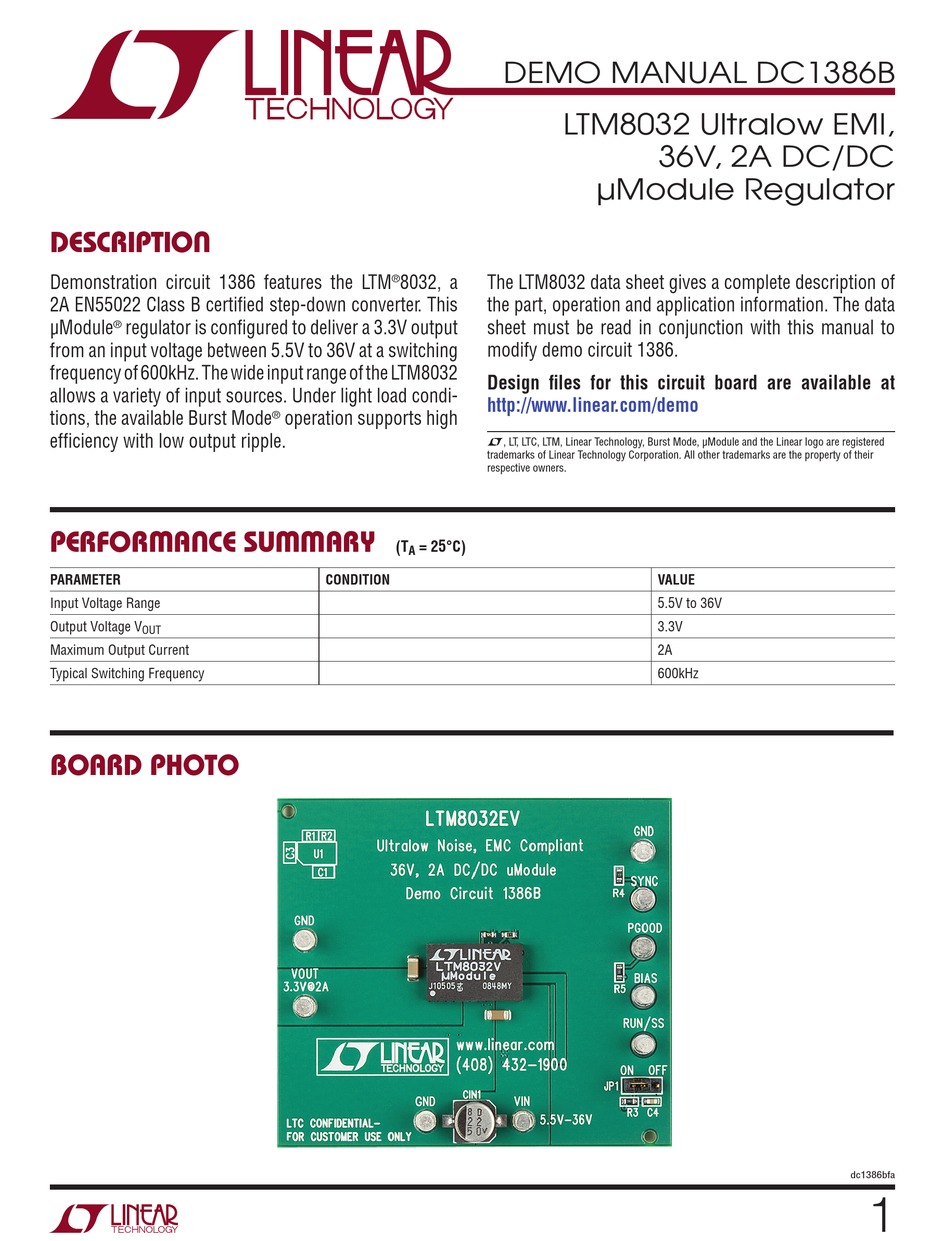

DEMO MANUAL DC1386B
LTM8032 Ultralow EMI,
36V, 2A DC/DC
µModule Regulator
The LTM8032 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this manual to
modify demo circuit 1386.
Design fi les for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, Burst Mode, μModule and the Linear logo are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
VALUE
5.5V to 36V
3.3V
2A
600kHz
dc1386bfa
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Linear Technology DC1386B
Summary of Contents for Linear Technology DC1386B
- Page 1 ® operation supports high effi ciency with low output ripple. L, LT, LTC, LTM, Linear Technology, Burst Mode, μModule and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC1386B QUICK START PROCEDURE Demonstration circuit 1386 is easy to set up to evaluate 3. Turn on the power at the input. the performance of the LTM8032. Refer to Figure 1 for NOTE. Make sure that the input voltage does not exceed proper measurement equipment setup and follow the the maximum input voltage. -
Page 3: Parts List
DEMO MANUAL DC1386B QUICK START PROCEDURE 5.5V 0.01 OUTPUT CURRENT (A) Figure 2. Measuring Input or Output Ripple 1386 F03 Figure 3. Effi ciency PARTS LIST ITEM QUANTITY REFERENCE-DESCRIPTION DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components Cap, X7R, 2.2μF , 50V, 10%,1206... -
Page 4: Schematic Diagram
DEMO MANUAL DC1386B SCHEMATIC DIAGRAM dc1386bfa... -
Page 5: Revision History
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
