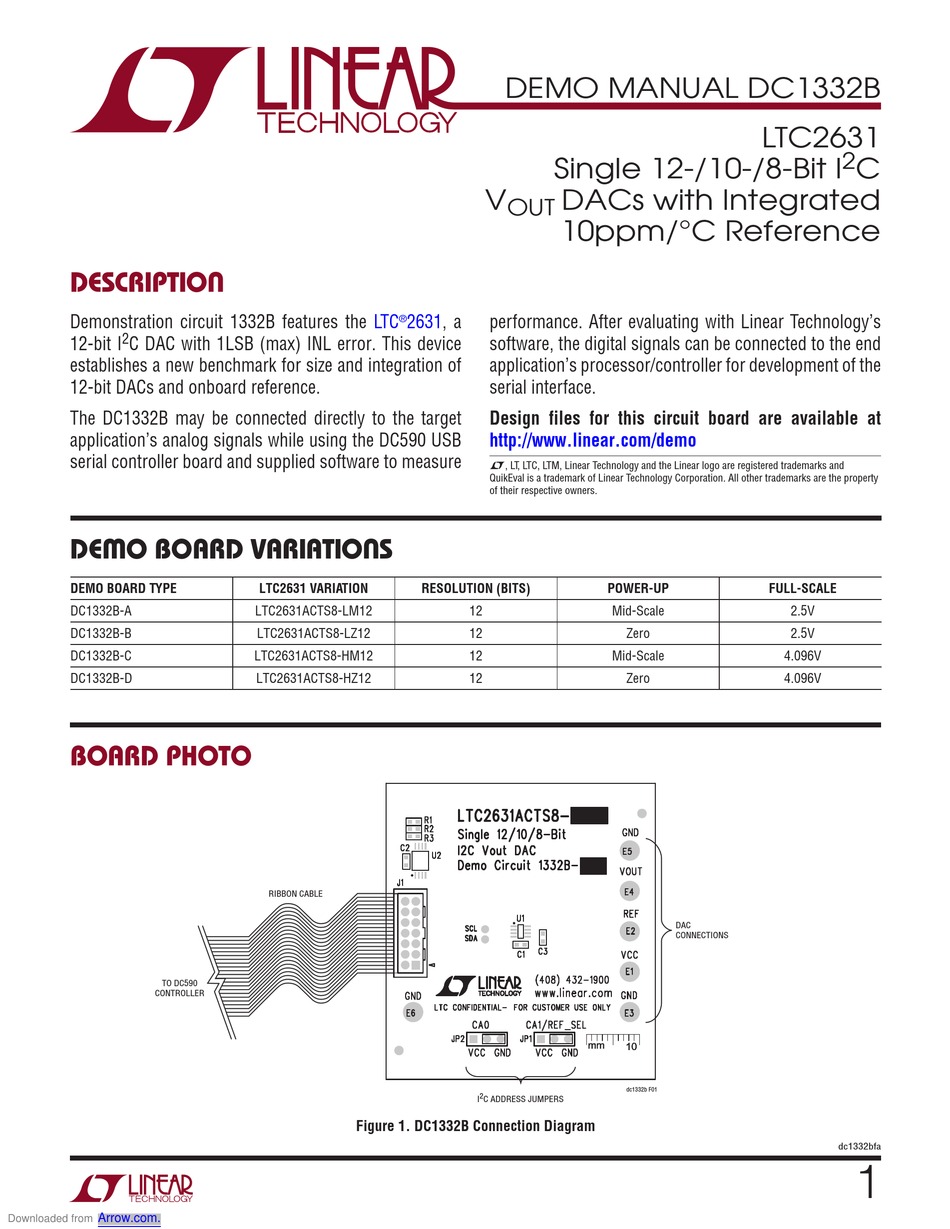

Description
Demonstration circuit 1332B features the
2
12-bit I
C DAC with 1LSB (max) INL error. This device
establishes a new benchmark for size and integration of
12-bit DACs and onboard reference.
The DC1332B may be connected directly to the target
application's analog signals while using the DC590 USB
serial controller board and supplied software to measure
Demo BoarD Variations
DEMO BOARD TYPE
DC1332B-A
DC1332B-B
DC1332B-C
DC1332B-D

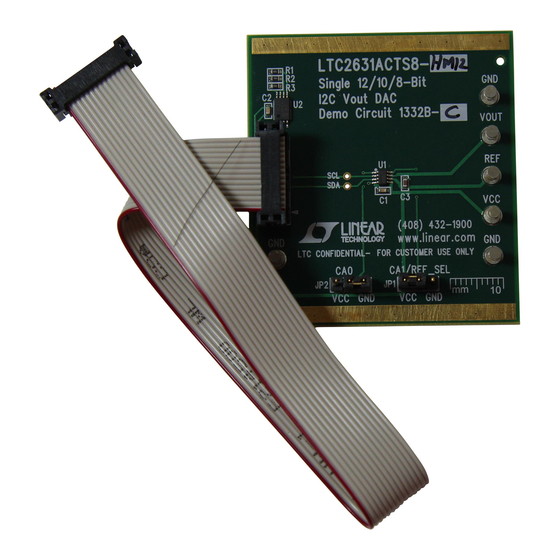

BoarD photo
TO DC590
CONTROLLER
Arrow.com.
Downloaded from
LTC
2631, a
®
LTC2631 VARIATION
RESOLUTION (BITS)
LTC2631ACTS8-LM12
LTC2631ACTS8-LZ12
LTC2631ACTS8-HM12
LTC2631ACTS8-HZ12
RIBBON CABLE
Figure 1. DC1332B Connection Diagram
DEMO MANUAL DC1332B
Single 12-/10-/8-Bit I
V
DACs with Integrated
OUT
10ppm/°C Reference
performance. After evaluating with Linear Technology's
software, the digital signals can be connected to the end
application's processor/controller for development of the
serial interface.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
POWER-UP
12
Mid-Scale
12
Zero
12
Mid-Scale
12
Zero
dc1332b F01
2
I
C ADDRESS JUMPERS
LTC2631
2
FULL-SCALE
2.5V
2.5V
4.096V
4.096V
DAC
CONNECTIONS
dc1332bfa
1
C
Advertisement
Table of Contents
Related Manuals for Linear Technology DC1332B
Summary of Contents for Linear Technology DC1332B
- Page 1 L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC1332B Quick start proceDure 1. Connect the DC1332B to a DC590 USB serial controller Options are available to display the DAC output in voltage, using the supplied 14-conductor ribbon cable. hex code, or decimal count. Additionally, the reference voltage may be changed to reflect an actual measured 2. -
Page 3: Hardware Setup
GROUNDING AND POWER CONNECTIONS CA0: This sets the I C address of the LTC2631. These Power (V ): Normally, the DC1332B is powered by the should be set to 1 (V ) by default. DC590 controller. V can be supplied to the 5V turret,... -
Page 4: Revision History
DEMO MANUAL DC1332B reVision history (Revision history begins at Rev B) BOARD REV DATE DESCRIPTION PAGE NUMBER 10/13 Add C3 dc1332bfa Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 5: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
