DEMO MANUAL DC1979A
appenDix

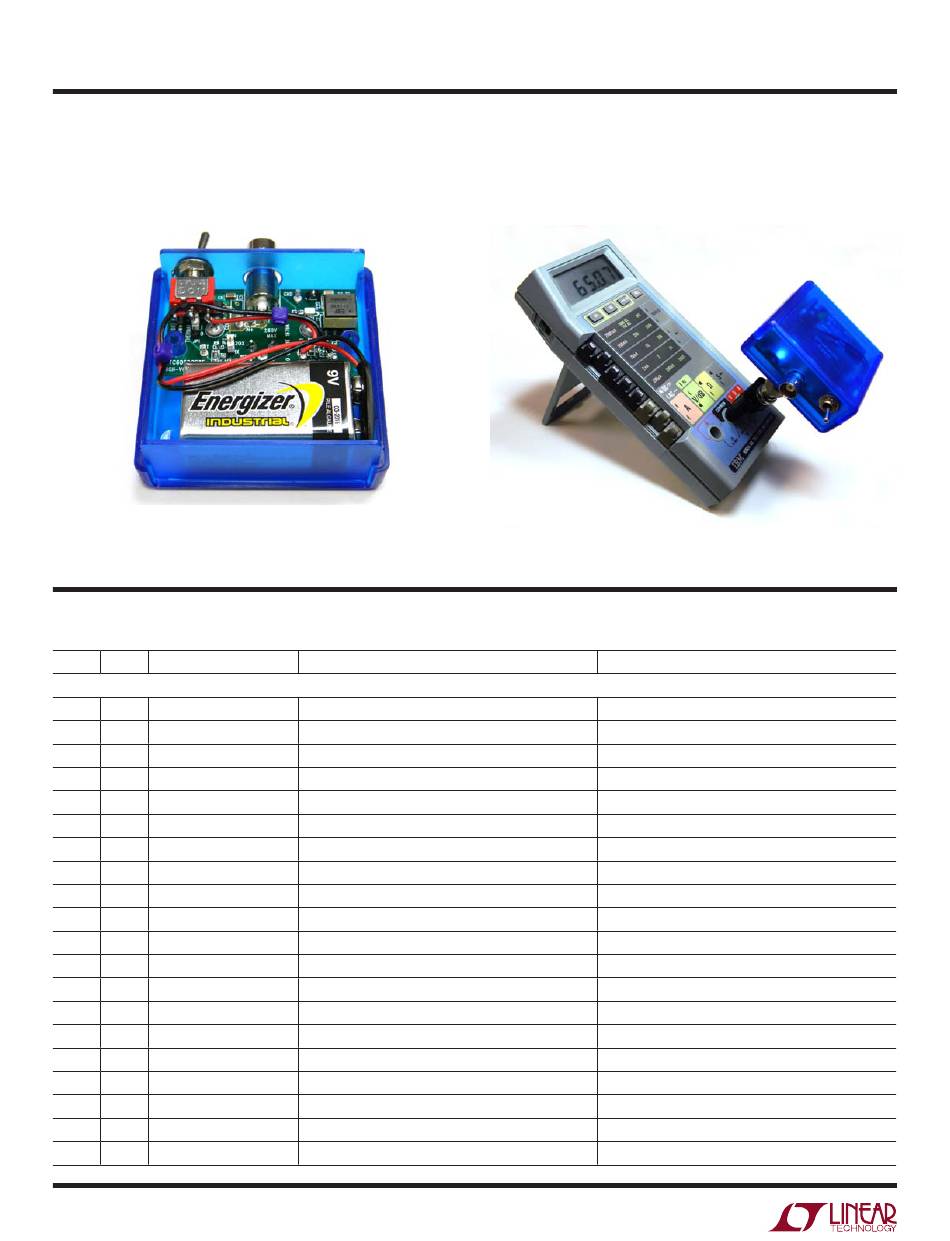

Figure 4 is an interior photo of the finished unit including
the switch and 9V battery. The translucent blue Hammond
1593KTBU was selected so the LED would be visible during
Figure 4. Interior of Completed Unit

parts list

ITEM QTY REFERENCE
Required Circuit Components
1 2 C1, C3
2 1 C2
3 2 C4, C6
4 0 C5
5 1 C7
6 2 D1, D3
7 1 D2
8 5 E1-E5
9 2 JP1, JP2
10 2 XJP1, XJP2
11 0 J1
12 0 J2
13 1 LED1
14 1 L1
15 1 R1
16 1 R2
17 1 R3
18 2 R4, R7
19 2 R5, R9
20 1 R6
4
PART DESCRIPTION
CAP., 1206, 1µF, 10%, 100V, X7R
CAP., 1206, 4.7µF, 10%, 25V, X7R
CAP., X7R, 0.1µF, 100V, 10%, 0805
CAP., COG, 15pF, 100V, 5%, TH, OPT
CAP., NPO, 5.6pF, 100V, ±0.25pF, 0603
SWITCHING DIODE, SOD-123
SM ZENER DIODE, SOD-123, CMHZ5266B
TURRET
HEADER, 3-PIN, 2mm
SHUNT
CON, BNC-J/RA/PCB (OPT)
CON, BNC, 5 PINS (OPT)
LED, 1206, BLUE
IND., 1206
RES., CHIP, 100k, 1/10W, 1%, 0603
RES., CHIP, 23.2k, 1/10W, 1%, 0603
RES., CHIP, 130k, 1/10W, 1%, 0603
RES., CHIP, 100Ω, 1/10W, 1%, 0603
RES., CHIP, 5.23k, 1/10W, 1%, 0603
RES., CHIP, 49.9Ω, 1/10W, 1%, 0603
operation. Standard adapters can be used to transform
the output into a banana-plug pair that can directly attach
the unit to a DMM, as shown in Figure 5.
Figure 5. Completed Unit Attached to DMM
MANUFACTURER/PART NUMBER
MURATA, GRM31CR72A105KA01L
MURATA, GRM31CR71E475KA88L
MURATA, GCM21BR72A104KA37L
AVX, 06031A5R6CAT2A
CENTRAL SEMICONDUCTOR, CMMR1U-02
CENTRAL SEMICONDUCTOR, CMHZ5266B
MILL-MAX, 2308-2-00-80-00-00-07-0
SAMTEC, TMM-103-02-L-S
SAMTEC, 2SN-BK-G
MOLEX INC., SD-73100-0105
CONNEX, 112404
PANASONIC, LNJ951C4BRA
MURATA, BLM31PG330SN1L
VISHAY, CRCW0603100KFKEA
VISHAY, CRCW060323K2FKEA
VISHAY, CRCW0603130KFKEA
VISHAY, CRCW0603100RFKEA
VISHAY, CRCW06035K23FKEA
VISHAY, CRCW060349R9FKEA
dc1979af
