Chapter 2

Installation

EasyCoder 501 XP and
601 XP
#T10 Torx screws (4x)
2
• Switch off the power and disconnect the power cord.
The electronics compartment contains high voltage com-
ponents and wires. Do not open the electronics compart-
ment before the printer is safely disconnected from any AC
supply.
• Open the right-hand door.

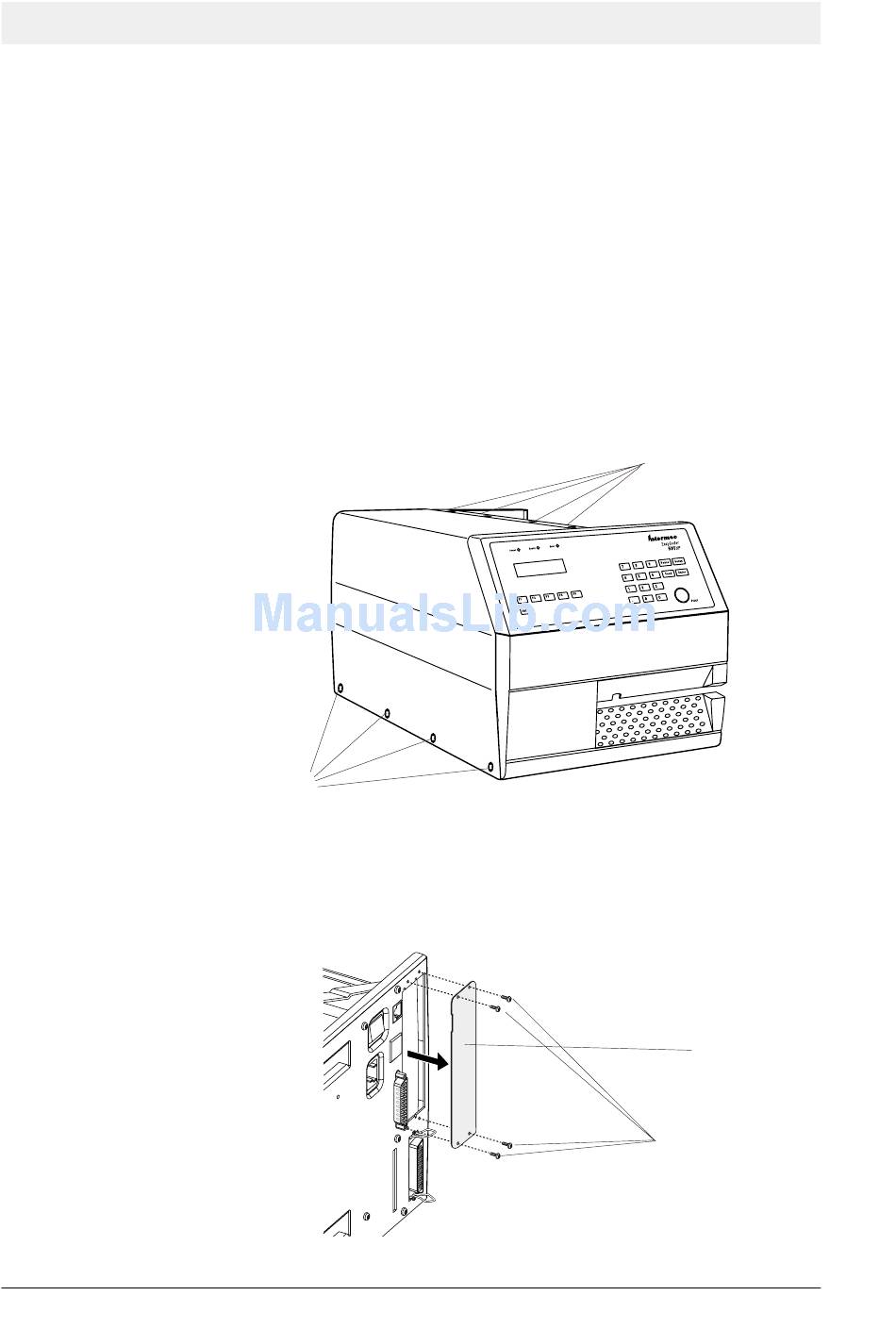

• Remove the four #T10 Torx screws along the lower edge of
the cover over the electronics compartment.
• Remove the four #T10 Torx screws that hold the upper edge
of the same cover.
• Remove the cover and put it aside on a soft cloth or similar
to avoid scratches.
• Remove the four #T10 Torx screws that hold the interface
cover plate above the parallel interface connector on the
printer's rear plate. Remove the cover plate.
• Save the cover plate for possible later use. Keep the
screws.
EasyCoder XP- & F-Series Double Serial Interface Board – Installation Instructions Ed. 2
Warning!
#T10 Torx screws (4x)
#T10 Torx screws (4x)
Cover Plate
