EasyCoder XP- & F-Series Double Serial Interface Board – Installation Instructions Ed. 2

• If necessary, ﬁ t or remove circuits and straps to adapt the

Double Serial Interface Board for the desired type of serial

interface as described in Chapter 3 and 4.

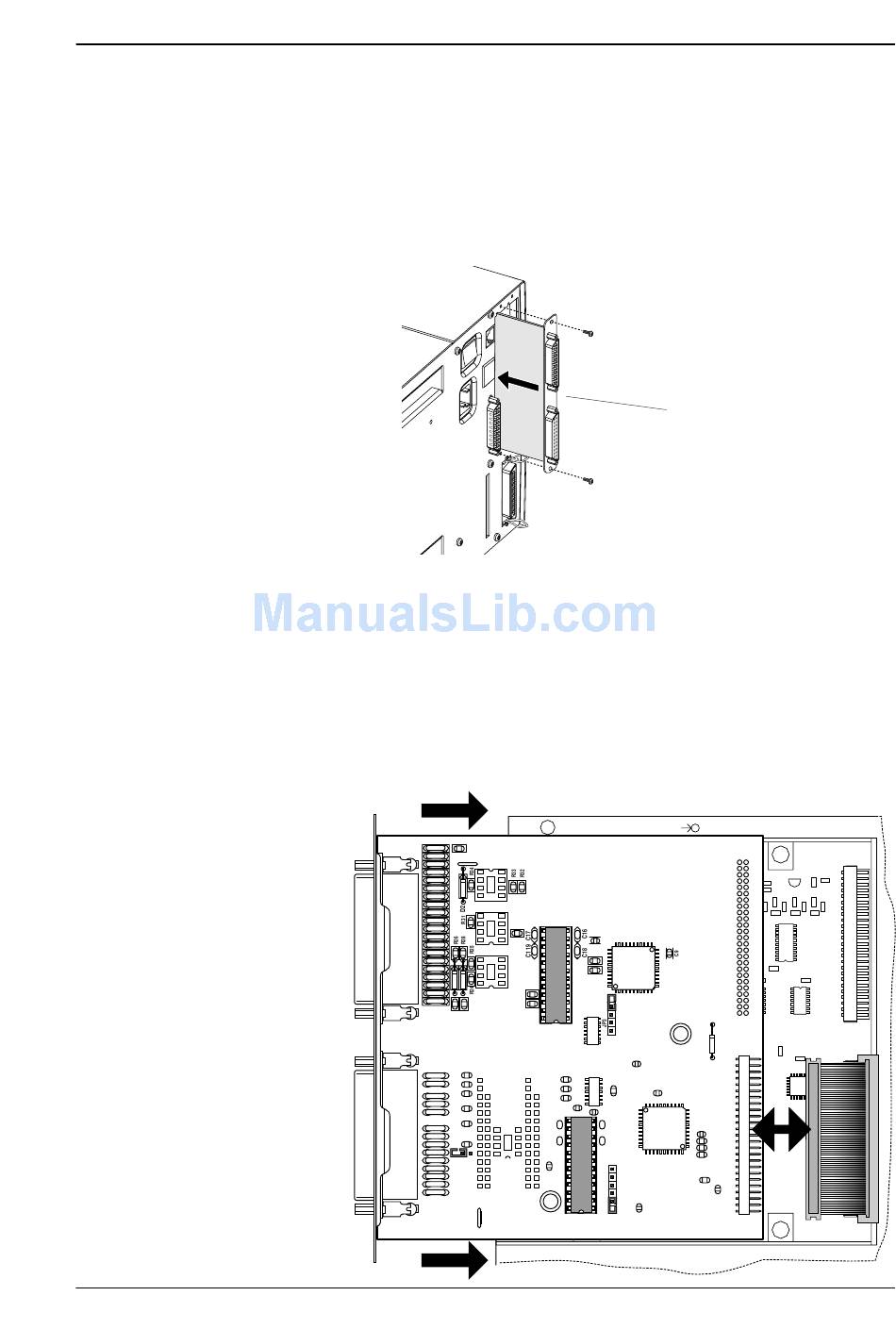

• Insert the Double Serial Interface Board with the compo-

nents side facing right, as seen from behind. Check that the

board ﬁ ts into the two square cut-outs on the left side of the

slot.

• Attach the Double Serial Interface Board to the printer's

rear plate by means of two of the screws left over when you

removed the original cover plate.

• Using the remaining two screws, attach the narrow cover

plate included in the delivery so it covers the right side of

the slot.

• Connect the cable running from P81 on the CPU board to

connector P1 on the Double Serial Interface Board.

R35

F32

UART3

RS232: IC11

RS422nonisol.: IC12, S5

F24

RP2

20mA CL: IC13, IC14, S6

IC14

F20

F23

F31

F34

P35

F16

F17

F18

R30

F25

1-971600-01 P01

IC13

R23

IC12

F33

F30

R22

R27 R29

RS232: IC2

RS485: IC4, S3, S4*

UART2

RS422isolated: IC3, S2, S4

RS422nonisol.: IC18, S1,S4

* Term. if end of cable

R11

F10

F11

P32

F12

F13

F14

R10

IC18

IC4

IC3
