ELECTRONICS
Accessing the CPU Board
WARNING!
Disconnect the power cord
before removing the cover plate.
Dangerous voltage!

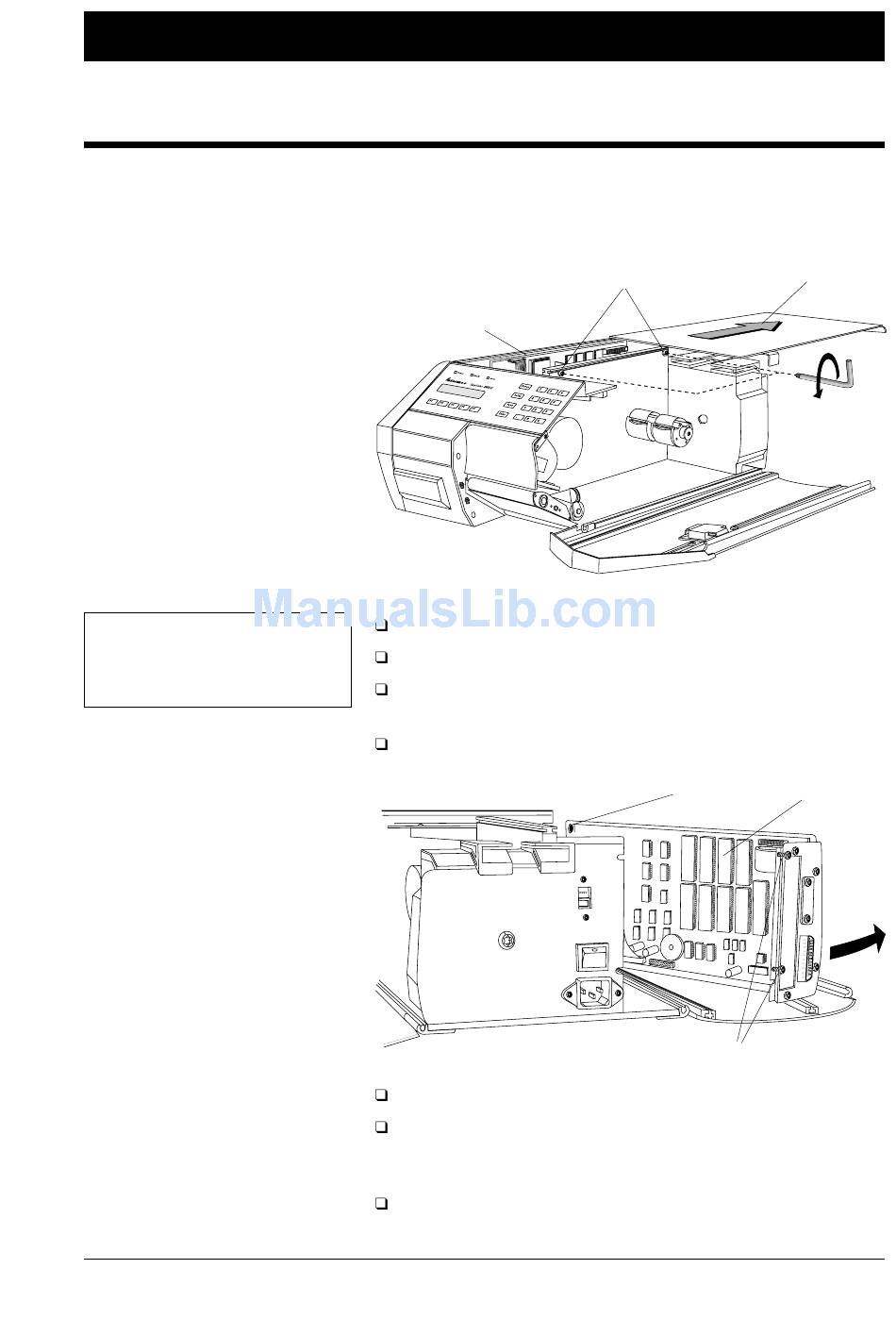

The CPU board is situated in the electronics compartment on the left
side of the printer's centre-line wall. To gain access to the electronics
compartment, proceed as follows:
CPU Board
Disconnect the power cord from the printer.
Open the right-hand door.
Loosen the two #T20 Torx screws, that lock the cover to the
printer's centre-line wall.
Pull the cover straight back and remove it completely.
Open the left-hand door.
Loosen the two #T10 Torx screws, that hold the CPU board assy.
to the rear plate. Also remove the screw that holds the forward/
upper corner of the CPU board, then swing the unit outward.
Reassemble in reverse order, making sure that the top cover is
positively secured by the two locking screws.
2 Screws
1 Screw
2 Screws
Cover
CPU Board
67
