Intermec EasyCoder 201 II – Technical Manual
INTERFACES
Communication Port
"uart1:"
UART = Universal Asynchronous
Receiver and Transmitter
Thermal Printer 201
U L
R
Model #
LISTED 65B5 LR67809
1-201011-11
V
D E
Serial #
MADE IN SWEDEN geprüfte
Sicherheit
50105
115-230V 2.6-1.3A 50-60Hz
N309
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
INTERMEC PRINTER AB MADE IN SWEDEN

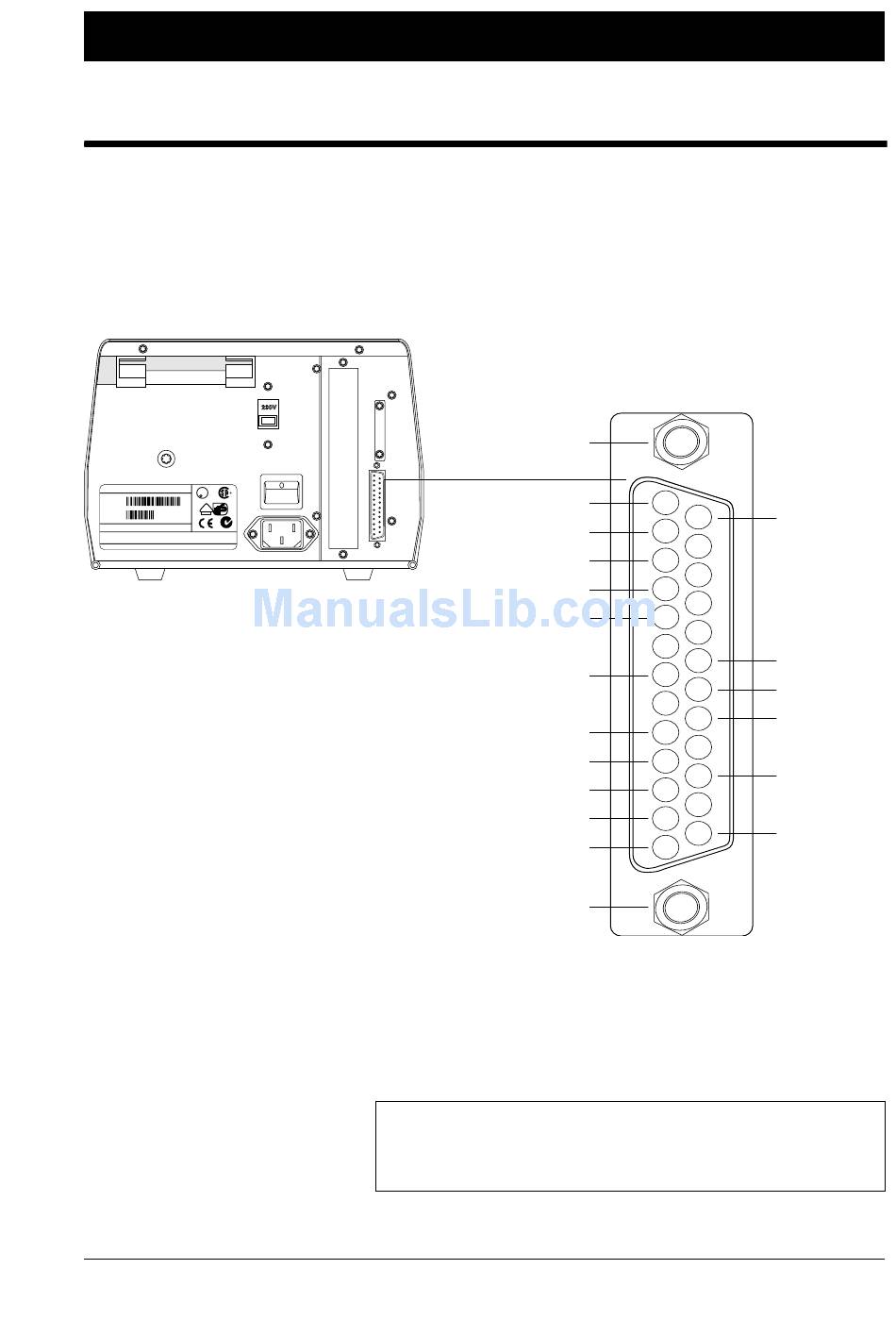

All EasyCoder 201 II printers are fitted with a DB25 male interface
connector on their rear plates (comm. port "uart1:"). This connector
can be used for an RS 232C (standard), or a 20 mA current loop
interface depending on how the CPU board is strapped. In the latter
case, two optional opto-couplers must be fitted. The configuration
of the connection cable is also important.
GNDC
+20 mA 2
-TXD
+TXD
-20 mA 1
+20 mA 1
GNDI
CTS in
RTS out
RXD in
TXD out
GNDC
GNDC
If the printer is ordered without any connection cable, a suitable
cable can be procured locally and, if necessary, be modified
according to the pinout descriptions in this chapter.
A shielded communication cable is required in order to comply
with the FCC/DOC approval and to avoid
the risk of interference to radio communications.
13
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
14
1
Signals on the printer's
communication port "uart1:"
NOTE!
-RXD
DTR out
+RXD
+5V Ext.
-20 mA 2
73
