Intermec EasyCoder 201 II – Technical Manual
INSTALLATION, cont'd.

Computer Connection

WARNING!
When connecting printer and host,
the power should be off!
Intermec Standard Cables
RS 232C Cables:
Printer to IBM-AT
Printer to IBM-XT/PS2
Centronics Cable:
DB-25/Centronics
As standard, all EasyCoder 201 II printer models are fitted with one
communication port for RS 232C on their rear plates. This commu-
nication port can be reconfigured for 20 mA Current Loop after two
optocouplers (option) have been fitted on the CPU board, see
chapter "Interfaces".
EasyCoder 201 IISA printers do not have to be connected to a
computer.
If there are other communication ports, or if you have ordered a non-
standard printer, refer to the chapter "Interfaces" for information
on how to connect the printer.
No communication cable is provided unless ordered separately.
Refer to the chapter "Interfaces" for cable configuration descrip-
tions.
Refer to the manual of the host computer or terminal for information
on how to connect the other end of the communication cable.
Thermal Printer 201
Model #
1-201011-11
Serial #
50105
115-230V 2.6-1.3A 50-60Hz
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
INTERMEC PRINTER AB
Hints:
• For Intermec LabelShop or Intermec Fingerprint programming, use the
1-975581-05
"uart1:" serial RS 232C communication channel.
1-975580-05
• For Intermec Windows Driver, use the "centronics:" parallel communication
channel.
1-010001-00
• Intermec's standard communication cables and adapters makes it possible to
connect the printer directly to the serial or parallel port of an IBM AT, XT or
PS-2 personal computer.
U L
R
LISTED 65B5 LR67809
V
D E
MADE IN SWEDEN
geprüfte
Sicherheit
N309
MADE IN SWEDEN

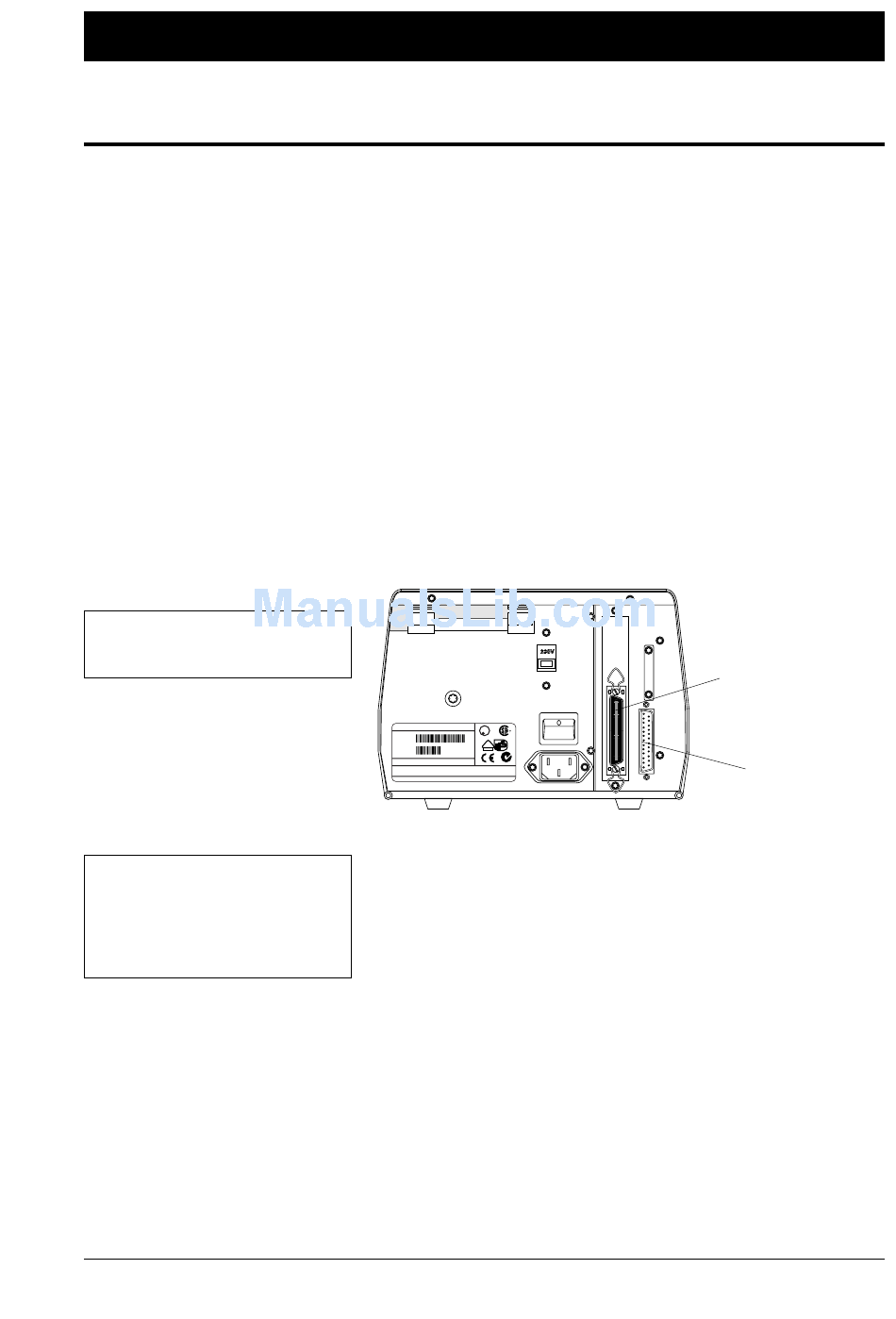

Optional Parallel Port
36-p female Centronics
Serial RS 232C Port
DB25 male
15
