UBI EasyCoder 201 II – Installation Instructions

PRINTHEAD REPLACEMENT

Step-by-Step Instructions

1-960352-00
UBI EasyCoder 201 II
Printhead Replacement Instructions
Edition 1, June 1993
The quick-mount thermal printhead is designed to be easy to
replace. Proceed as follows:
Turn off the printer.
Open the right-hand door and the front flap. (In case of cutter-
equipped printer, tilt the cutter forward).
Loosen the knurled screw at the centre of the printhead bracket.
Lift the printhead by turning the printhead lift handle counter-
clockwise (forward) and remove the web from the print mecha-
nism.
Pull out the printhead as far as the cable allows and disconnect
the cable to the printhead by carefully pulling at the connector
(not at the cable itself).

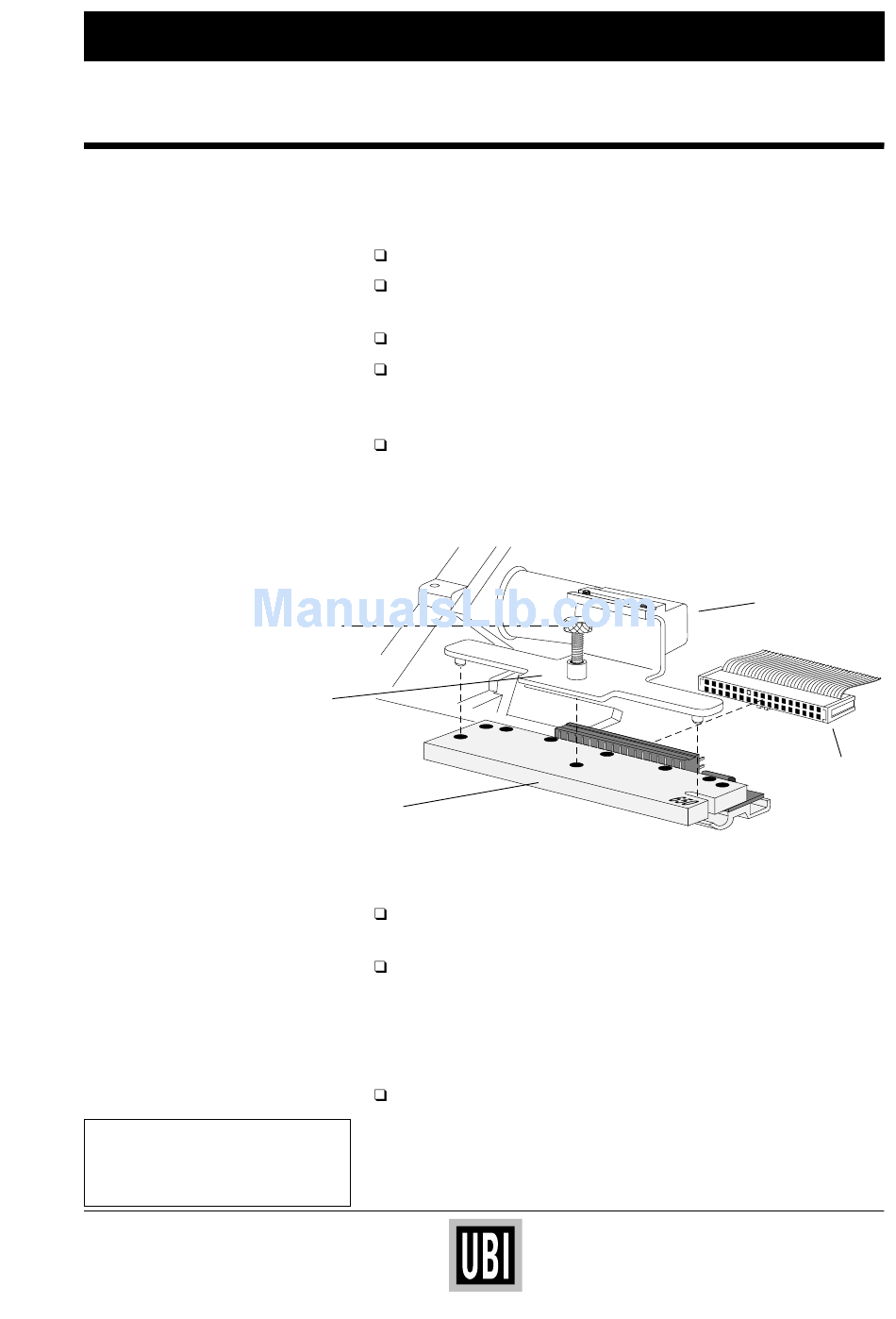

Screw
Bracket
Printhead assy.
Connect the cable to the new printhead assembly. It will only fit
easily in one way. Do not use excessive force!
Put the new printhead under the bracket so the cable runs behind
the printhead adjustment block.
Note! You cannot replace a 6 dots/mm printhead with an 8 dots/
mm printhead or vice versa, since they use different brackets and
cables.
Fasten the printhead assy. with the knurled screw, making sure
that the guide pins in the bracket fits into the corresponding slots
in the printhead adapter plate.
Illustration shows an 8 dots/mm printhead.
Adjustment block
Cable
Continued!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyCoder 201 II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intermec EasyCoder 201 II

  • Page 1: Printhead Replacement

    Turn off the printer. Open the right-hand door and the front flap. (In case of cutter- equipped printer, tilt the cutter forward). Loosen the knurled screw at the centre of the printhead bracket. Lift the printhead by turning the printhead lift handle counter- clockwise (forward) and remove the web from the print mecha- nism.
  • Page 2 Close the front flap and side door. Turn on the power. The printer will automatically reset itself to the characteristics of the printhead in regard of head resistance and density. If possible, print a series of test labels to make sure that the new printhead is OK.
