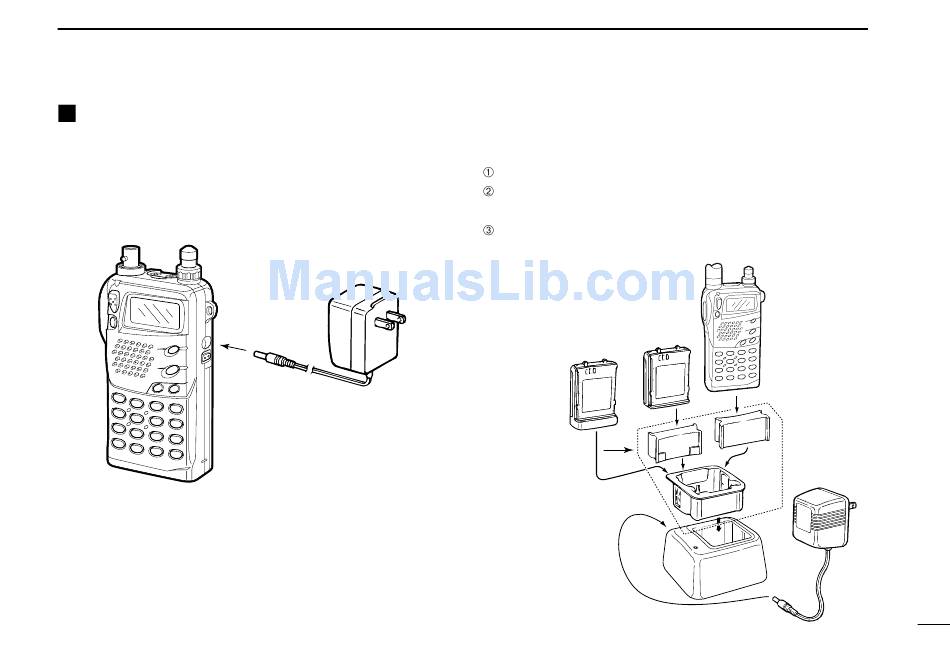

Charging connections

D Regular charging
Attach the supplied* or optional battery pack; then, connect
the supplied* wall charger via an AC outlet as shown below.
*Optional for versions which include a battery case.
To [DC13.5V]
Charging periods:
15 hours (w/BP-171, BP-173 or BP-180)
20 hours (w/BP-172)
D Rapid charging with the BC-119
Insert the AD-56A into the charging slot of the BC-119.
Insert the AD-56B into the groove in the AD-56A (front-fac-
ing side of the AD-56A).
Insert the battery pack, either by itself or attached to the
transceiver, into the AD-56B.
Wall charger
Check orientation
for correct
charging
Charging periods:
1 hour (w/BP-171
1.5 hours (w/BP-172 or BP-173)
BATTERY PACKS AND ACCESSORIES
BP-171 or
BP-173 or
BP-172
BP-180
WITHOUT
WITH
transceiver
or WITHOUT
transceiver
BC-119
(optional)
or BP-180)
2
BP-171 or
BP-172
attached to
the transceiver
AD-56
(optional)
7
