Figure 29: Booster Pack Closed Case

6.14 E P - PDR8000 S
XTERNAL ORTS UITCASE

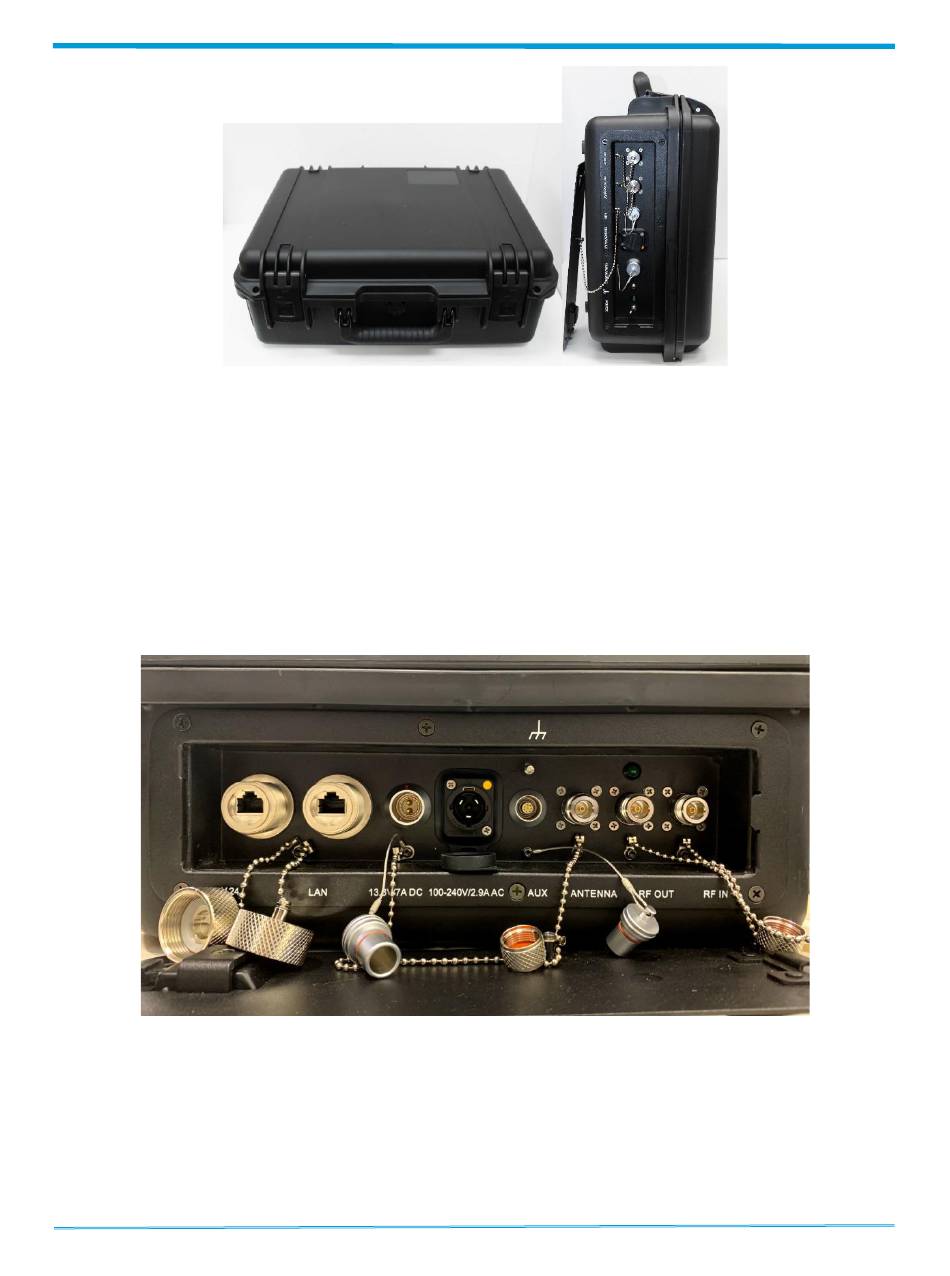

PDR8000 connects to its external environment via several connection ports. These are located
on the side and top (lid open) of the case. The external connection points are illustrated below.
Note that an LED Status indicator is included to indicate whether the PDR8000 is operating
under normal/warning/error conditions. This indicator can be disabled via configuration in the
Futurecom Repeater Configurator (FRC), as some users may want to operate in "dark mode"
with no visible power/activity indicators.
