Repeater With Infrastructure; Standalone Repeater; Figure 23: Repeater With Infrastructure Example; Figure 24: Standalone Repeater Example - Futurecom PDR8000 Manual

5.4.3 R
EPEATER WITH
Antenna
PDR8000
Wireline Interface
System Infrastructure

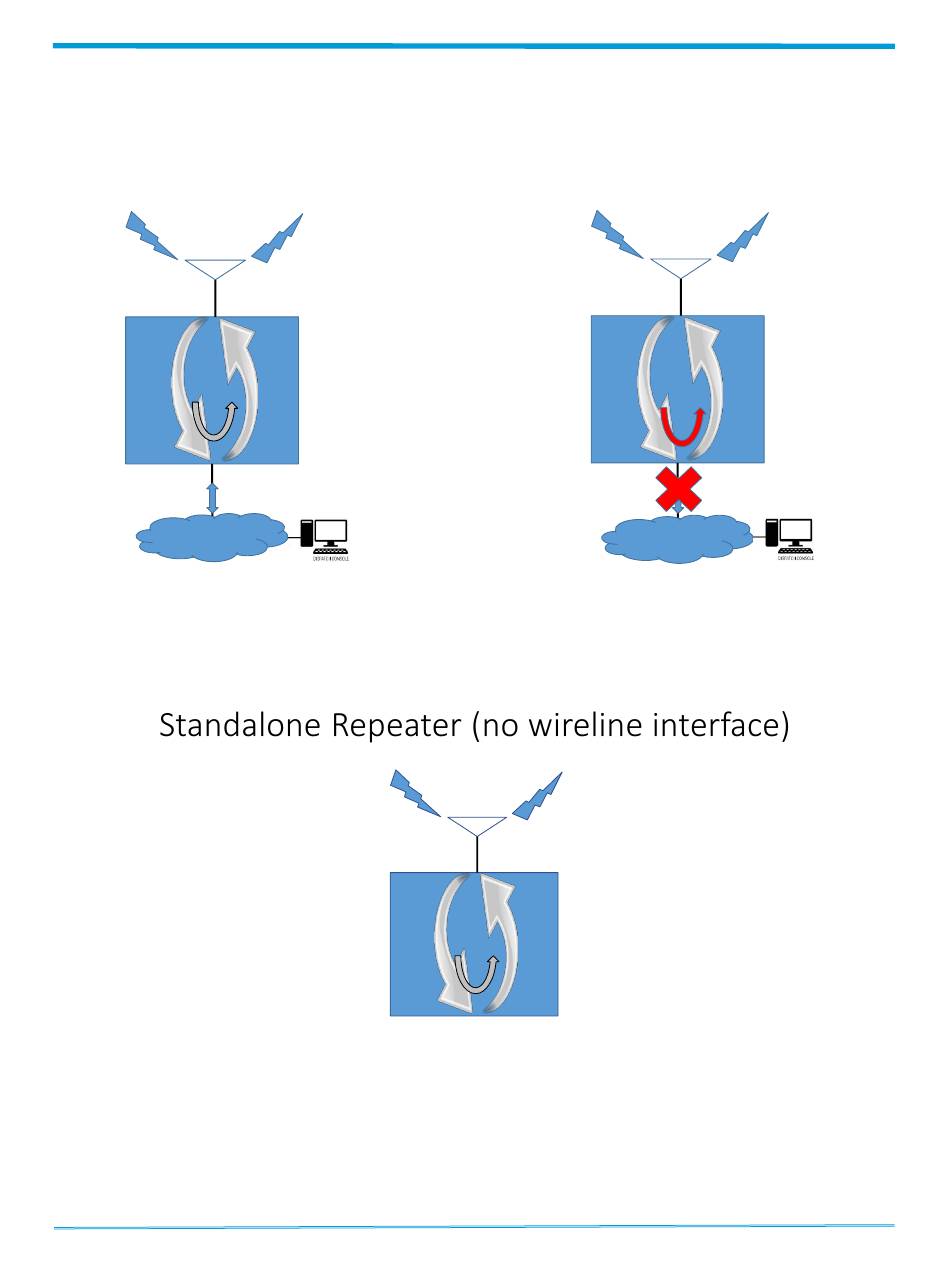

Figure 23: Repeater with Infrastructure Example

5.4.4 S
TANDALONE
• No wireline interface
• PDR8000 can transmit and
receive simultaneously
• PDR8000 always provides Local
Repeat functionality
2021-11-15
I
NFRASTRUCTURE
Repeater with wireline interface
RF Signals
• Full-Duplex wireline interface
• PDR8000 can transmit and
receive simultaneously
• PDR8000 provides Local Repeat
functionality (per configuration
or on command from console)
• Failure of wireline link can
activate automatic Fallback In-
Cabinet Repeat (to ensure Local
Repeat capability even if
temporarily disabled by console)
R
EPEATER
PDR8000

Figure 24: Standalone Repeater Example

PDR8000® Portable Digital Repeater Product Planner
PDR8000
Wireline Interface
System Infrastructure
RF Signals
Antenna
Document 8K088X02 R5.0
RF Signals
Antenna
Fallback
In-Cabinet
Repeat
