The External Battery Pack enclosure contains batteries, a battery voltage indicator and a DC
input/output connector. The Battery Pack can be used to supply DC power to a PDR8000
where an AC supply is not available.
A fully charged, new Battery Pack can power a PDR8000 (at 50% transmit duty cycle) for 5
hours and can be recharged in approximately 10 hours from a fully-discharged state.
A fully charged, new Battery Pack can power a Booster Pack (at 50% transmit duty cycle) for
4.5 hours and can be recharged in approximately 10 hours from a fully-discharged state.
An AC to DC external battery charger is used to charge the internal batteries from a 117V AC
source. (A step down transformer and an AC plug adapter (if required) are supplied for
countries with 220V to 240V AC mains.)
The Battery Pack case is black and has dimensions of 245mm (9.65") x 280mm (11.0") x
175mm (6.9").
For detailed specifications of the External Battery Pack, see section 7.4.
6.13 S
UITCASE
PDR8000 suitcase form factor is housed in a lightweight, injection molded, strong resin case
manufactured by Pelican Products, Inc. The case is provided with two hasps for padlocks and
is outfitted with a double-layered, soft-grip handle. External connections are accessed under a
removable cover on the case's side.
Case dimensions are 488 mm (19.2") x 386 mm (15.2") x 185 mm (7.3"). Cases are available in
black, yellow, or olive drab green colors.
The Booster Pack is provided in the same cases available for PDR8000. (The same
dimensions and colors apply.)
2021-11-15
/H
OUSING

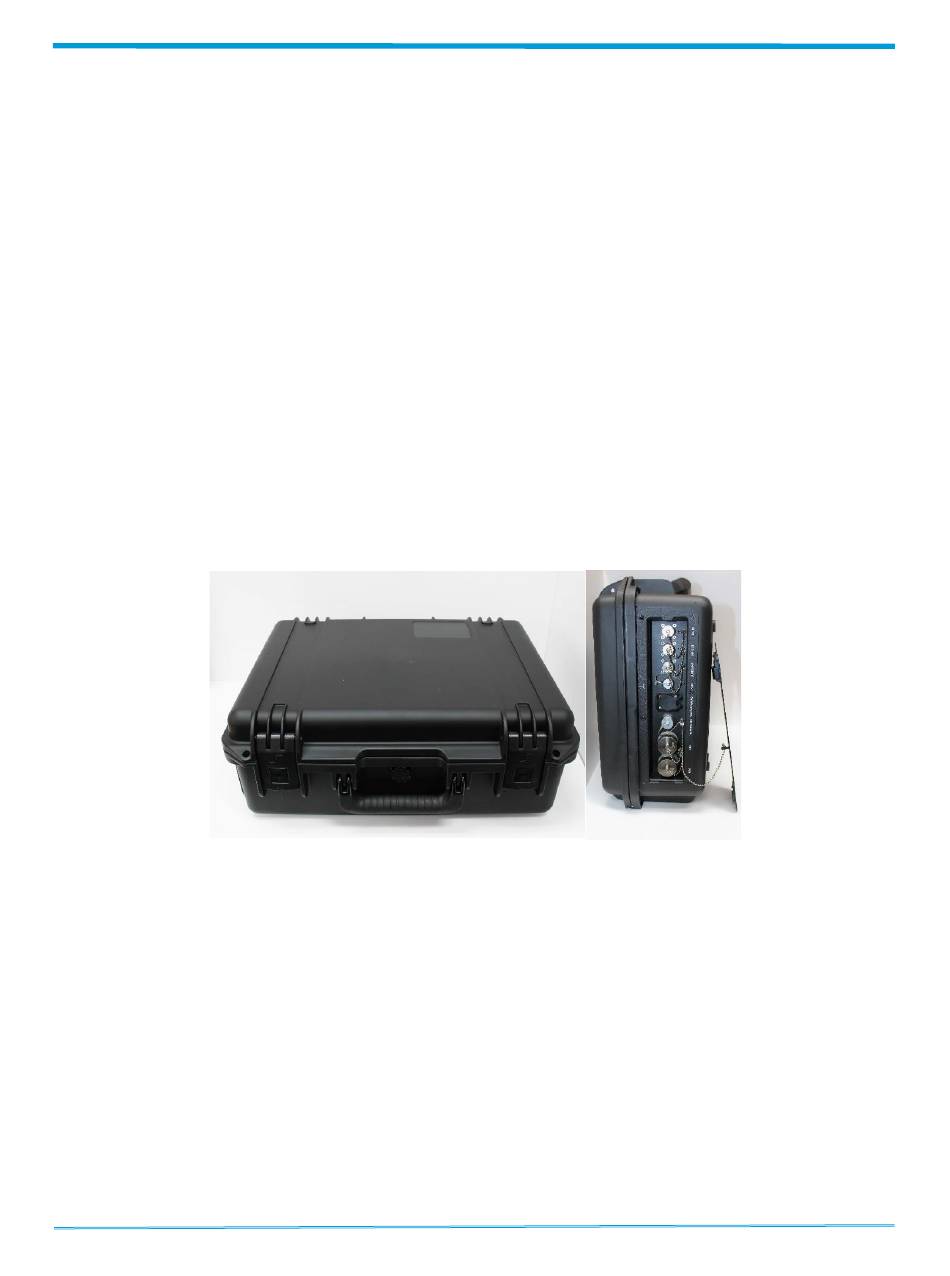

Figure 28: PDR8000 Closed Case
