PDR8000® Portable Digital Repeater Product Planner

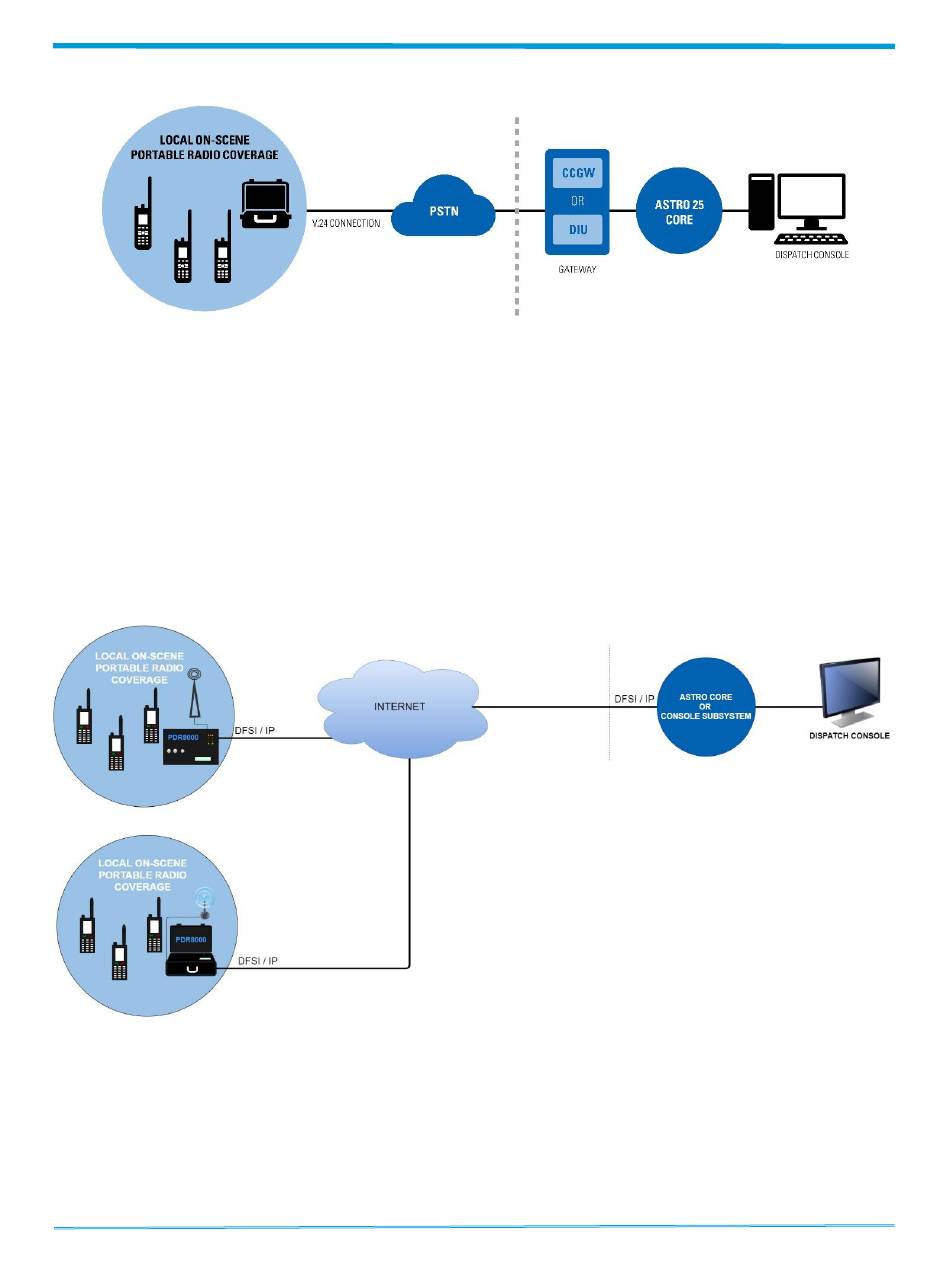

Figure 17: V.24 Wireline Repeater and Base Station Use Case
3.1.2 E
W
R
THERNET
IRELINE
EPEATER
PDR8000 can be connected to Motorola's ASTRO system or Consoles via the Ethernet Wireline
interface. Implemented on the industry standard commonly known as Digital Fixed Station
Interface (DFSI) Protocol Version 1, PDR8000 can connect to a console (either directly or via a
gateway) which supports this standard.
Details of DFSI interface are provided in section 6.4.2.
Figure 18: Ethernet Wireline Repeater and Base Station Use Case
2021-11-15
Page 19 of 64
