PDR8000® Portable Digital Repeater Product Planner
PDR8000 is also capable of providing mixed-mode operation when operating as a Standalone
Repeater. This allows repeating of non-simultaneous P25 and Analog traffic on the same
channel.

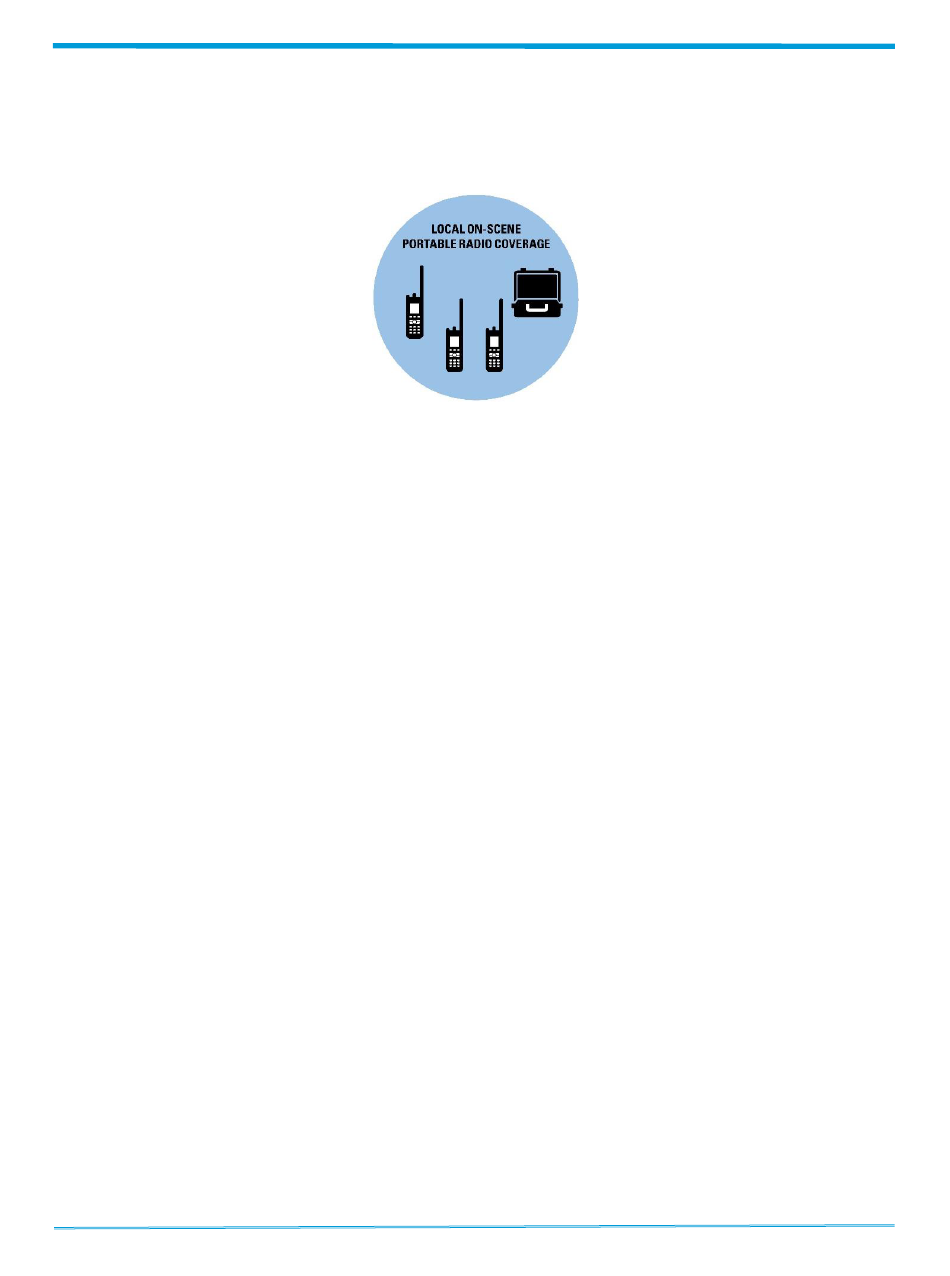

Figure 20: Standalone Repeater Use Case

3.4 W
S
R
/T
IRELINE
ATELLITE
ECEIVER
RANSMITTER
Some user deployments require handling different coverage scenarios than typically provided
by the PDR8000 Repeater configuration. Receive-only and Transmit-only capabilities are part
of the suite of configurations supported by PDR8000 to allow customers to take advantage of
these specialized solutions. These configurations are supported by PDR8000 operating in
digital/P25 mode via the V.24 wireline interface only.
PDR8000 supports operation as part of a Voting/Comparator system, which is one of the
methods used to provide an improved RF coverage solution. Voting solutions typically employ
multiple receivers and a single transmitter. In this system configuration, a PDR8000 can serve
as one of the Satellite Receivers (providing receive-only operation for a geographical area, and
allowing the comparator and a separate transmitter to provide outbound capability).
Other coverage scenarios may require one PDR8000 dedicated as a Satellite receiver, and
another PDR8000 in a different location configured as a Satellite transmitter. If PDR8000's role
in a voting system is to act as both a transmitter and receiver, it is configured as a wireline base
station, as in section 3.1.
2021-11-15
Page 21 of 64
