Input Power Options And Indications; Optional External Battery Pack; Figure 27: Optional External Battery Pack - Futurecom PDR8000 Manual

•
View Received Signal Strength (RSSI) value
•
View Firmware version numbers (for reference & troubleshooting)
•
View PDR8000 serial number
•
View Wireline Link information and Status
o LINK Status (on/off)
o LINK Quality
o DFSI Parameters (IP Address, Ports etc.)
If the PDR8000 is used in a location allowing it to be physically accessed by people who are not
desired to view/modify data via the keypad/display, a Keypad Lockout mechanism is available to
restrict access. The PDR8000 can be configured with a keypad sequence that must be entered
to unlock access to the keypad/display functions. If an access code has been configured, those
trying to access the keypad/display menus are prompted to enter the access code before being
granted access to the menus. This code is a sequence of up/down/left/right button depresses
on the keypad and is configured via the (Futurecom Repeater Configurator (FRC)). The use of
an access code is optional and may be configured as a sequence of 4-10 of key depresses, if
desired by the administrator.
6.12 I
NPUT
PDR8000 suitcase and the Booster Pack can be run on 12VDC, 120VAC, or 220VAC (for
detailed specifications see 7.4). An optional External Battery w/case is available for purchase
(see 6.12.1).
If connected to both an AC and DC power source, PDR8000 Suitcase and/or the Booster Pack
will switch between them in the event of an AC power failure, allowing uninterrupted battery
backup operation.
Rackmount PDR8000 only runs on an external 12VDC power supply.
PDR8000 provides warnings when the supply voltage deviates from acceptable limits. This
includes providing visual indications on the PDR8000 status LEDs (see 6.10). The thresholds
used to drive high/low voltage warning indications are configurable.
6.12.1 O
PTIONAL
2021-11-15
P
OWER OPTIONS AND INDICATIONS
E B
XTERNAL ATTERY

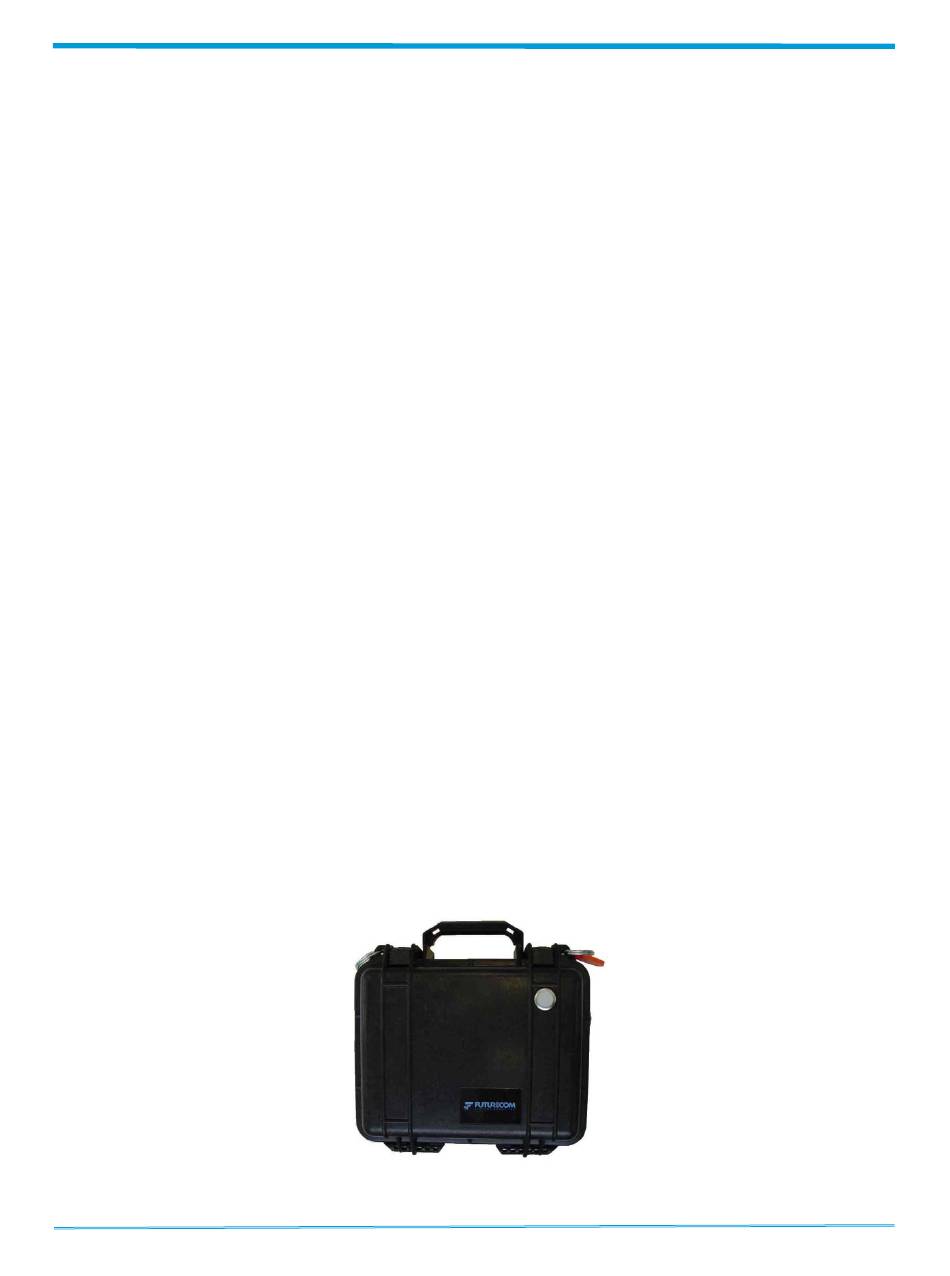

Figure 27: Optional External Battery Pack

PDR8000® Portable Digital Repeater Product Planner
P
ACK
Document 8K088X02 R5.0
