Summary of Contents for Craftex CX810N

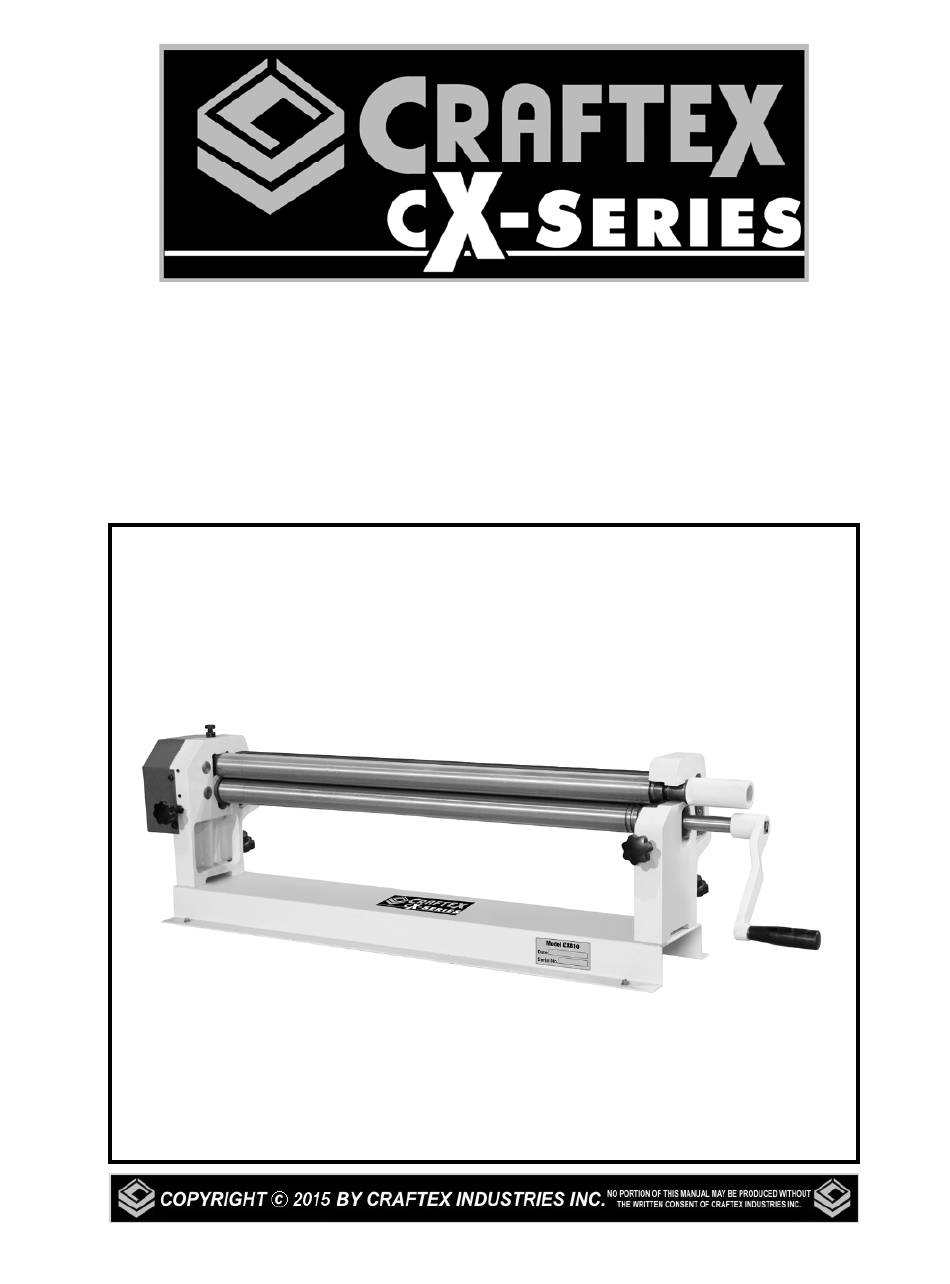

- Page 1 CX810N 50" SLIP ROLL, 16 GAUGE USER MANUAL Version 1.1...
-
Page 2: Table Of Contents
Mounting -------------------------------------------------------------------------------- 6 Basic Controls ------------------------------------------------------------------------- 7 Preparations---------------------------------------------------------------------------- 8 Flat Rolling`----------------------------------------------------------------------------- 8 Creating Bends ------------------------------------------------------------------------ 9 Bending Wires ------------------------------------------------------------------------- 9 Removing Work-piece --------------------------------------------------------------- 10 Maintenance---------------------------------------------------------------------------- 10 Lubrication ------------------------------------------------------------------------------ 10 CX810N Parts Diagram ------------------------------------------------------------- 11 CX810N Parts List -------------------------------------------------------------------- 12 Warranty--------------------------------------------------------------------------------- 13... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Extreme caution should be used when operating machines. Know your tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. Always read and understand the user Make sure that the rollers and work- manual before operating the machine. -
Page 4: Features
MODEL CX810N - 50" SLIP ROLL As part of the growing line of Craftex CX-Series, we are proud to offer the CX810N a 50” Slip Roll. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. -
Page 5: Physical Features
CX810N - 50" SLIP ROLL PHYSICAL FEATURES Upper Roller Rear Gear Bushing Roller Cover Bolt with Upper Blade Guard Lock Nut Roller Lock Knob Thickness Crank Adjustment Radius Knob Adjustment Knob... -
Page 6: Unpacking
UNPACKING ASSEMBLY The slip roll is properly packaged in a crate The CX810N comes fully assembled from for safe transportation. When unpacking, the factory and all you need is to install the carefully inspect the crate and ensure that crank and the handle. -
Page 7: Basic Controls
Read the descriptions below and get familiar with the basic controls on your "Through Mount" is the strongest mounting CX810N slip roll. option where the holes are drilled all the way through the workbench. Hex bolts, washers and hex nuts are used to secure the slip roll to the workbench. -
Page 8: Preparations
Flat rolling is done to flatten or slightly procedures to set up your slip for safe and reduce the thickness of the work-piece. The accurate efficient. CX810N has a flat rolling capacity of up to 16 gauge. To prepare the slip roll: To flat roll a work-piece: Lower the lower roller to approximately 1/4"... -
Page 9: Creating Bends
CREATING BENDS BENDING WIRES The CX810N creates radius bends in sheet The CX810N can also bend wires, rods and metal up to 16 gauge. small diameter tubing. To create a bend: To bend wires, rods or tubing: Insert the work-piece between the upper... -
Page 10: Removing Work-Piece
REMOVING WORK-PIECE MAINTENANCE To remove the cylindrical work-piece: During the life of you machine, you will need to practice some regular maintenance Loosen the upper roller bushing bolt and to keep your slip roll in peak performance lock nut securing the upper roller at the condition. -
Page 11: Cx810N Parts Diagram
CX810N PARTS DIAGRAM... -
Page 12: Cx810N Parts List
CX810N PARTS LIST PIN - SPRING 6x35 SLEEVE PART # DESCRIPTION LEFT STAND SMALL CAM SHAFT NUT - M12 KEY - FLAT 8x20 BOLT - HEX M12 X 55 BOLT - LOCKING M8x20 BUSHING LOCATING PIN BUSHING ADJUSTING HANDLE KEY - M6 X 25 WASHER - Φ12... -
Page 13: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
