Allegro 20 Disc Publishing System Service Manual
5.2

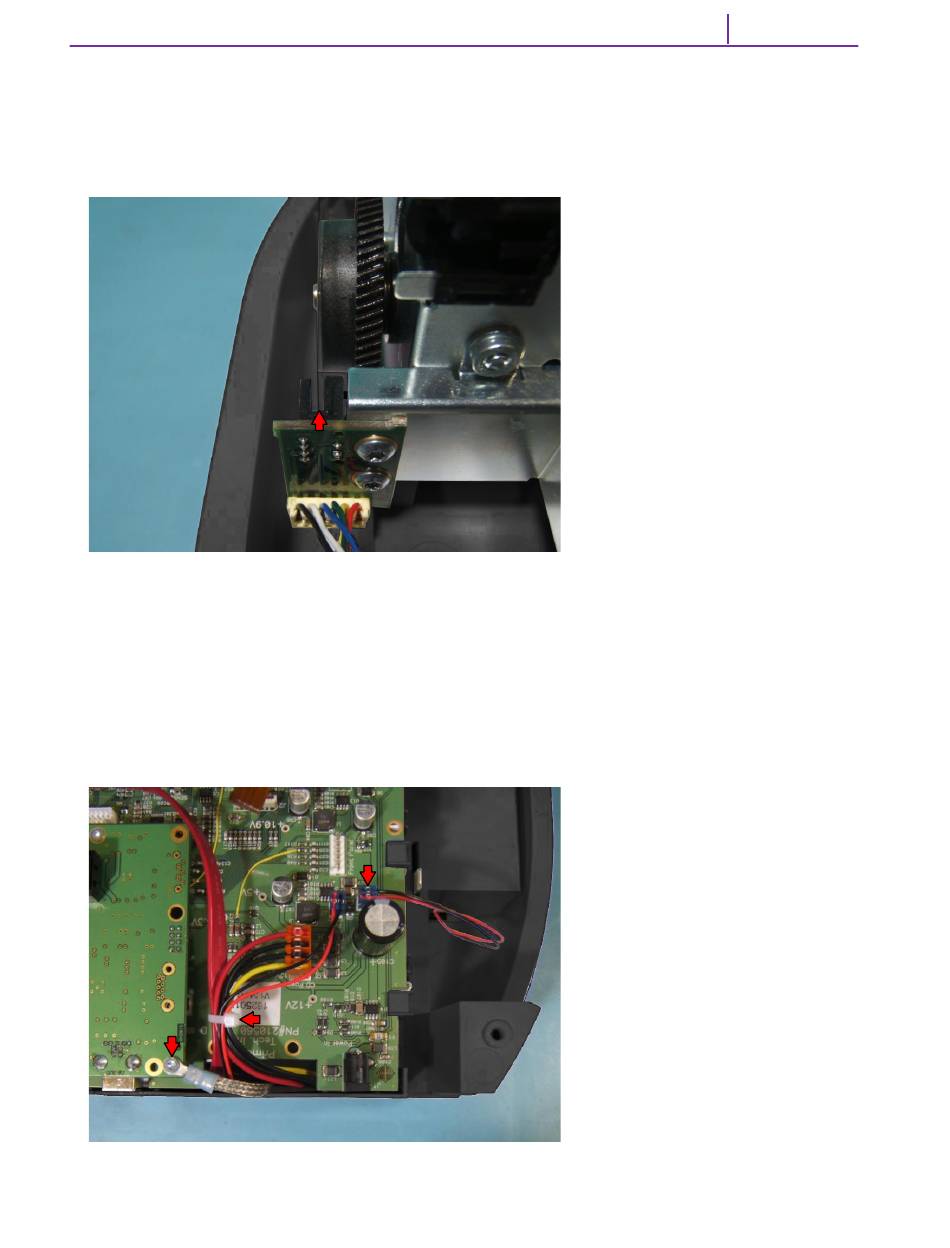

Secure new encoder wheel sensor and plug into mainboard. Be sure encoder wheel is captured
in center of sensor.

Section 6 - Drive Fan

6.1
Cut tie wrap. Unplug fan cable from mainboard. Remove ground strap from corner of USB3
hub.
Rimage Corporation Page 8
