Allegro 20 Disc Publishing System
Service Manual
Section 23 - Print Tray
23.1

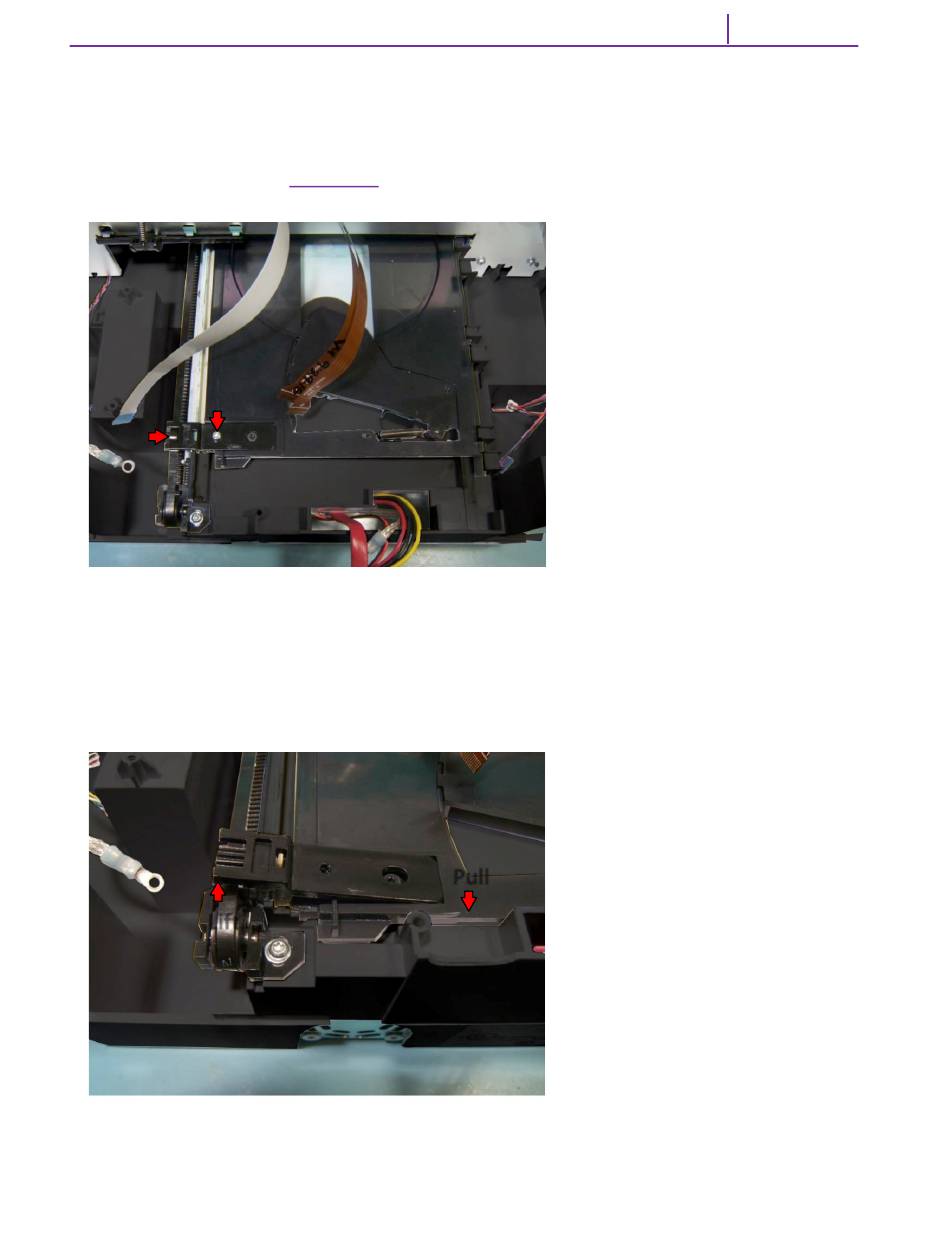

Remove mainboard (see Mainboard). Unhook belt from belt clamp bracket. Remove screw.
23.2
Pull tray completely back to align belt clamp bracket with notch in base. Lift end of bracket to
snap up off of base. Remove bracket.
Pull
Lift
Rimage Corporation
Page 41
