Allegro 20 Disc Publishing System
Service Manual
15.2

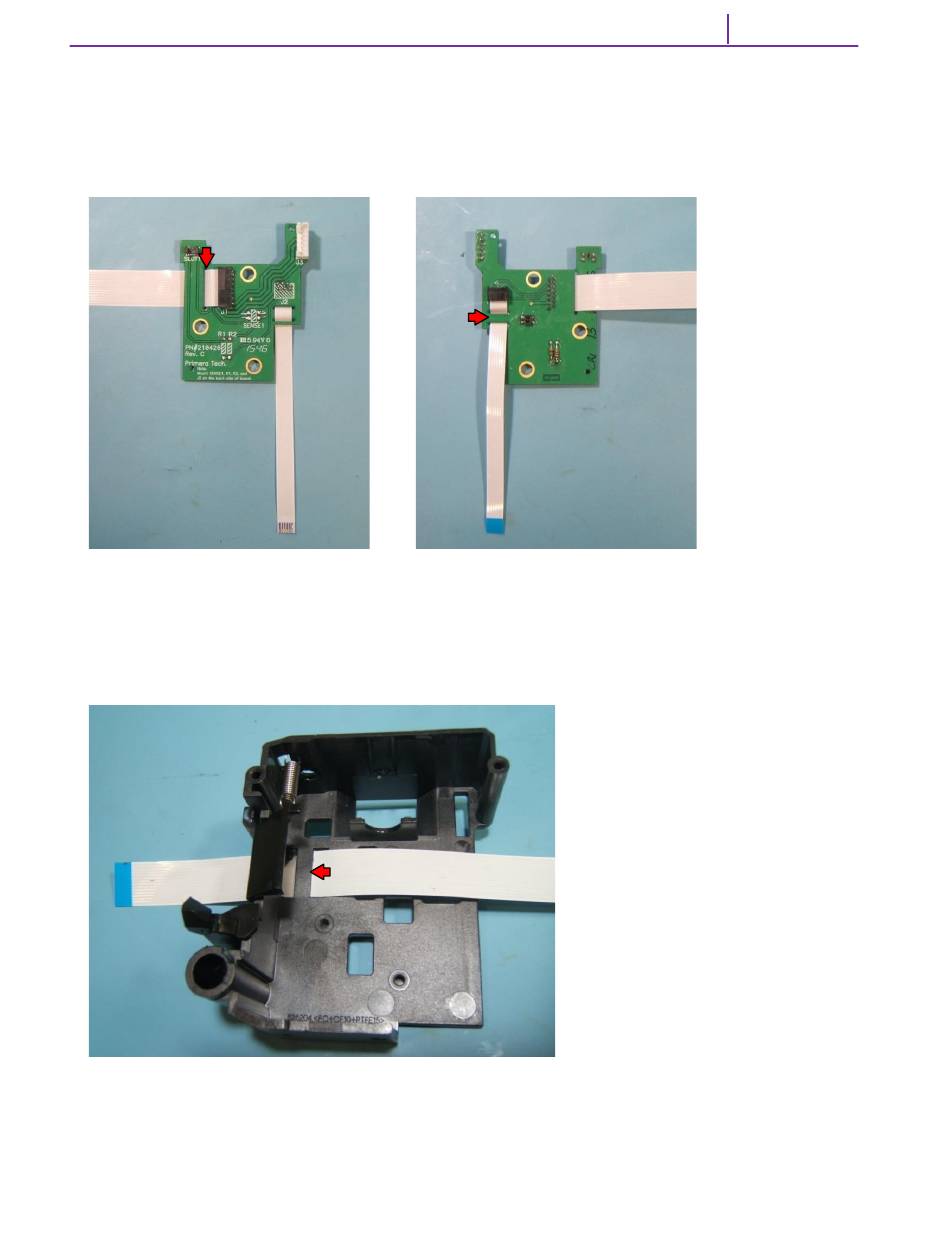

After replacing interface board and/or flex cables, route cables through slots on board, as
shown.
15.3
When replacing board, route large flex cable through slots on frame as shown.
Rimage Corporation
Page 23
