Allegro 20 Disc Publishing System
Service Manual
Section 3 - USB3 Hub

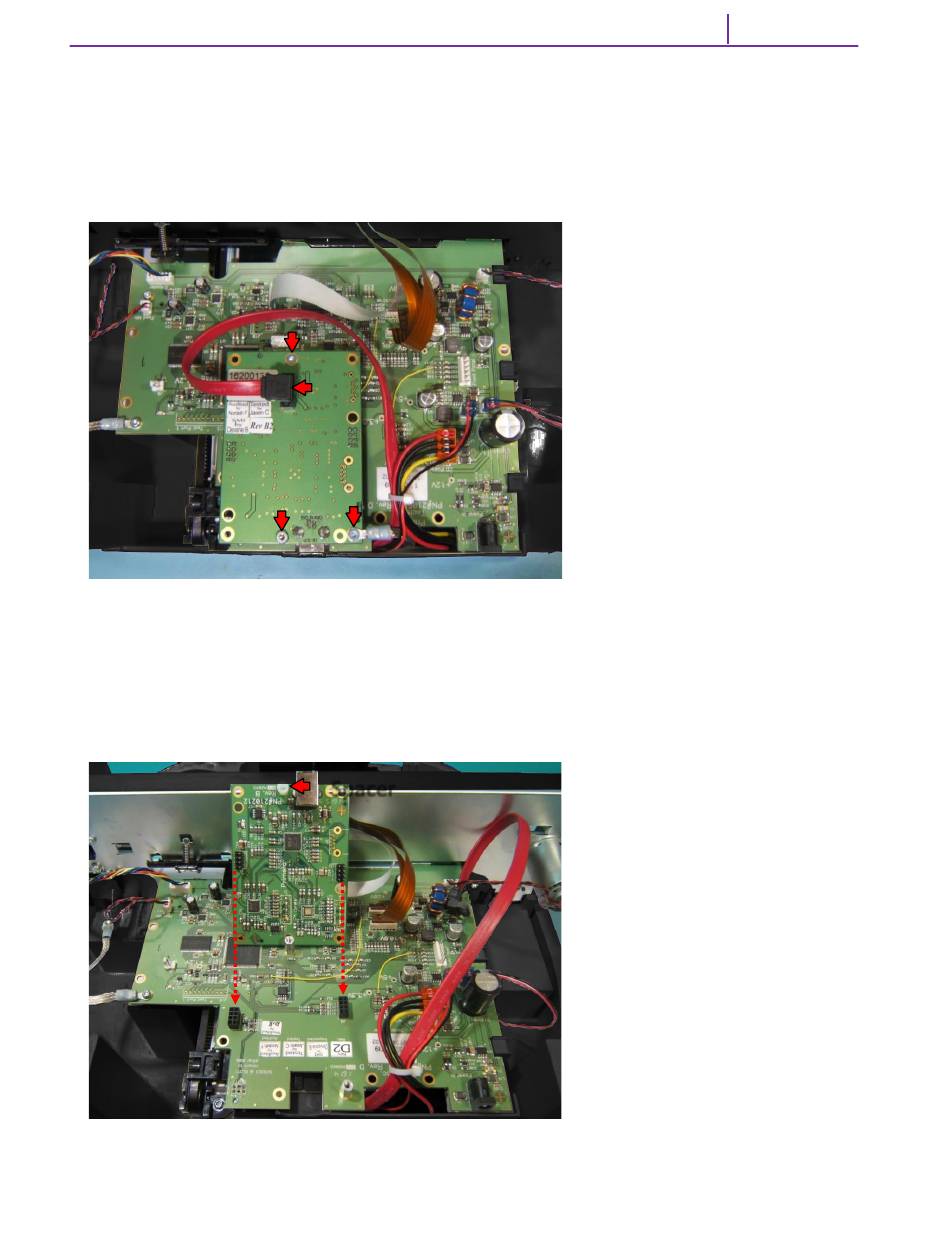

3.1
Unplug eSata cable. Remove 3 screws securing board and ground strap.
3.2
Remove spacer and snap into new USB3 hub. Replace hub, making sure pins properly plug into
connectors on mainboard. Be sure to replace ground strap. Longer screw goes through spacer.
Spacer
Rimage Corporation
Page 5
