Allegro 20 Disc Publishing System
Service Manual
17.2

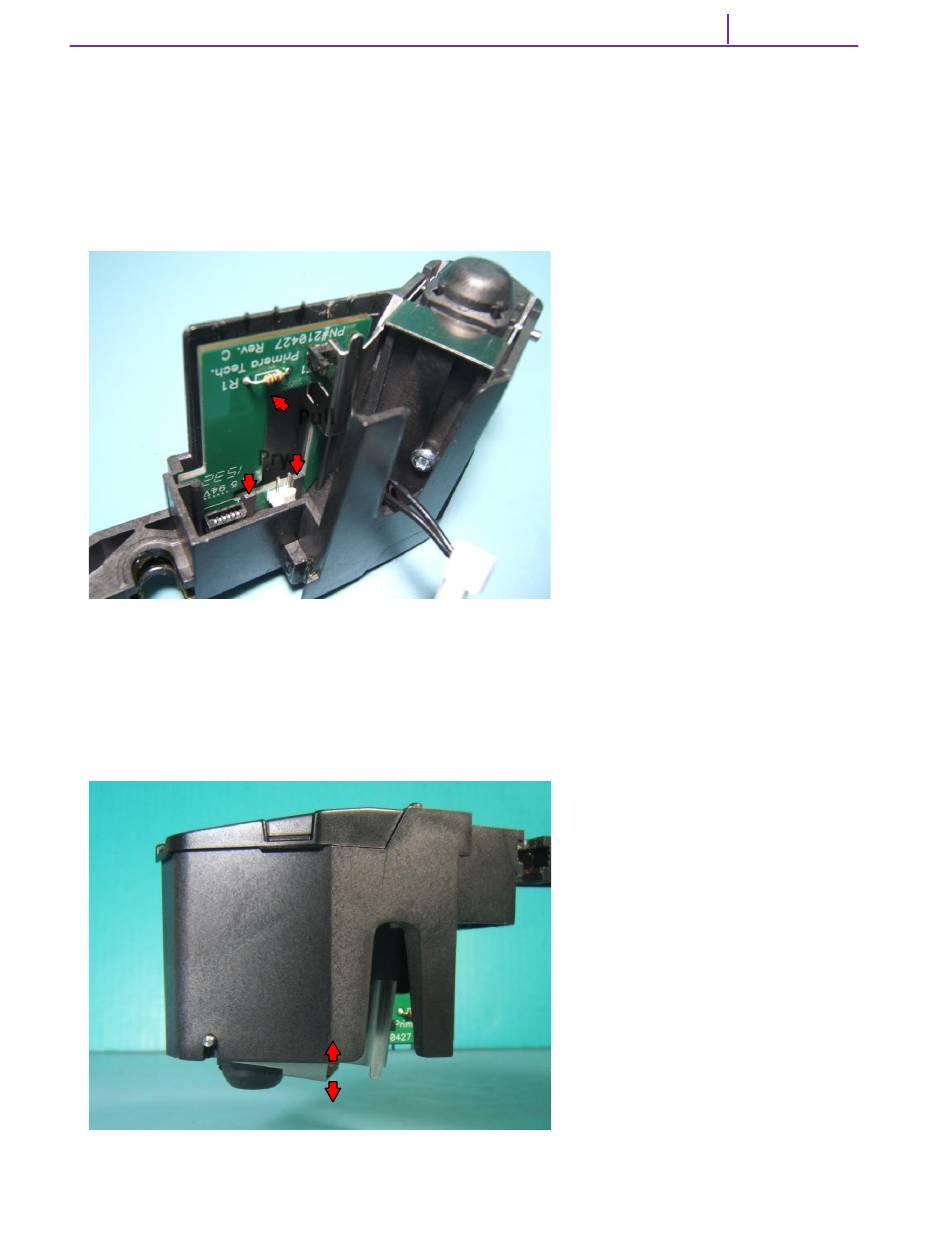

Use a flathead screwdriver to slightly pry out inside tab while pulling up and out on board.
While continuing to pull on board, slightly pry out other tab to release board. Replace picker
arm board and/or sensor flag bracket. When replacing board, press down into slot until it snaps
into both tabs.
Pull
Pry
17.3
Hold picker arm up to test sensor flag bracket. Lift flag up and verify it drops down smoothly
without sticking.
Rimage Corporation
Page 27
