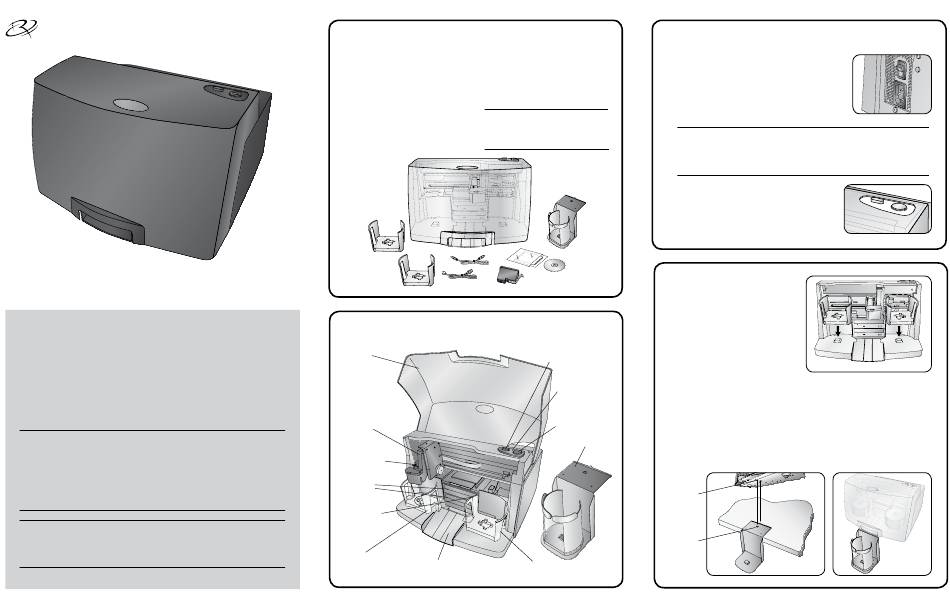

Rimage Allegro™ 100 Setup and Installation
®
Guide
Thank you for selecting the Rimage Allegro 100
disc publishing system.
Before you begin:
This document describes how to set up your Rimage Allegro™ 100 disc
publishing system. It is intended for people who are familiar with hardware
setup, software installation, and Windows operating systems. If you do not
understand the procedures in this document, ask your computer technician
for help.
Documents referenced in this procedure shipped with your system and
are also available online at www.rimage.com/support under Autoloader &
Printer Support.
Important!
• Read all setup instructions thoroughly before you begin.
• Save all packing boxes and packing materials.
• Refer to the PC Specifications document at www.rimage.com/support for
minimum PC requirements.
• Do not plug in any cables until you are instructed to do so.
Notes:
• Your system may not look exactly like the system pictured.
• You must have administrative privileges to install the Rimage Software Suite.
4001942_B
1
Unpack the accessory kit
As you unpack your system, remove any tape or cardboard restraints from the
system. The accessory kit contains:
• Allegro Setup and Installation Guide •
(this document) •
• Rimage Product Warranty/Guarantee •
• A/C cord
• USB cable
Note:
Your Allegro system may come
• All-in-one ink cartridge
with an extra power cord. Please use
• Rimage Allegro User Guide disc
the correct power cord for your region.
2

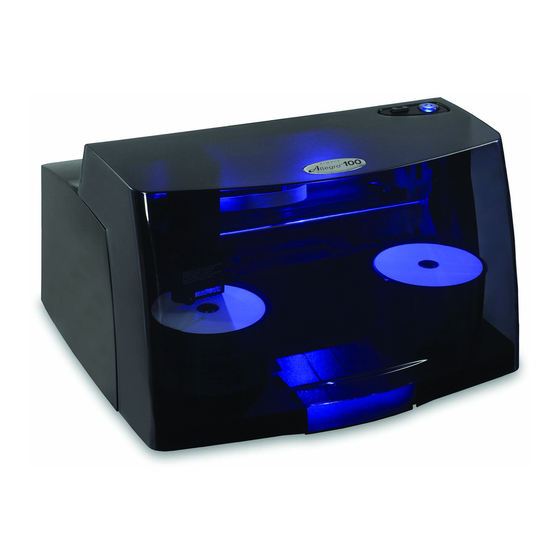

Get to know your Rimage Allegro 100
Front Cover
Front Cover
Robotic Disc
Robotic Disc
Transporter
Transporter
Ink Cartridge
Ink Cartridge
Carrier
Carrier
CD/DVD
CD/DVD
Recorders Recorders
Recorder
Recorder Tray
Tray Button
Button
Input/
Output Bin
Output Bin
Reject/Kiosk Area
Output/Reject Area
Copyright © 2017 Rimage
3
Connect the power cable and power on the system
a. Connect the power cord to the power/
input port on the back of the Allegro 100.
Rimage Software Suite disc
b. Plug the other end of the power cord into an
External output bin
electrical outlet.
Two internal bins
c. Ensure that the main power switch at the back
of the Allegro 100 system is in the "on" position.
Important!
• Do not connect the USB cable at this time.
• The outlet must be an earth-grounded outlet.
d. Press the power button on the top of the
Rimage Allegro 100 system. The power
indicator light illuminates solid blue.
e. Power on the external PC that will send
content to the Allegro 100 for output.
4
Install the bins
a. Install both bins by placing them
on the mounting pegs as shown
in Figure 1.
b. (Optional) Install external output
bin if you want to use both
Ink Cartridge
Ink Cartridge
internal bins for input.
Button Button
i.
Control Panel/ Control Panel /
ii.
Status Lights Status lights
Power
Button
Power Button
External Output
Bin and Holder
iii. Place the external output bin on the external output bin holder as
Slots
Locating
Tabs
Input Bin
Intput Bin
Attach the external output
bin holder by first allowing
the holder to hang off the edge of the table.
Align the locating tabs on the external output bin holder with the
slots located on the underside of the Allegro 100, as shown in Figure
2, and lower the Allegro 100 carefully into place onto the external
output bin holder. Notice that the slots allow for adjusting the
position of the external output bin holder. If your discs are not falling
into the bin, you will be able to move the holder slightly to align it.
shown in Figure 3.
Figure 2
Figure 1
Figure 3
