Function Diagram - ADLINK Technology Express-HR User Manual

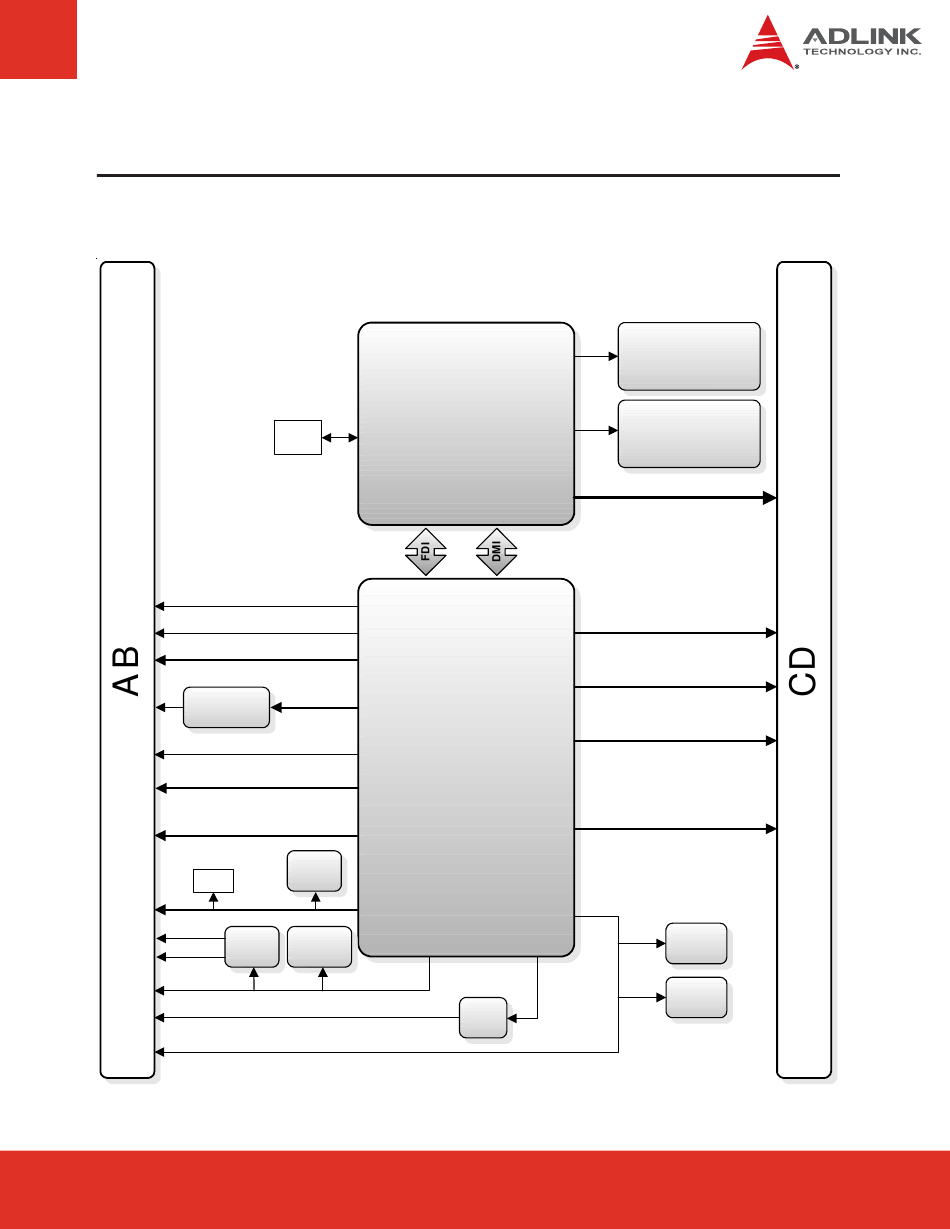

3 Function Diagram

VGA
Dual channel 24-bit LVDS
6x PCIe x1
(port 0~5)
GbE LAN
82579
HDA Audio
2x SATA 3 Gb/s (channel 0/1)
2x SATA 2 Gb/s (channel 2/3)
8x USB 2.0 (channel 0/7)
Debug
header
LPC bus
4x GPI
GPIO
4x GP0
PCA9535
SMBus
2
I C
SPI
Express-HR User's Manual
Express-IA533 User's Manual Express-IA533 User's Manual Express-HR User's Manual
Processor
XDP i7 / i5 / i3
SFF26
Quad & Dual Core
PCIe x1
(port 7)
PCH
QM67
TPM
SLB9635
Monitor
ADT7490
SODIMM 2
1066/1333 MHz
1~8 GB DDR3
SODIMM 2
1066/1333 MHz
1~8 GB DDR3
PCI Express x16 (Gen2)
2 x8 or 1 x8 + 2 x4
DP / HDMI / DVI / SDVO
DP / HDMI / DVI
DP / HDMI / DVI / eDP
PCIe x1
(port 6)
BC
DDI 1
DDI 2
DDI 3
SPI 1
BIOS
SPI 2
BIOS
Page 13
Page 13 Page 13 Page 13
