Summary of Contents for ADLINK Technology Express-GFC

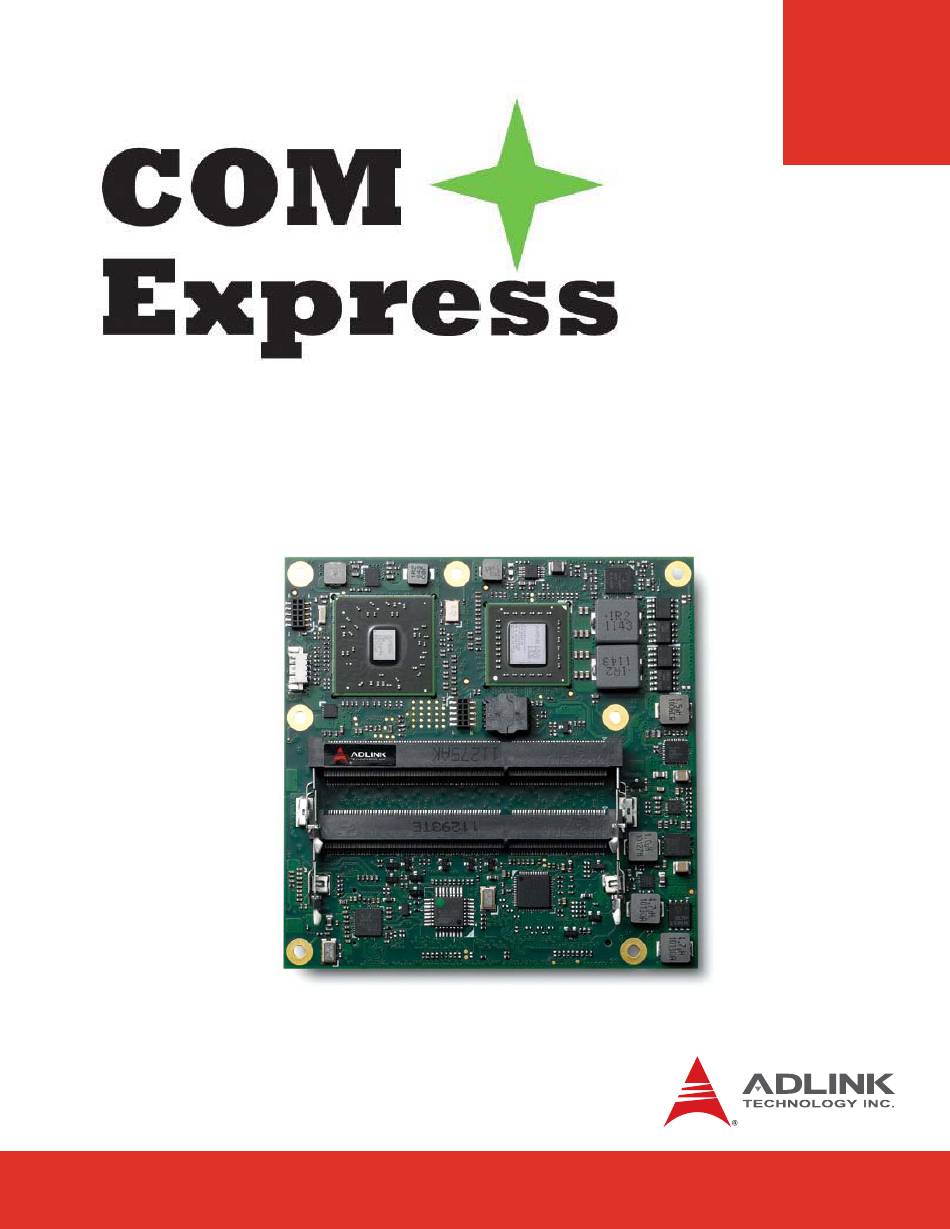

- Page 1 Express-GFC User’s Manual Manual Revision: 2.00 Revision Date: September 27, 2013 Part Number: 50-1J042-1000 This datasheet has been downloaded from http://www.digchip.com at this page...
-
Page 2: Revision History
Revision History Release Date Change 2.00 September 27, 2013 Initial release Page 2 Express-GFC User’s Manual... -
Page 3: Table Of Contents
Carrier Board Design Guide ....................15 Pin Definitions ........................16 Signal Descriptions ......................18 Onboard Fan Connector....................26 6 Module Connectors and Switches ................. 27 Onboard Fan Connector....................27 Express-GFC User’s Manual Page 3 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 3... - Page 4 9 BIOS Setup Utility ....................36 Starting the BIOS........................ 36 Main Setup ......................... 41 Advanced Setup......................... 43 Boot Setup .......................... 59 Security Setup ........................61 Save & Exit ......................... 62 Important Safety Instructions ..................64 Getting Service ......................66 Page 4 Express-GFC User’s Manual...
-
Page 5: Preface
Preface Copyright 2013 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 6 Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task. Information to prevent serious physical injury, component damage, data loss, and/or program corruption when trying to complete a specific task. Page 6 Express-GFC User’s Manual...
-
Page 7: Introduction
Blu-ray 3D via MVC and 120Hz stereo 3D support. The Express-GFC has dual stacked SODIMM sockets for up to 8 GB DDR3 single channel non-ECC memory. With up to six free PCIe x1 lances in total, four lanes from the A50M can be optional configure to one PCIe x4. -
Page 8: Specifications
On Processor / Chipset: - 6 PCI Express x1: 0/1/2/3/4/5 are free (0,1,2,3 optional 1 x4), lane 6 is occupied by GbE LAN and lane 7 occupied by USB 3.0 controller LPC bus, SMBus (system), I C (user) Page 8 Express-GFC User’s Manual... -
Page 9: Video
Interface: 10/100/1000 Mbps Ethernet 2.6 Multi I/O SATA: Supports four SATA ports at 6 Gb/s USB: Supports up to six ports USB 2.0 (USB2/3/4/5/6/7) and two ports USB 3.0 (USB0/1) Express-GFC User’s Manual Page 9 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 10: Tpm (Trusted Platform Module) Optional
Wide Voltage Input: ATX = 8.5~20 V / 5Vsb ±5% or AT = 8.5 ~20V Power Management: ACPI 3.0 compliant, Smart battery support. Power States: supporting S0, S1, S3, S4, S5 Smart Battery Support: yes Page 10 Express-GFC User’s Manual... -
Page 11: Power Consumption
Idle (WinXP Login) N.S. Max. Load (WinXP Burnin) 0.95 N.S. 11.20 S3 (suspend to RAM) 0.12 S5 (soft off) 0.09 0.45 Express-GFC User’s Manual Page 11 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 11 Page 11 Page 11... -
Page 12: Operating Systems
Form Factor: PICMG COM.0 R2, COM Express Compact form factor ™ Type: PICMG COM.0 R2.1, COM Express Type 6 pinout ™ Dimensions: 95 x 95 mm Standard Operating Temperature: 0°C to 60°C Relative Humidity: up to 90% at 60°C Page 12 Express-GFC User’s Manual... -
Page 13: Function Diagram
HDA Audio Debug A50M SLB9635 Header LPC bus 4x GPI SPI BIOS 4x GP0 header Control Monitor FAN control ADT7490 SMBus Express-GFC User’s Manual Page 13 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 13 Page 13 Page 13... -
Page 14: Mechanical Dimensions
4 Mechanical Dimensions connector on bottom side TOP VIEW SIDE VIEW AII Ø tolerances ± 0.05mm Other tolerances ± 0.2mm Page 14 Express-GFC User’s Manual... -
Page 15: Picmg Pinout And Signal Descriptions
COM Express-based system. You can download the document Carrier Design Guide at: http://www.adlinktech.com/ccps/picmg_comdg_100.pdf Express-GFC User’s Manual Page 15 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 16: Pin Definitions
RSVD EXCD0_CPPE# SYS_RESET# DDI3_PAIR3+ (DDI2_PAIR3+) LPC_SERIRQ CB_RESET# DDI3_PAIR3- (DDI2_PAIR3-) NOTE Strikethrough pin names indicates that the signal is not supported on this module. DDI2 signals can be supported by BOM option (loosing the LVDS functionallity) Page 16 Express-GFC User’s Manual... - Page 17 NOTE Strikethrough pin names indicates that the signal is not supported on this module. DDI2 signals can be supported by BOM option (loosing the LVDS functionallity) Express-GFC User’s Manual Page 17 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual...
-
Page 18: Signal Descriptions
PCI Express 5 Transmit + O - DP PCIE5_TX- PCI Express 5 Transmit - O - DP GPI0 General Purpose Input 0 I-3.3 PU 10k 3.3V PCIE4_TX+ PCI Express 4 Transmit + O - DP Page 18 Express-GFC User’s Manual... - Page 19 Power 12V VCC_12V A106 Power 12V A107 VCC_12V Power 12V A108 VCC_12V Power 12V VCC_12V A109 Power 12V A110 Ground Express-GFC User’s Manual Page 19 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 19 Page 19 Page 19...
- Page 20 O-3.3 Ground PCIE5_RX+ PCI Express 5 Recieve + I - DP PCIE5_RX- PCI Express 5 Receive - I - DP General Purpose Output 1 O-3.3 GPO1 PCIE4_RX+ PCI Express 4 Recieve + I - DP Page 20 Express-GFC User’s Manual...
- Page 21 Power 12V B106 VCC_12V Power 12V B107 VCC_12V Power 12V B108 VCC_12V Power 12V B109 Power 12V VCC_12V B110 Ground Express-GFC User’s Manual Page 21 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 21 Page 21 Page 21...
- Page 22 DP3_LANE2- / TMDS3_DATA0- RSVD DDI3_PAIR3+ DP3_LANE3+ / TMDS3_CLK+ DDI3_PAIR2- DP3_LANE3- / TMDS3_CLK- Ground PEG_RX0+ PCIe 0 Recieve + PEG_RX0- PCIe 0 Recieve - TYPE0# not connected Module type I D pin 0 PEG_RX1+ PCIe 1 Recieve + Page 22 Express-GFC User’s Manual...
- Page 23 Power 12V C106 VCC_12V Power 12V C107 VCC_12V Power 12V VCC_12V C108 Power 12V C109 VCC_12V Power 12V C110 Ground Express-GFC User’s Manual Page 23 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 23 Page 23 Page 23...
- Page 24 DP2_LANE3- / TMDS2_CLK- O - DP OEM opt ion Ground PEG_TX0+ PCIe 0 Transmit + PEG_TX0- PCIe 0 Transmit - PEG_LANE_RV# not support ed PCIe Lane Reversal PEG_TX1+ PCIe 1 Transmit + not support ed Page 24 Express-GFC User’s Manual...
- Page 25 Power 12V D106 VCC_12V Power 12V D107 VCC_12V Power 12V VCC_12V D108 Power 12V D109 VCC_12V Power 12V D110 Ground Express-GFC User’s Manual Page 25 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 25 Page 25 Page 25...
-
Page 26: Onboard Fan Connector
Pull Up Resistor Pull Down Resistor Not Connected / Reserved 5.5 Onboard Fan Connector The Express-GFC has an onboard fan connector (FAN1: 3-pin 1.25 mm Wafer) on the underside of the board, next to the SODIMM socket. FAN1: 12V Fan Power Signal... -
Page 27: Module Connectors And Switches
6 Module Connectors and Switches 6.1 Onboard Fan Connector The Express-GFC has an onboard fan connector (FAN1: 4-pin 1.25 mm Wafer) on the topside of the board, close to the CPU. The PWM / TAG signals on the 4-pin connector are shared with the AB pins PWM and TAG signals leading to the carrier board. -
Page 28: Embedded Functions
The AIDI library includes a demo program to demonstrate the library’s functionallity. Watchdog Timer The Express-GFC implements a Watchdog timer that can be used to automatically detect software execution problems or system hangs and reset the board if necessary. The Watchdog timer consists of a counter that counts down from an initial value to zero. -
Page 29: Gpio
COM Express board-to-board connector. For boards that support multi- direction the “SetDirection” button can configure the port for either GPI or GPO Express-GFC User’s Manual Page 29 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 29... -
Page 30: Hardware Monitoring
On the Express-GFC the following monitored values can be read from the module: CPU temperature, system temperature, Vcore, 1.8V, 5V, 3.3V and 12V. -
Page 31: System Resources
System Resource Comment 8-bits Open 8-bits Open 8-bits Open 8-bits Open Reserved - cascade channel 16-bits Open 16-bits Open 16-bits Open Express-GFC User’s Manual Page 31 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 31 Page 31 Page 31... -
Page 32: Legacy I/O Map
Read: PCI and Master abort. (Note 1) Write: FERR#/ IGNNE# /Interrupt controller SIO_PME_BASE_ADDRESS 2F8-2FF Serial port 2 3F8-3FF Serial port 1 4D0 and 4D1 Interrupt controller SMBUS IO base Reset Control register (8 bit I/O) Page 32 Express-GFC User’s Manual... -
Page 33: Interrupt Request (Irq) Lines
Note (1) HDA controller, AMD PCI-to-PCI Bridge#1 ATI PCI-to-PCI Bridge#1/2/3/4 EHCI USB Controller#0/1/2 AMD PCI-to-PCI Bridge#3,OHCI USB Controller#0/1/2 HDA controller, AMD PCI-to-PCI Bridge#4 Express-GFC User’s Manual Page 33 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 33 Page 33... -
Page 34: Pci Configuration Space Map
ATI EHCI Controller#2 AMD Host Bridge#0 AMD Host Bridge#1 AMD Host Bridge#2 AMD Host Bridge#3 AMD Host Bridge#4 AMD Host Bridge#5 AMD Host Bridge#6 AMD Host Bridge#7 Internal RealTek Ethernet Controller Internal NEC USB Controller Page 34 Express-GFC User’s Manual... -
Page 35: Pci Interrupt Routing Map
INTB INTC INTD INTA INTB INTC INTD INTA INTC INTC INTD INTA INTB INTC INTD INTA INTB INTD INTD INTA INTB INTC INTD INTA INTB INTC Express-GFC User’s Manual Page 35 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 36: Bios Setup Utility
Power menus. In most cases, the < Delete > key is used to invoke the setup screen. There are several cases that use other keys, such as < F1 >, < F2 >, and so on. Page 36 Express-GFC User’s Manual... -
Page 37: Main Setup Menu
The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Express-GFC User’s Manual Page 37 Express-IA533 User’s Manual Express-IA533 User’s Manual... - Page 38 Plus/Minus The Plus and Minus < Arrow > keys allow you to change the field value of a particular setup item. For example: Date and Time. The < Tab > key allows you to select setup fields. Page 38 Express-GFC User’s Manual...
- Page 39 Press the < Enter > key to load optimized defaults. You can also use the <Arrow> key to select Cancel and then press the < Enter > key to abort this function and return to the previous screen. Express-GFC User’s Manual Page 39 Express-IA533 User’s Manual Express-IA533 User’s Manual...
- Page 40 Press the < Enter > key to discard changes and exit. You can also use the < Arrow > key to select Cancel and then press the < Enter > key to abort this function and return to the previous screen. Page 40 Express-GFC User’s Manual...
-
Page 41: Main Setup
< Arrow > keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format. The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00. Express-GFC User’s Manual Page 41 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 42: Module Information
Serial number of this module. Hardware Rev. Display the reversion of hardware. LAN MAC ID Display the MAC ID. Boot Counter Display the boot counter from manufacture. Running Time Display the running time from manufacture. Page 42 Express-GFC User’s Manual... -
Page 43: Advanced Setup
9.3 Advanced Setup Setting incorrect or conflicting values in Advanced BIOS Setup may cause system malfunctions. 9.3.1 Processor Configuration Express-GFC User’s Manual Page 43 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 43 Page 43 Page 43... -
Page 44: Virtualization Technology
Choose the highest P-State that the system supports. NX Mode Enable or disable the No-Execute page protection function. Virtualization Technology Enable or disable CPU Virtualization. C6 Support Enable or disable C6 support to allow CPU power savings. Page 44 Express-GFC User’s Manual... -
Page 45: Acpi Settings
S3 only (Suspend): Suspend to RAM - Under this setting the system enters a low power state instead of being completely shut off. This allows the computer system to boot up in a few seconds. Express-GFC User’s Manual Page 45 Express-IA533 User’s Manual Express-IA533 User’s Manual... -
Page 46: Graphics Configuration
Restore AC Power Loss Select AC power state when power is re-applied after a power failure. 9.3.3 Graphics Configuration Primary Video Device Selects the primary video device. Page 46 Express-GFC User’s Manual... - Page 47 Choose the PWM source from either the internal graphics device (IGD) or the board controller (BC). LVDS Resolution Control Set the resolution for LVDS. LVDS Backlight Setting Set the backlight brightness of the LVDS display. Express-GFC User’s Manual Page 47 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 47...
-
Page 48: Chipset Configuration
Choose to enable or disable the HD audio device. I2C Speed Control Select the I2C speed to 100, 200 or 400 KHz. DDR 1.35V mode enable Choose to enable or disable support for DDR 1.35V. Page 48 Express-GFC User’s Manual... -
Page 49: Pci Latency Timer
PCI Common Settings PCI Latency Timer Set the value to be programmed into the PCI Latency Timer Register. VGA Palette Snoop Enable or disable VGA Palette Register Snooping. Express-GFC User’s Manual Page 49 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... - Page 50 GPP Port Link Configuration Setting. PCI Express Root Port 0/1/2/3/4/5 PCI Express Root Port Enable or disable the root port. Configure PCIe Speed Set the PCIe Speed to Auto, Gen1 or Gen2. HotPlug Enable or disable the hotplug function. Page 50 Express-GFC User’s Manual...
-
Page 51: Hdd Configuration
Enable or disable Serial ATA. SATA Mode Selection Set the SATA mode to IDE or AHCI. SATA Port 1/2/3/4 Enable or disable SATA port 1/2/3/4. Express-GFC User’s Manual Page 51 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 51... -
Page 52: Usb Configuration
USB mass storage device Start Unit command timeout. Options: 10, 20, 30, 40 sec. Controller Timeout The time-out value for Control ,Bulk and Interrupt transfers. Device Power-up Delay Sets USB device power-up delay to Auto or Manual. Page 52 Express-GFC User’s Manual... -
Page 53: Super Io Configuration
Super IO Configuration Serial Port 1/2 Configuration Serial Port Enable or disable the serial port. Device Settings Displays IO port and IRQ of the device. Express-GFC User’s Manual Page 53 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual Page 53... - Page 54 9.4.9 RTC Wake Configuration Wake System At Fixed Enable or disable the System Wake on Alarm event. When enabled, the system will wake at the hr:min:sec specified Page 54 Express-GFC User’s Manual...
-
Page 55: Trusted Computing
9.4.10 Trusted Computing Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Express-GFC User’s Manual Page 55 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 56: Serial Port Console Redirection
9.4.11 Serial Port Console Redirection Console Redirection Options are Enabled/Disabled. Console Redirection Settings The settings specify how the host computer and the remote computer will exchange data. Both computers should have the same or compatible settings. Page 56 Express-GFC User’s Manual... - Page 57 Allows the user to enable/disable Resolution 100x31. Legacy OS Redirection Allows the user to set Legacy OS Redirection. Options: 80x24, 80x25. Putty KeyPad Select Function Key and KeyPad on Putty. Express-GFC User’s Manual Page 57 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual...
- Page 58 9.4.12 Hardware Health Monitor Smart Fan Mode Configuration Fan1/2 Smart Fan Mode Choose manual mode or auto mode controlled by the module or ADT7490. Page 58 Express-GFC User’s Manual...
-
Page 59: Boot Setup
Quiet Boot Disabled - Set this value to allow the computer system to display the POST messages. Enabled - Set this value to allow the computer system to display the OEM logo. Express-GFC User’s Manual Page 59 Express-IA533 User’s Manual Express-IA533 User’s Manual... -
Page 60: Gatea20 Active
This option sets the priorities of the boot options. The user can change the priorities by selecting the particular boot option. The device selected in Boot option #1 will be the first priority, followed by second, third and so on. Page 60 Express-GFC User’s Manual... -
Page 61: Security Setup
Use this option to set a password for administrators with full control of the BIOS setup utility. User Password Use this option to set a password for users with limited access to the BIOS setup utility. Express-GFC User’s Manual Page 61 Express-IA533 User’s Manual Express-IA533 User’s Manual... -
Page 62: Save & Exit
Select this option to quit Setup without saving changes to the system configuration and continue booting. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Page 62 Express-GFC User’s Manual... -
Page 63: Discard Changes
Restore standard default values for all the setup options. Save as User Defaults Save the changes made so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Express-GFC User’s Manual Page 63 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual... -
Page 64: Important Safety Instructions
Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Page 64 Express-GFC User’s Manual... - Page 65 - It is not functioning or does not function according to the user’s manual; - It has been dropped and/or damaged; and/or, - It has an obvious sign of breakage. Express-GFC User’s Manual Page 65 Express-IA533 User’s Manual Express-IA533 User’s Manual Express-HR User’s Manual...
-
Page 66: Getting Service
5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:... - Page 67 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: 1st Floor, #50-56 (Between 16th/17th Cross) Margosa Plaza, Margosa Main Road, Malleswaram, Bangalore-560055, India Tel: +91-80-65605817, +91-80-42246107 Fax: +91-80-23464606 Email: india@adlinktech.com...
