b. Safety beveling axis adjustment
Front
Add (-) value
c. Grooving axis adjustment
d. Polishing axis adjustment

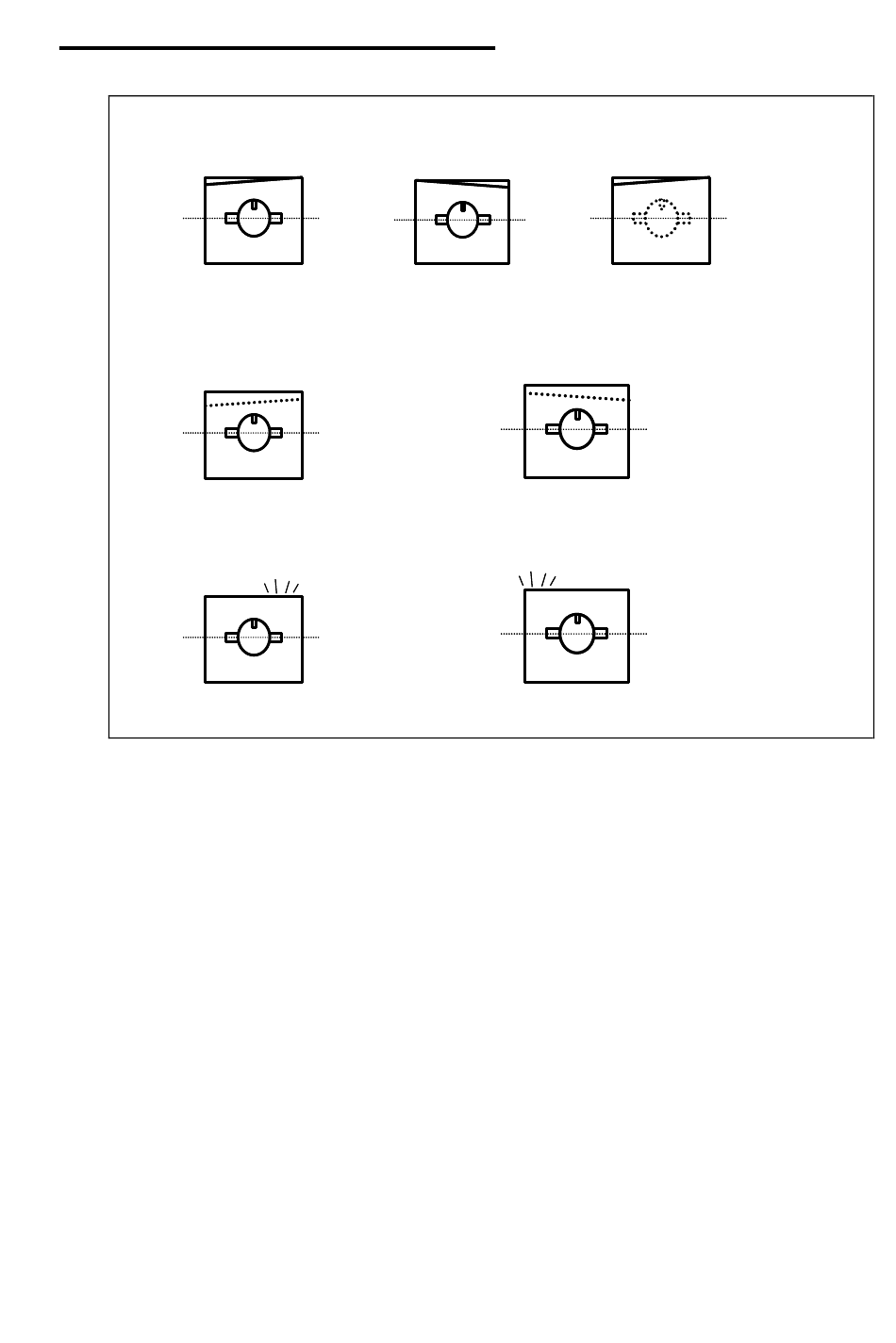

6.3.4 Bevel Adjustment

These values are used for adjusting bevel position
• Test Pattern
- Execute the Circle pattern (Ø 50) with the beveled position 50%.
• Test Cases
- Make the circle pattern with polishing and the circle pattern without polishing
respectively.
• Adjustment
- Change the value within the tolerance
Front
Add (+) value
Add (-) value
Add (-) value
Excelon XD/XQ Operator's Manual
Rear
Add (+) value
Add (+) value
Add (+) value
± 0.1mm.
±
