6.3.10.4 Drill Tip Axis Adjustment
Load "Drill Tip Angle Adj" data in the Job menu and then start processing.
①,②
③,④
⑤,⑥
⑦,⑧
⑨,⑩

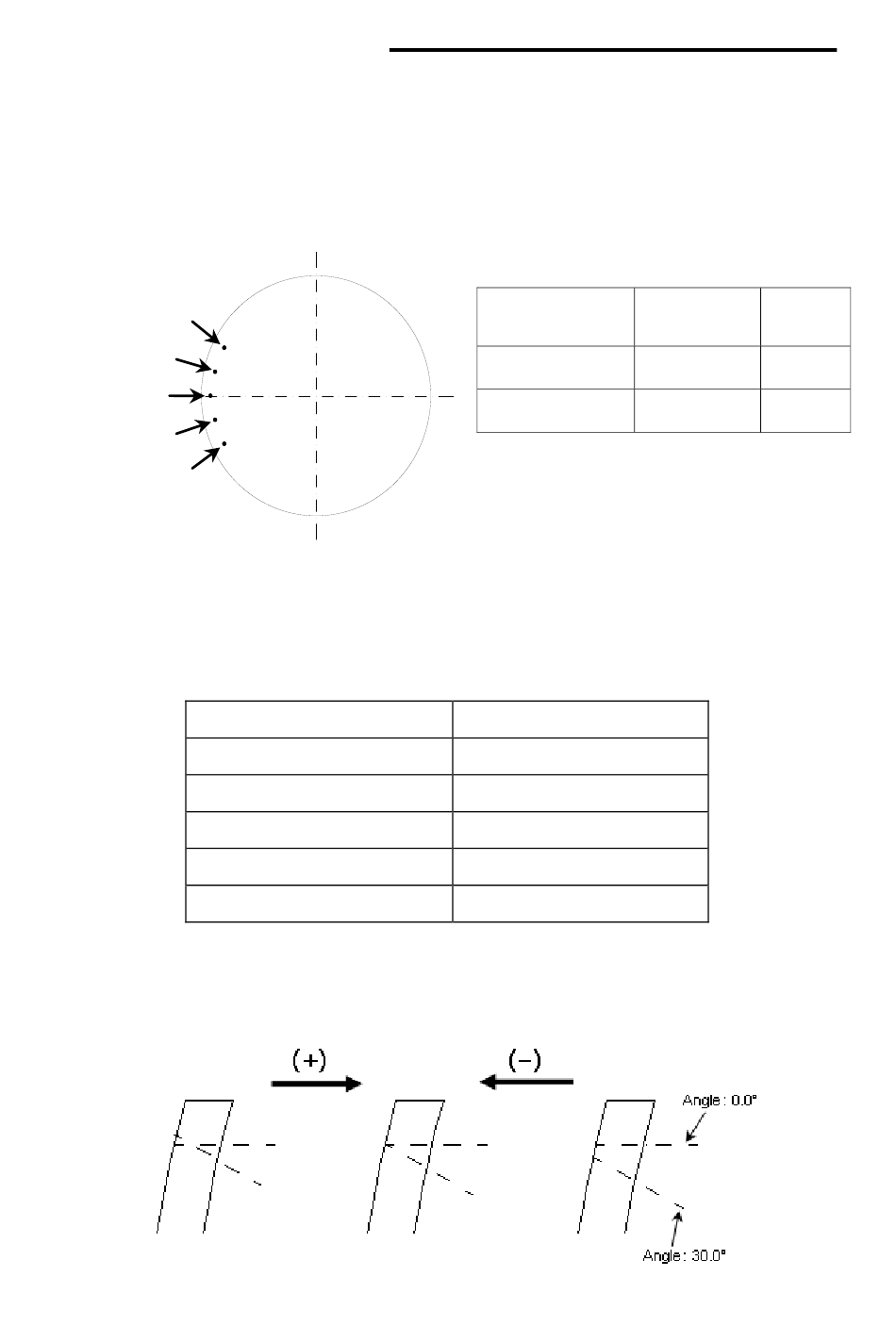

If the overlapped hole found, adjust "Drill Tip Angle Adj" value according to the
following table.
If there are no holes which overlap on the front surface, increase or decrease the
"Drill Tip Angle Adj" parameter by angle value.
Drill Tip Angle Adjustment Pattern
Overlapped holes
①,②
③,④
⑤,⑥
⑦,⑧
⑨,⑩
No
①,③,⑤,⑦,⑨
②,④,⑥,⑧⑩
Compensation value
Current value - 0.5
Current value - 0.2
Keep the current value
Current value + 0.2
Current value + 0.5
Diameter
Tilting
(mm)
(°)
0.8
0.0
0.8
30.0
