Excelon XD/XQ Operator's Manual
104
6.3.10.2 Drill Hole Diameter Adjustment
Load "Drill Hole Dia Adj" data in the Job menu and then start processing.
①
②
③
④
⑤
Find a hole that Ø 2.0mm standard pin passes through
If the matched hole found, adjust "Drill Hole Diameter Adj" value according to the
following table.
If there is no matched hole, adjust "Drill Hole Diameter Adj" value manually.
Hole diameter > Ø 2.0mm : decrease the compensation value
Hole diameter < Ø 2.0mm : increase the compensation value

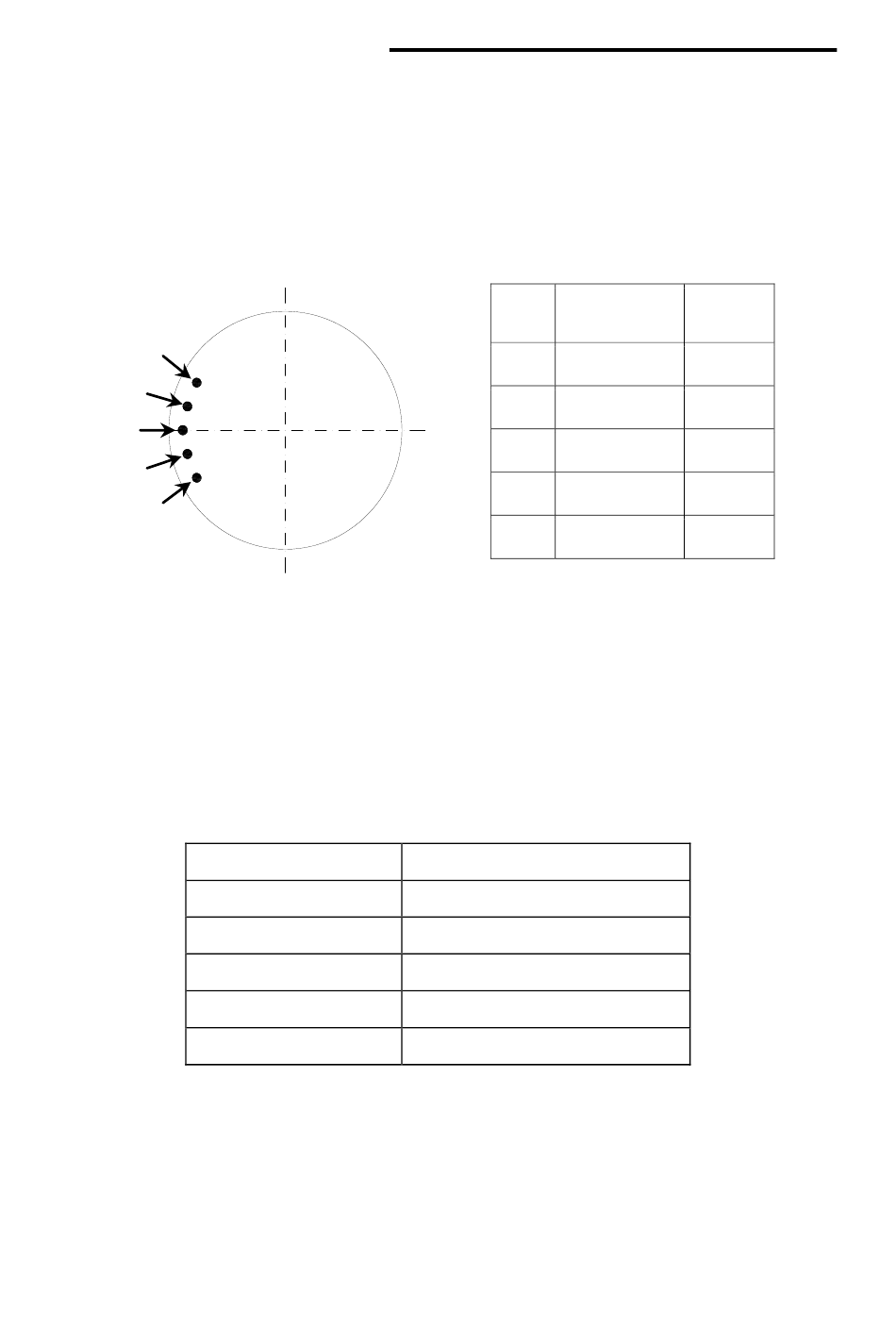

Drill Hole Diameter Adjustment Pattern
Matched hole
⑤
④
③
②
①
Diameter
No
(mm)
①
1.90
②
1.95
③
2.00
④
2.05
⑤
2.10
softly.
Compensation value
Current value - 0.10
Current value - 0.05
Keep the current value
Current value + 0.05
Current value + 0.10
Tilting
(°)
Auto
Auto
Auto
Auto
Auto
