5.3.10 Hole Attributes

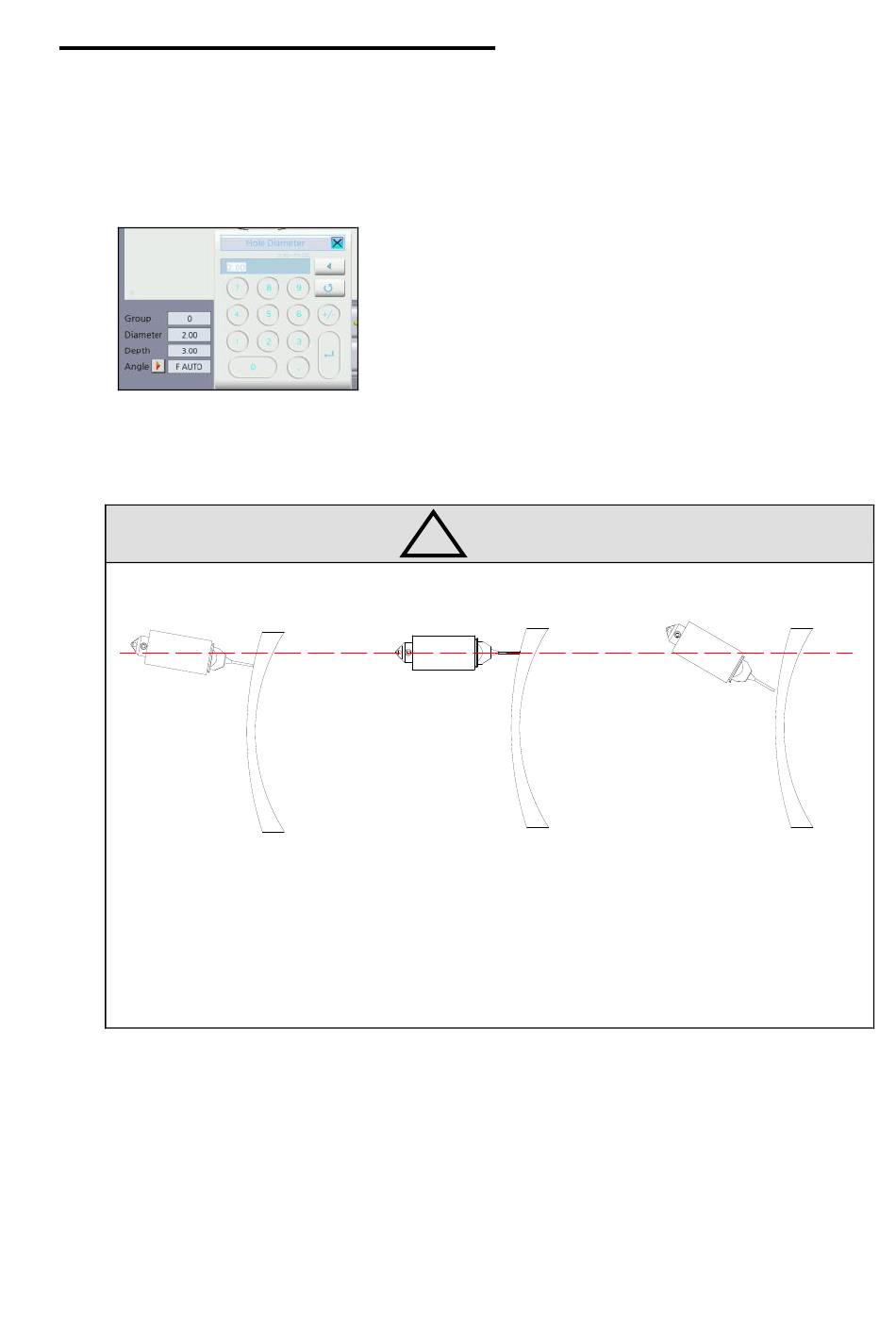

Hole attributes (Group, Diameter, Depth, Angle) are displayed on the bottom left of the
screen.
• Tilting Angle
Automatic
(perpendicular to
surface)
• Group attribute explained in a separate chapter.
Excelon XD/XQ Operator's Manual
• Diameter : Hole diameter (Min 0.8 mm)
• Depth : Hole depth (0 means through hole)
• Angle : Tilting angle (0°~ 30°, Automatic)
!
NOTE
0° 30°(maximum)
61
