3. System Configurations

3.1 Main Body

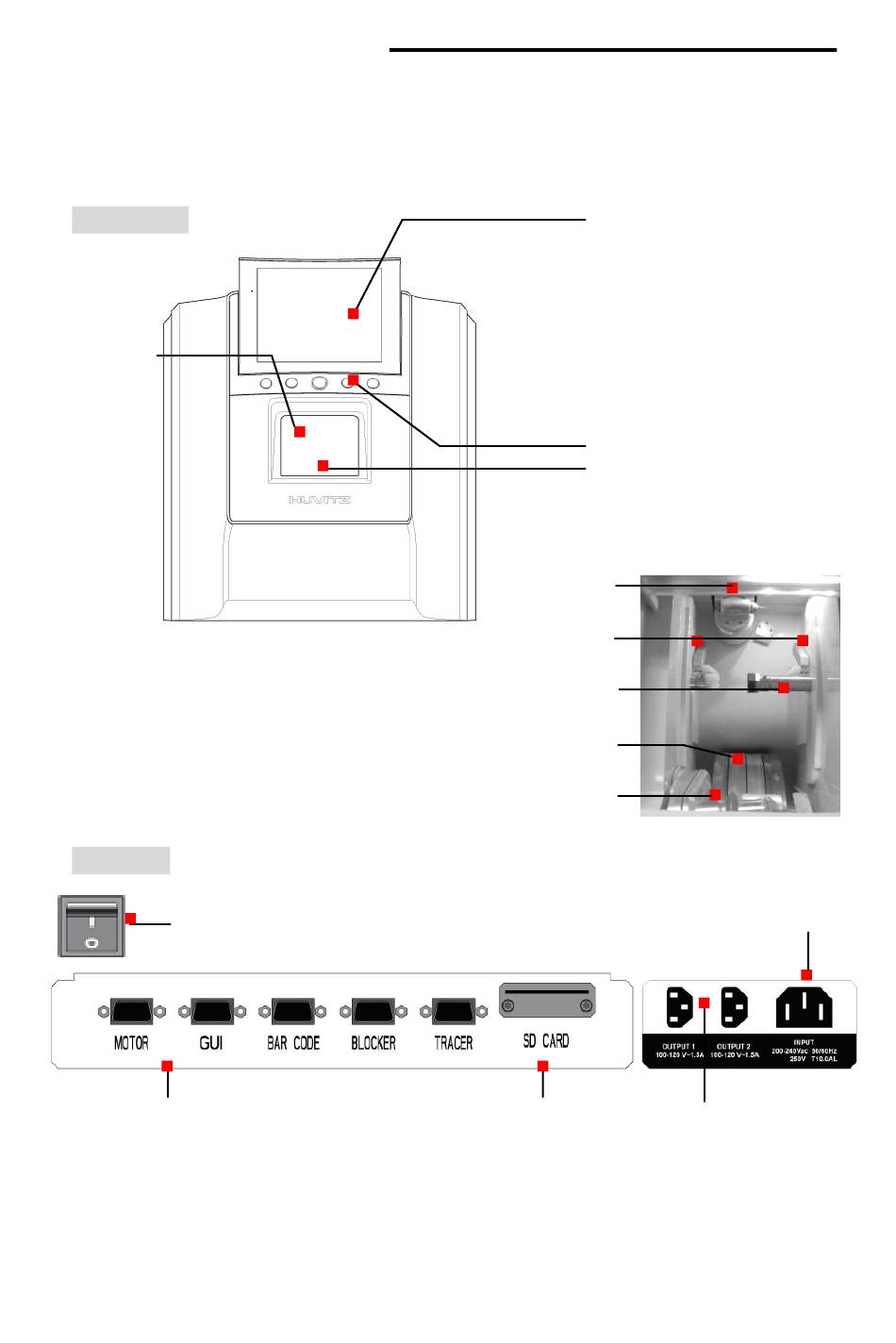

Front View
Edging
Room
Cover
(Auto)
Top View
Interface Terminal
• MOTOR/GUI : maintenance • BLOCKER : Auto Blocker
• BAR CODE: Barcode Reader • TRACER : Frame Reader
Wheel for Safety Beveling and Grooving
Main Switch
Drill(XD)
Lens Feeler
Clamp
Main Wheel
Main power inlet and Fuse
Holder
SD memory card slot
Display window
(Touch Screen)
Operating Buttons
Edging Room
Power outlet for Pump I, II
