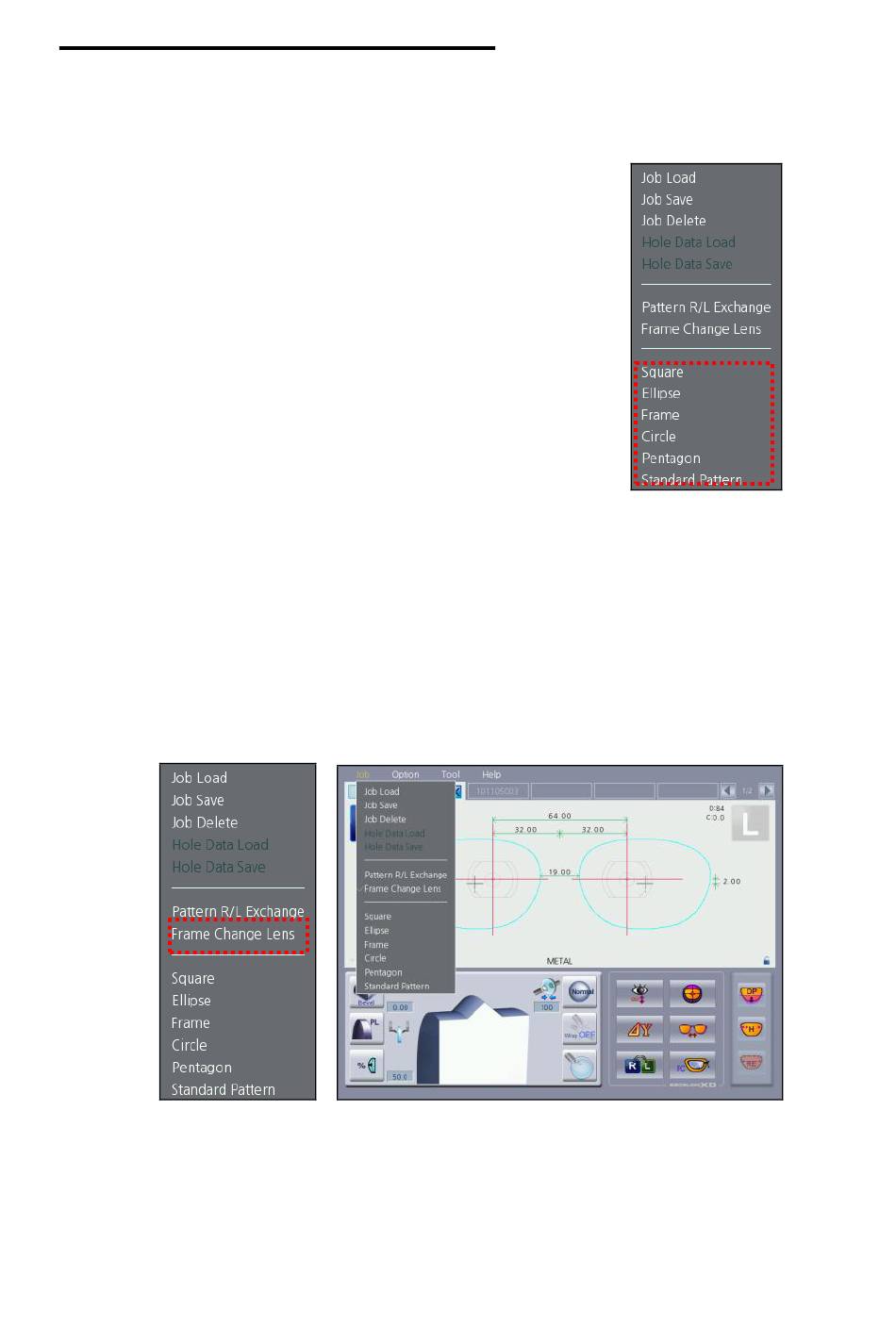

5.4.3 Internal Data

6 internal job data (Rectangle, Ellipse, Frame, Circle,
Pentagon, Standard Pattern) are built in the program.
This job data is used for testing edging quality.
To use internal data, select the data from the "Job"
menu.

5.4.4 Specify Frame Change Lens

This function is used for registering frame change lens for frame change
processing.
Select job data to use frame change lens and then select "Job – Frame
Change Lens" in the menu bar.
If a job registered to frame change lens, the color of frame shape changed to
blue and this frame shape always displayed in the frame change processing
job.
