1 Getting started

1.1 Overview of STEPP II Starter Kit

The Stepp II device can be obtained as a single unit or as part of a starter kit.
The device has two antenna plugs, one for GSM and one for GPS. The
device has a slot where a GSM SIM should be inserted. The SIM card
should be used for GSM communication to the device. The device also has a
Molex Micro-Fit 3.0 socket and an AMP INFOPORT Series III header. The
Molex socket gives access to the power input and signals such as the inputs,
outputs The AMP header gives access to signals such as the microphone, the
speaker and the RS232 serial connection.
The Stepp II Starter Kit provides an environment for evaluating and
configuring the Stepp II device. The kit can be used to emulate the final
hardware setup used when the device is installed. Connecting the device to
the evaluation board gives easy access to the device.

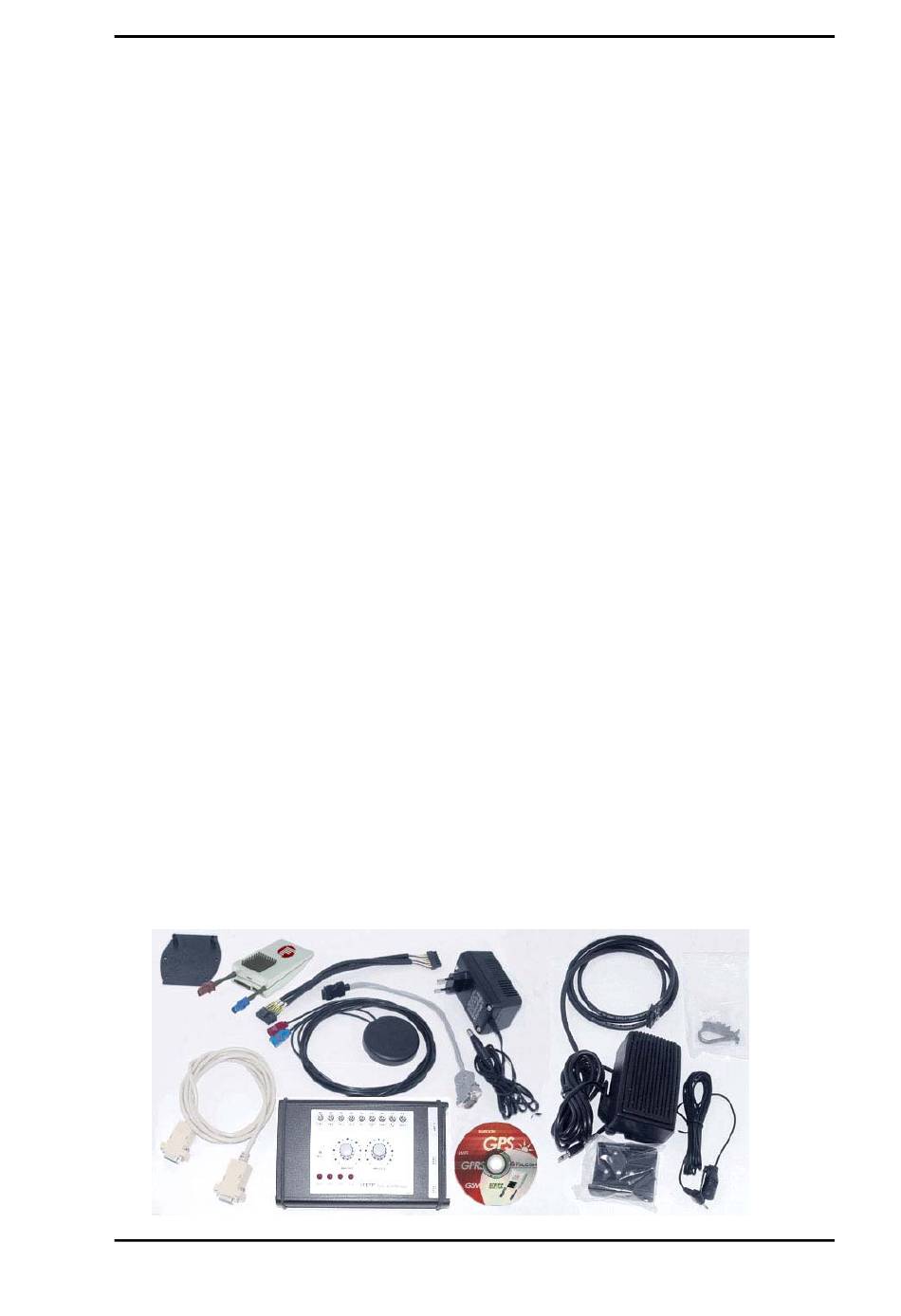

Image 2 gives an overview of the variety of components contained in
Falcom's STEPP II Starter Kit:
•
Falcom STEPP II device with built-in bracket
•
GSM/GPS antenna
•
AC/DC adapter (European standard 220 AC / 12V DC)
•
Evaluation box
STEPP evaluation
•
16-pin configuration cable with MOLEX plug connection
•
Cable with 15-pin AMP and DB15 plug connection
•
Audio cable
•
1,5m power cable
•
Modem cable set with DB9 plug connection
•
Handsfree loudspeaker and microphone
•
CD with
- Configuration software STEPPconfig
- Hardware description
- Software description
