FALCOM STEPP II Getting Started page 11

STEPP II GETTING STARTED

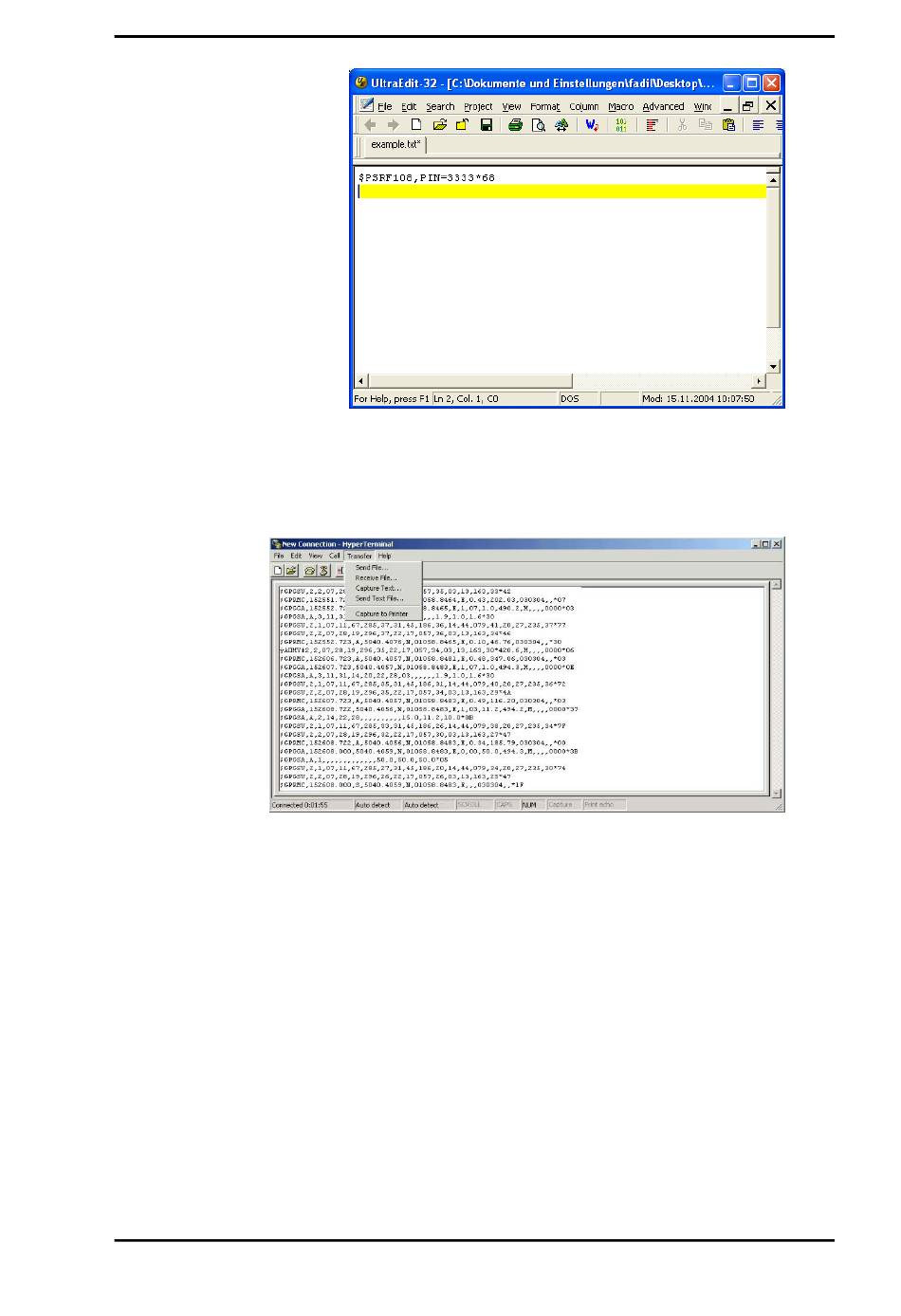

Figure 9: Write the command on the text file.
In order to sent the command to the terminal you have to tranfer the saved
text file with included command. Click the Transfer on the Hyperterminal
menu and select Send text file... .
Figure 10: Start the transfer program.
Select the saved text file "example.txt" from its directory and click the open
button. Now the command(s) included in the text file is automatically sent
to the connected STEPP II terminal.
Note that, after the text file is sent to the device and it is accepted from the
device as well (command is written without single mistake), it writes the
user defined value onto the internal FLASH and it will be displayed upon
request. Sending the "$PSRF108,CNF*49" command to the STEPP II
terminal, it responds only changed configuration (changed from the user)
while the GPS messages are being displayed. To find the received
configurations from the STEPP II use the vertical and horizontal scroll bars
of terminal. The default settings will be not displayed.
