Installing The Stepp Ii Starter Kit Steps - FALCOM STEPP II Getting Started

STEPP II GETTING STARTED
Image 1: Scope of items in STEPP II Starter Kit.
The evaluation box has the following connection ports (see image 3):
•
Input for power supply (10 to 32V DC)
•
DB9 serial interface for PC COM Port
•
Audio cable with DB15 plug connection to connect with 15-pin AMP
connector of STEPP II Terminal
•
Configuration cable with 16-pin Molex connection to connect with 16-
pin Molex Connector of STEPP II Terminal
•
8-pin RJ45 audio (MIC N1 and MIC P1, see hardware description
("stepp_II_hardware_manual") OUTPUT for alarm channel
•
MIC/SPK INPUT/OUTPUT (SPK2 and MIC2, see hardware description
("stepp_II_hardware_manual") – connections for voice channel
•
4 LEDs to signalise the status of the digital outputs 1 to 4 of the STEPP
II
•
9 switches to test the digital inputs 1 to 4, as well as IGN (ignition) and
to switch ON/OFF various device functions such as V+, ACCU OFF,
MIC intern
"stepp_II_hardware_manual" for detailed information).
•
Potentiometer to test analogue inputs 1 and 2.
•
MIC 1 INPUT alarm microphone.

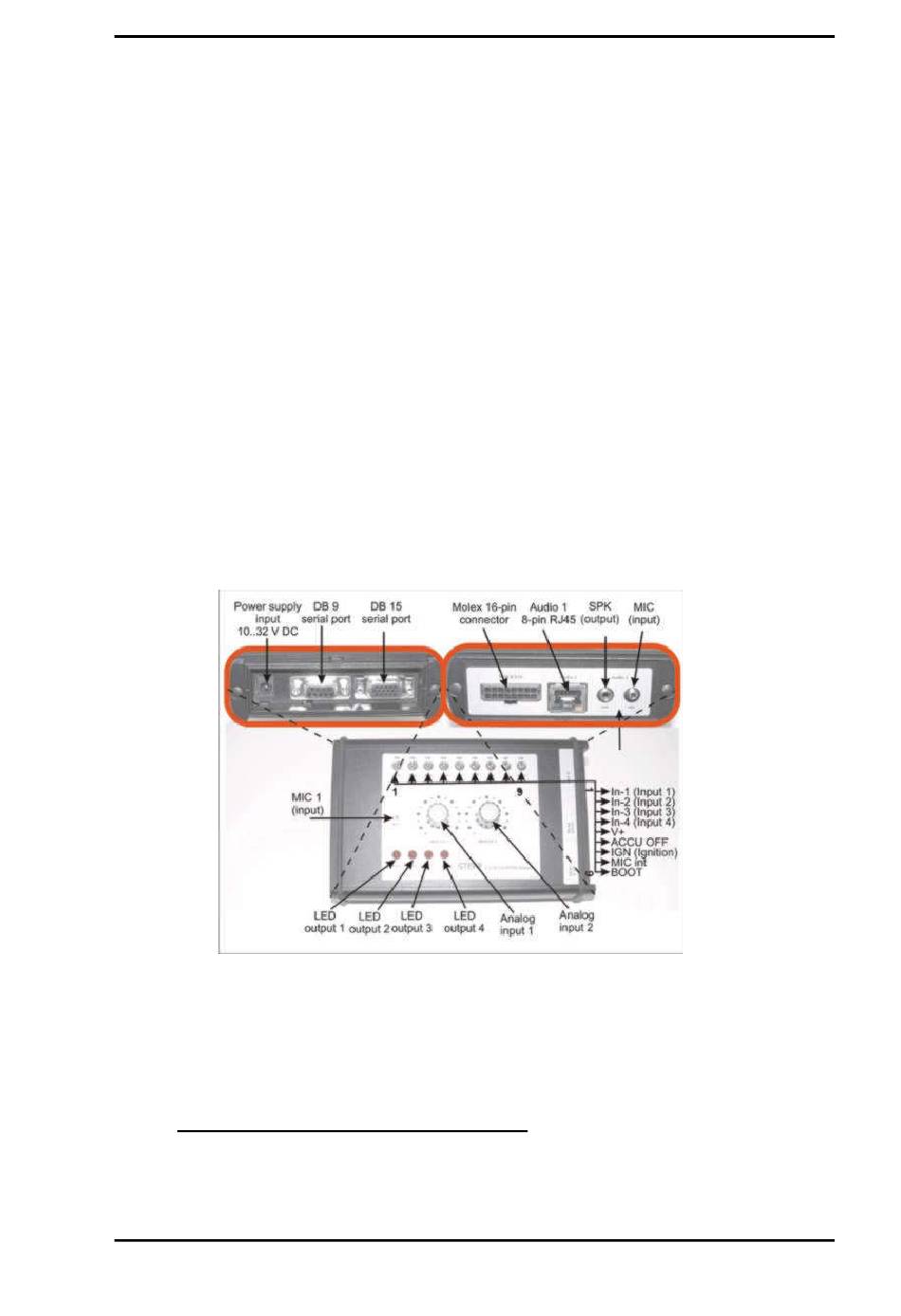

Image 2: Connections of evaluation box
Descriptions on the output pins and the hardware of the connections on the
STEPP II are provided in
"Hardware Interfaces".

1.1.1 Installing the STEPP II Starter Kit steps

In general, be sure not to turn on the STEPP II terminal module while it is
out of the operating range of voltage and temperature stated described in the
hardware manual.
