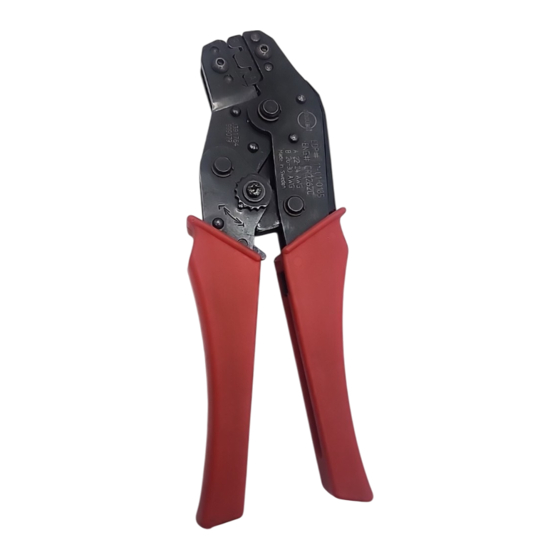

Hand Crimp Tool for Crimp Terminals
FEATURES
Small handle spread which make this style tool ideally suited for end users
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Products: 3.96mm (.156") Pitch KK® Crimp Terminal for 22-30 AWG,
1.57mm (.062") Diameter, Standard .062" Pin and Socket Crimp Terminal for 24-30 AWG,
2.50mm (.098") Pitch SPOX™ Wire-to-Wire Male Crimp Terminal for 22-28 AWG,
KK® Anti Fish Hook and KK® Cat Ear Crimp Terminal for 22-30 AWG,
MINI KK® Crimp Receptacles for 22-30AWG,
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com
Terminal
Series No.
Loose Piece
02-06-2132 02-06-6144 02-06-2131 02-06-6143
02-06-6135 04-01-0811 02-06-6130 04-01-0809
1854
02-06-6136 39-00-0335 02-06-6137 39-00-0280
02-06-6139 39-00-0337 02-06-6138 39-00-0336
02-06-1132 02-06-5148 02-06-1131 02-06-5147
02-06-1143 04-01-0812 02-06-1141 04-01-0810
1855
02-06-5135 39-00-0339 02-06-5130 39-00-0338
02-06-5139 39-00-0341 02-06-5138 39-00-0340
02-06-1232
2189
02-06-3203
02-06-5204
02-06-2232
2190
02-06-4203
2717
08-50-0114 39-00-0107 08-50-0113 08-55-0130
08-50-0160 39-00-0373 08-50-0124 08-56-0109
08-50-0275 39-00-0375 08-50-0159 39-00-0032
08-51-0102 39-00-0377 08-50-0273 39-00-0064
08-55-0102 39-00-0379 08-50-0274 39-00-0372
2759
08-55-0131 39-00-0381 08-51-0101 39-00-0374
08-56-0110 50-29-1638 08-51-0108 39-00-0376
39-00-0033
2951
16-02-1003
08-50-0322 97-00-0445 08-50-0321 97-00-0444
40445
Doc No: ATS-011010185
Revision: G

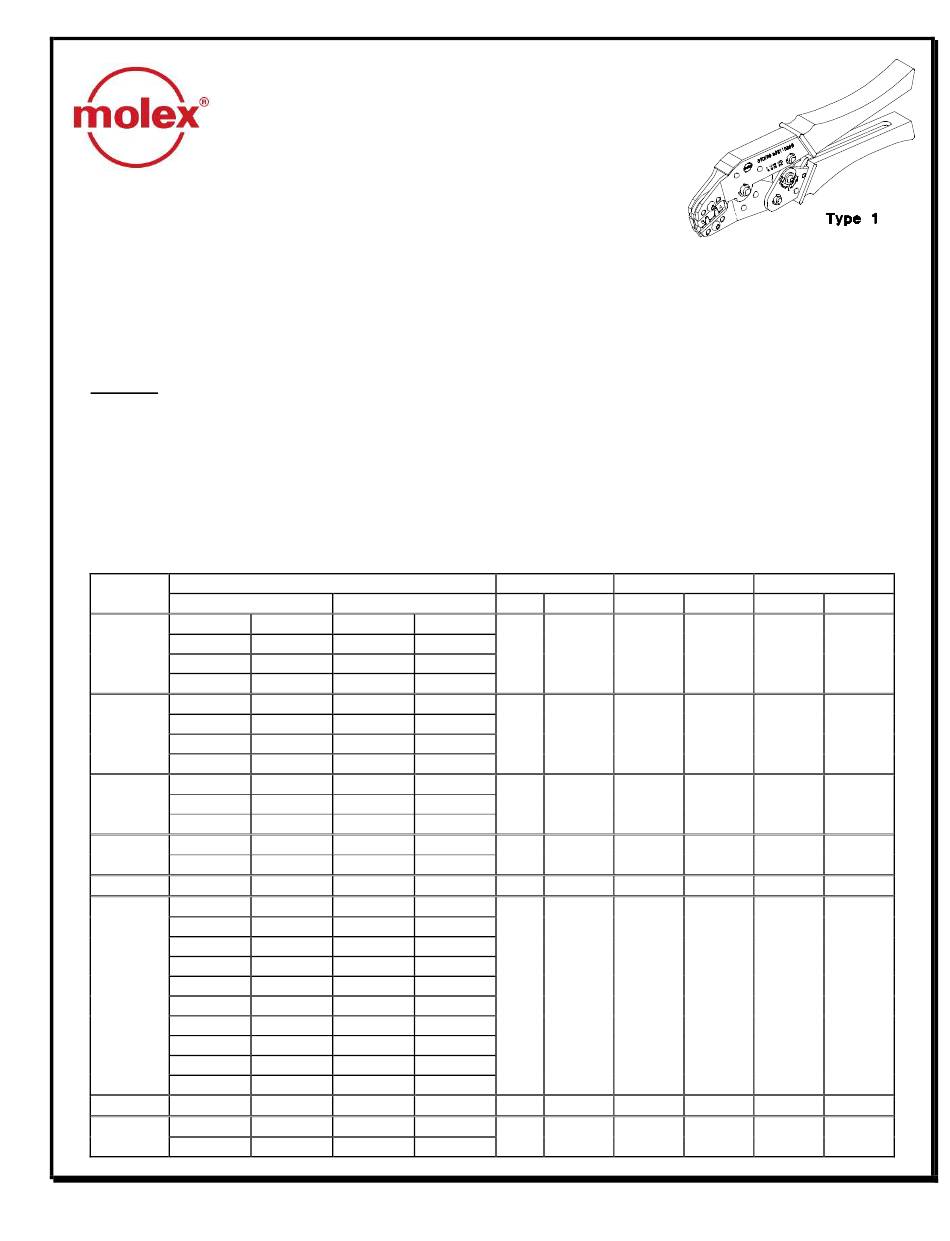

HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 11-01-0185
Engineering No. CR2262C
Terminal Order No.
Reel
02-06-1231 02-06-5203
02-06-1233 02-06-5212
02-06-3202
02-06-2231 02-06-6207
02-06-4202
02-06-1140
08-55-0101 39-00-0378
08-55-0101 39-00-0380
08-55-0126 50-29-1757
16-02-1002
97-00-0921
97-00-0920
Release Date: 10-07-03
Revision Date: 04-09-08
Wire Size
Insulation Diameter
AWG
mm²
mm
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
22-30 0.35-0.05 1.02-1.57 .040-.062 2.54-3.17 .100-.125
24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156
22-30 0.35-0.05 1.02-1.57 .040-.062 2.54-3.17 .100-.125
UNCONTROLLED COPY
Strip Length
In.
mm
In.
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for molex 11-01-0185
Summary of Contents for molex 11-01-0185
- Page 1 MINI KK® Crimp Receptacles for 22-30AWG, The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com Terminal Terminal Order No.
- Page 2 Hand Crimp Tool for Crimp Terminals Terminal Terminal Order No. Wire Size Insulation Diameter Strip Length Series No. Loose Piece Reel mm² 41572 08-65-0805 08-65-0804 22-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156 02-06-1109 02-06-5211 4559 24-30 0.20-0.05 1.02-2.29 .040-.090 3.17-3.96 .125-.156 02-06-1111 08-50-0032 08-56-0115 08-50-0021 08-56-0120 08-50-0136 40-01-0830 08-50-0022 08-56-0155...
- Page 3 Hand Crimp Tool for Crimp Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 6). Conductor Conductor Pull Force Wire Size Profile Minimum Crimp Height (REF) Crimp Width Terminal Series No. 0.20 0.76-0.86 .030-.034 1.40 .055 35.6...
- Page 4 2.50 0.05 0.69-0.79 .027-.031 1.40 .055 1.50 OPERATION CONDUCTOR CAUTION: Install only Molex terminals listed above with this LOCATOR GRIPS tool. Do not crimp hardened objects as damage can occur to BLADE the tool or die. INSULATION TERMINAL GRIPS Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
- Page 5 Hand Crimp Tool for Crimp Terminals UNCONTROLLED COPY Doc No: ATS-011010185 Release Date: 10-07-03 Page 5 of 8 Revision: G Revision Date: 04-09-08...
- Page 6 Hand Crimp Tool for Crimp Terminals Crimping Terminals 1. Lift the locator blade and place the terminal into the correct die profile (A or B), release the locator blade. Not all tools are equipped with a locator or locator blade. 2.
- Page 7 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 8 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-011010185 Release Date: 10-07-03 Page 8 of 8 Revision: G Revision Date: 04-09-08...
