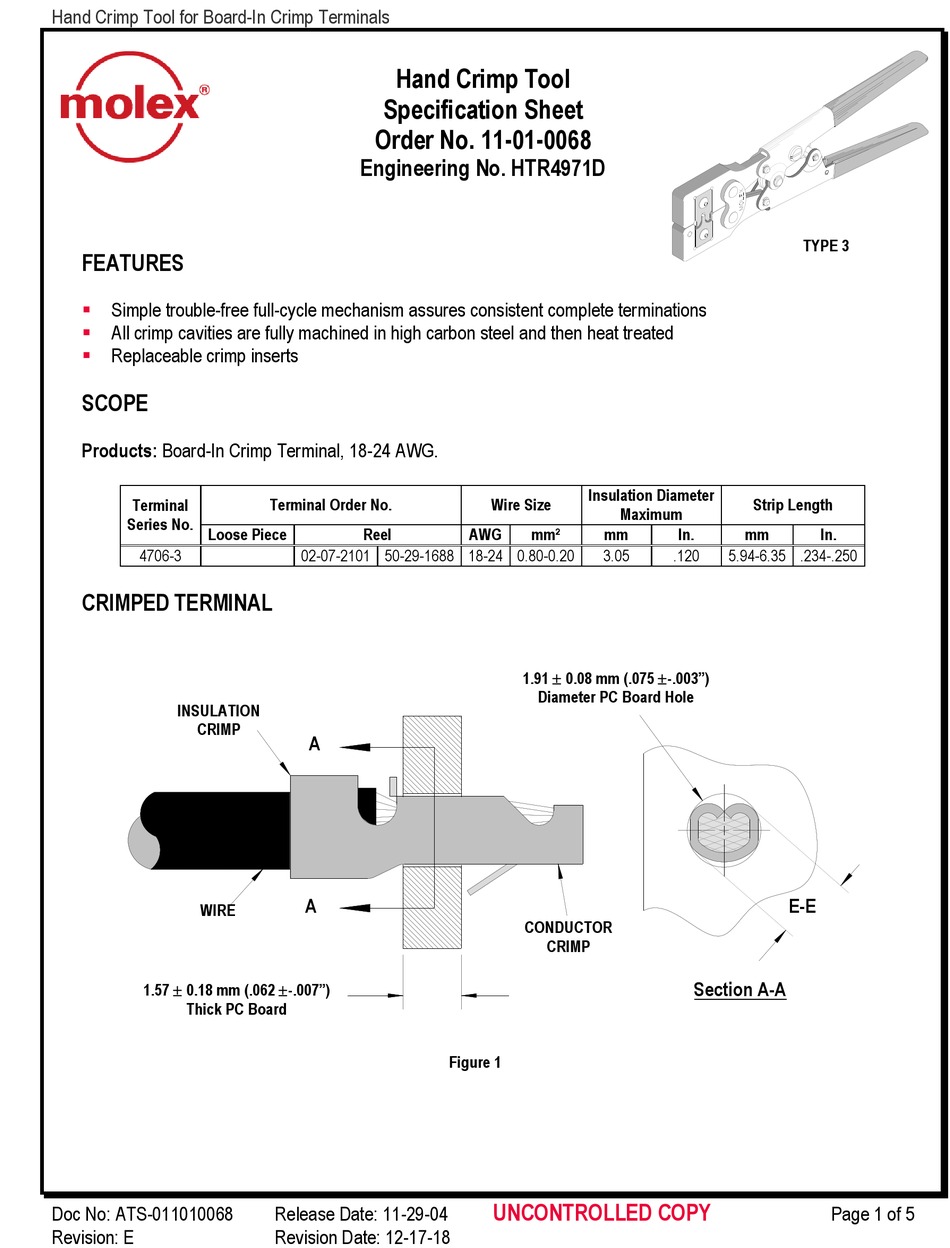

Hand Crimp Tool for Board-In Crimp Terminals

FEATURES

Simple trouble-free full-cycle mechanism assures consistent complete terminations
All crimp cavities are fully machined in high carbon steel and then heat treated
Replaceable crimp inserts

SCOPE

Products: Board-In Crimp Terminal, 18-24 AWG.
Terminal
Series No.
Loose Piece
4706-3
CRIMPED TERMINAL
INSULATION
CRIMP
WIRE
1.57  0.18 mm (.062 -.007")
Thick PC Board
Doc No: ATS-011010068
Revision: E
Hand Crimp Tool
Specification Sheet
Order No. 11-01-0068
Engineering No. HTR4971D
Terminal Order No.
Reel
02-07-2101 50-29-1688 18-24 0.80-0.20
A
A
Figure 1
Release Date: 11-29-04
Revision Date: 12-17-18
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
3.05
1.91  0.08 mm (.075 -.003")
Diameter PC Board Hole
CONDUCTOR
CRIMP
UNCONTROLLED COPY
TYPE 3
Strip Length
In.
mm
In.
.120
5.94-6.35 .234-.250
E-E
Section A-A
Page 1 of 5
