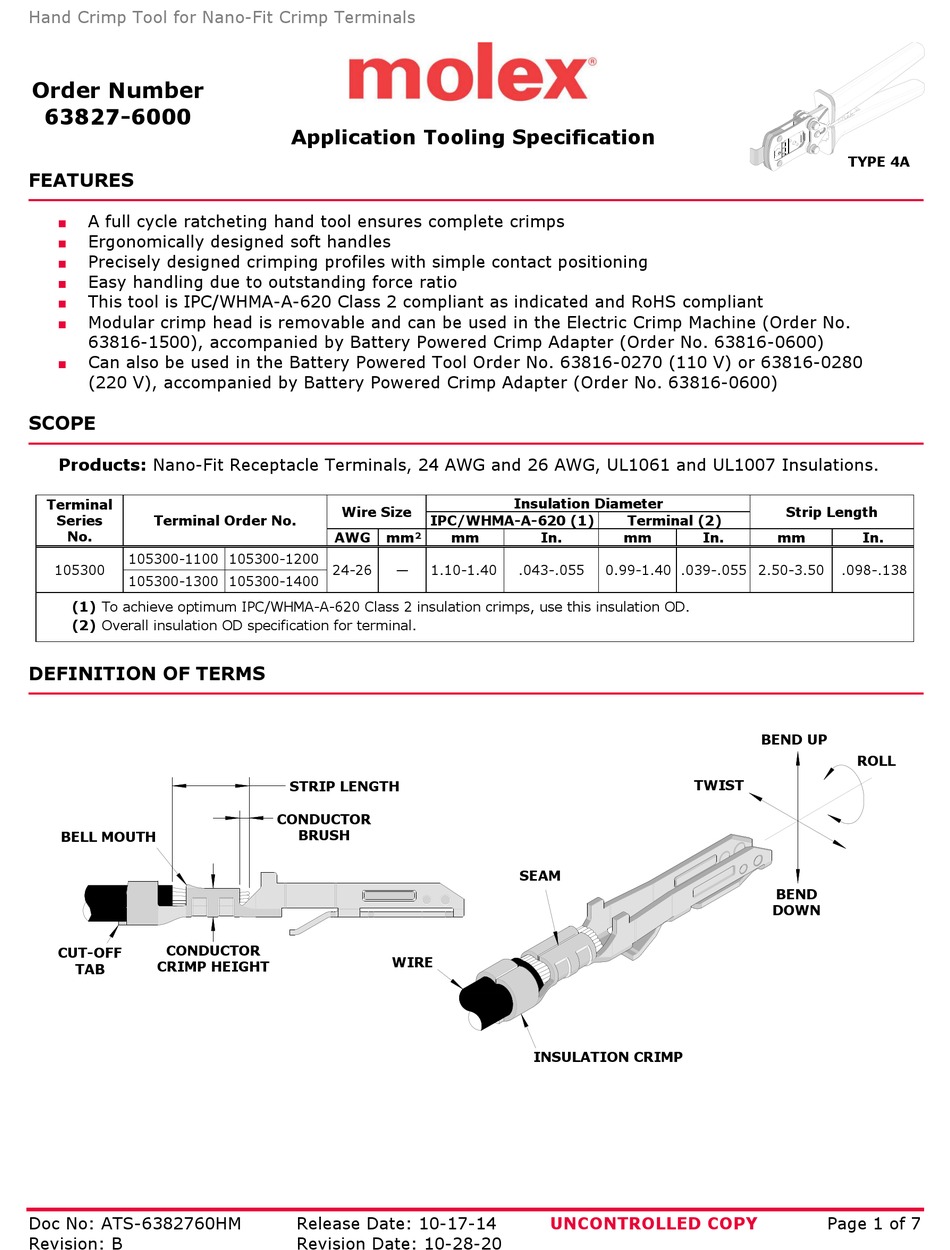

Hand Crimp Tool for Nano-Fit Crimp Terminals
Order Number
63827-6000
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
This tool is IPC/WHMA-A-620 Class 2 compliant as indicated and RoHS compliant
Modular crimp head is removable and can be used in the Electric Crimp Machine (Order No.
63816-1500), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
Can also be used in the Battery Powered Tool Order No. 63816-0270 (110 V) or 63816-0280
(220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: Nano-Fit Receptacle Terminals, 24 AWG and 26 AWG, UL1061 and UL1007 Insulations.
Terminal
Series
Terminal Order No.
No.
105300-1100 105300-1200
105300
105300-1300 105300-1400
(1) To achieve optimum IPC/WHMA-A-620 Class 2 insulation crimps, use this insulation OD.
(2) Overall insulation OD specification for terminal.
DEFINITION OF TERMS
BELL MOUTH
CONDUCTOR
CUT-OFF
CRIMP HEIGHT
TAB
Doc No: ATS-6382760HM
Revision: B
Application Tooling Specification
Wire Size
IPC/WHMA-A-620 (1)
AWG
mm²
mm
24-26
—
1.10-1.40
STRIP LENGTH
CONDUCTOR
BRUSH
WIRE
Release Date: 10-17-14
Revision Date: 10-28-20
Insulation Diameter
Terminal (2)
In.
mm
.043-.055
0.99-1.40 .039-.055 2.50-3.50
SEAM
INSULATION CRIMP
UNCONTROLLED COPY
TYPE 4A
Strip Length
In.
mm
In.
.098-.138
BEND UP
ROLL
TWIST
BEND
DOWN
Page 1 of 7
