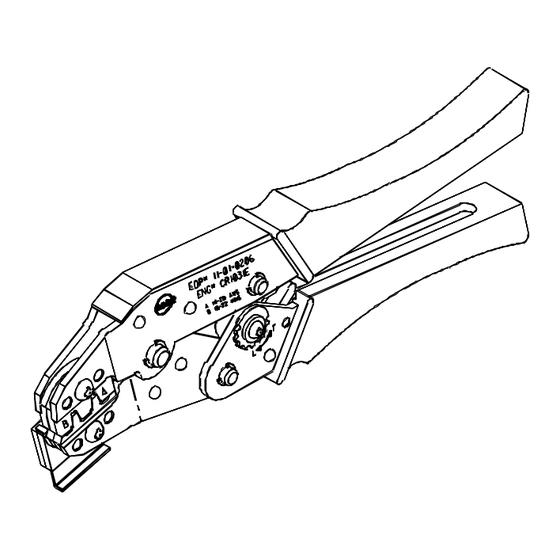

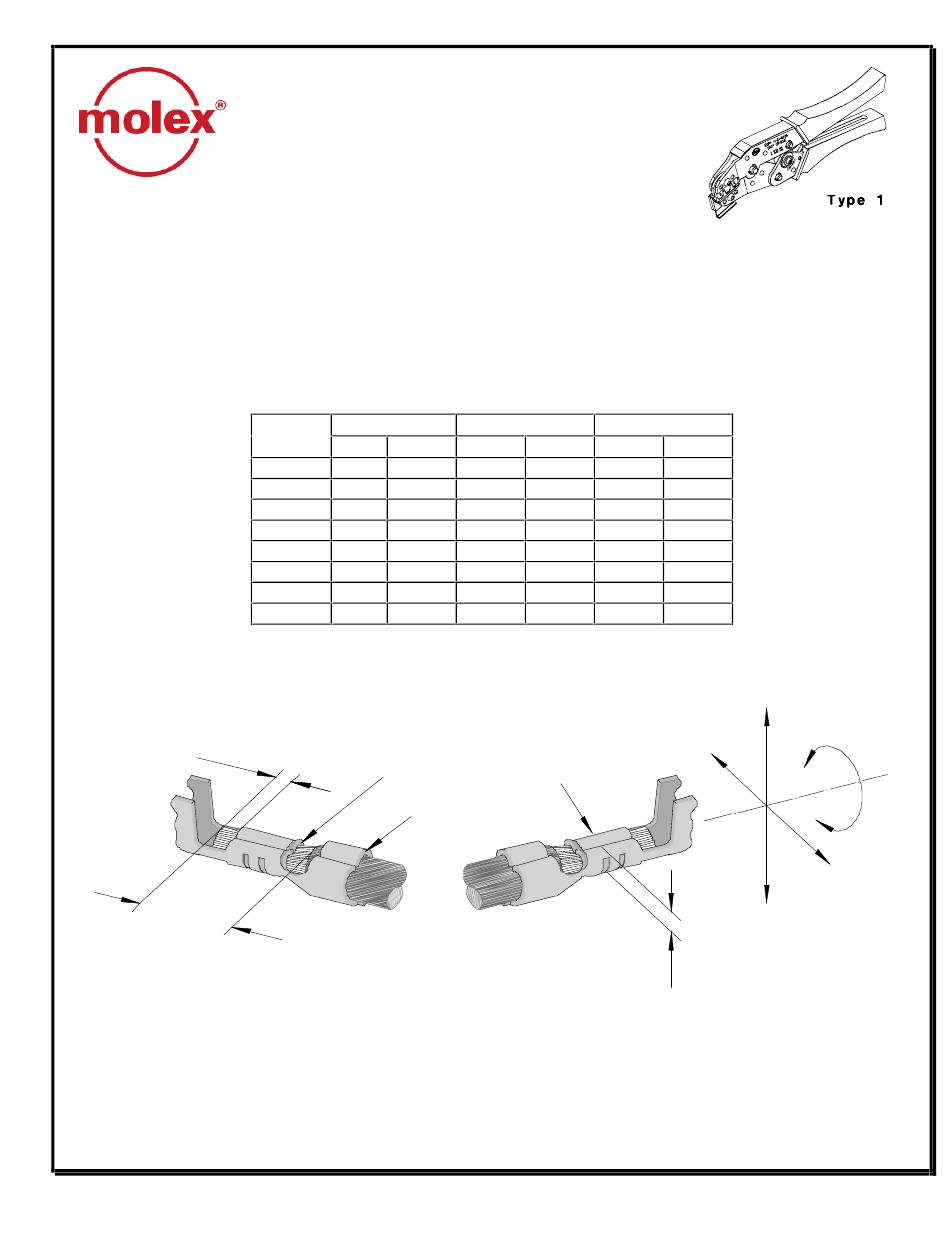

CR60930A Hand Crimp Tool "C-Grid" S.L. Terminals
FEATURES
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No. 11-01-0208
Release Date: 07-16-94
Revision: E
Revision Date: 11-01-04
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 11-01-0208
Terminal
Wire Size
Series No.
AWG
mm²
50088
22 - 24
0.35-0.20
50088
32 - 36
0.03-0.01
70021
22 - 24
0.35-0.20
70021
32 - 36
0.03-0.01
70058
20 - 24
0.50-0.20
70058
32 - 36
0.03-0.01
71851
22 - 24
0.35-0.20
71851
32 - 36
0.03-0.01
BELL MOUTH
INSULATION
CRIMP
(CR60930A)
Insulation Diameter
mm
In.
mm
1.09-1.65
.043-.065
2.54-3.17
0.43-0.64
.017-.025
2.54-3.17
1.09-1.65
.043-.065
2.54-3.17
0.43-0.64
.017-.025
2.54-3.17
1.09-1.70
.043-.067
2.54-3.17
0.43-0.64
.017-.025
2.54-3.17
1.09-1.65
.043-.065
2.54-3.17
0.43-0.64
.017-.025
2.54-3.17
CONDUCTOR
CRIMP
UNCONTROLLED COPY
Strip Length
In.
.100-.125
.100-.125
.100-.125
.100-.125
.100-.125
.100-.125
.100-.125
.100-.125
BEND UP
TWISTING
BEND
DOWN
CRIMP HEIGHT
ROLLING
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for molex CR60930A
Summary of Contents for molex CR60930A
- Page 1 CR60930A Hand Crimp Tool “C-Grid” S.L. Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 11-01-0208 (CR60930A) FEATURES Œ Small handle spread which make this style tool ideally suited for end users Œ Ratchet with safety release that ensures consistent performance Œ...
- Page 2 CR60930A Hand Crimp Tool “C-Grid” S.L. Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4). Cond. Crimp Punch Width (Ref) Wire Size Pull Force Min. Profile Terminal Height (Ref) Cond. Series No. 50088 0.35...
- Page 3 CR60930A Hand Crimp Tool “C-Grid” S.L. Terminals PRE-STRIPPED WIRE OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. Crimping Terminals TERMINAL 1.
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 CR60930A Hand Crimp Tool “C-Grid” S.L. Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0383 Locator Assembly** 11-11-0324 Spring (Main) 11-11-0320 Spring (Ratchet) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET RELEASE LEVER...
