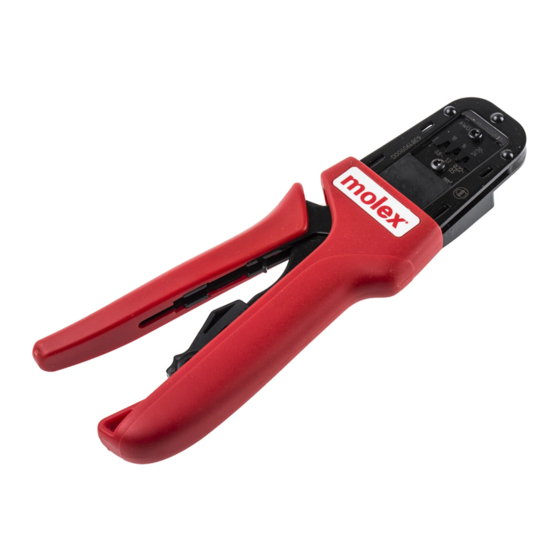

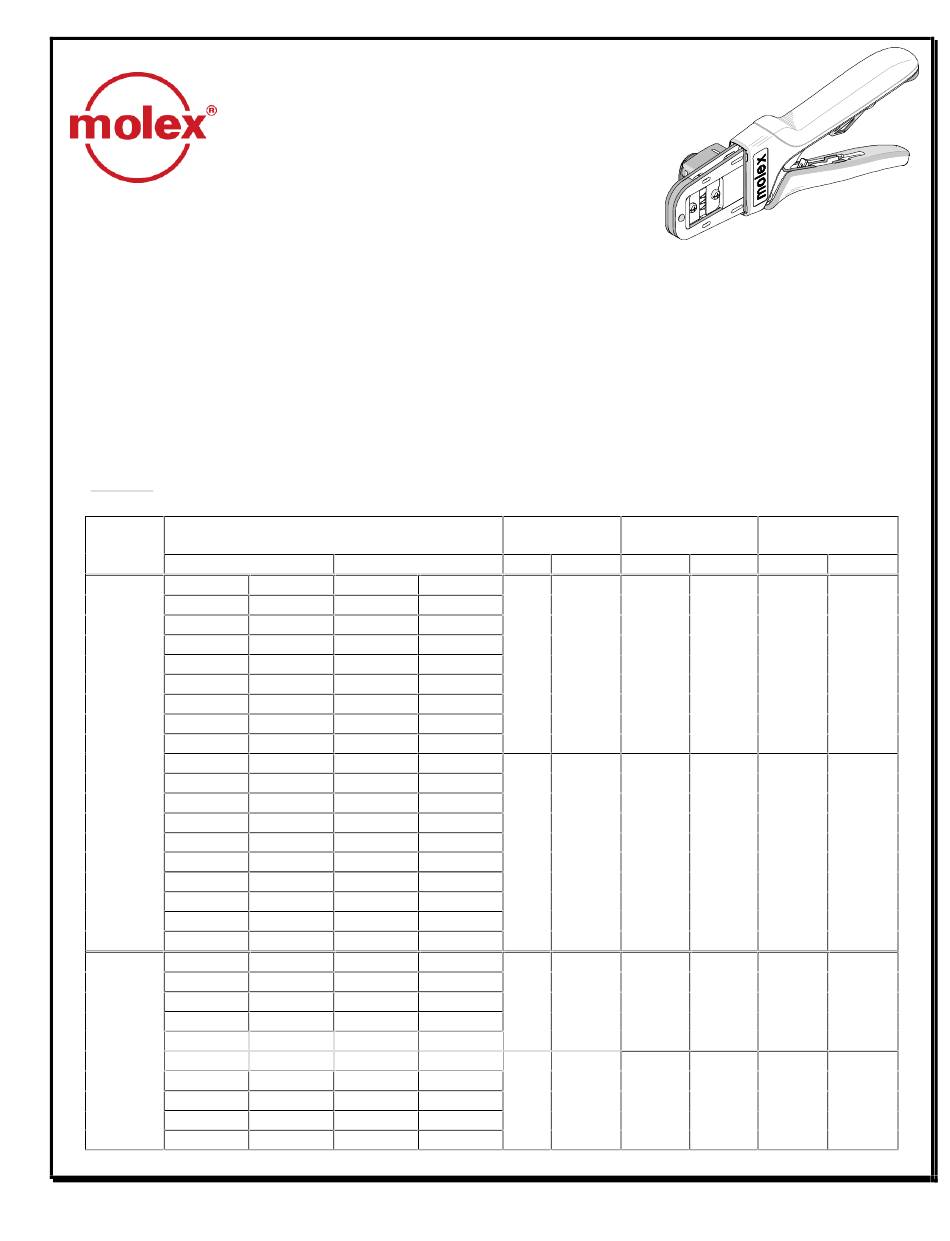

Hand Crimp Tool For
Mini-Fit™ Jr. Male and Female Crimp Terminals
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Ergonomic soft grip handles for comfortable crimping
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Right and Left handed applications
Œ
This tool is IPC/WHMA A-620 Class 2 compliant as indicated
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: Mini-Fit™ Jr. Male and Female Crimp Terminals, 16 - 24 AWG.
Terminal
Series No.
Loose Piece
39-00-0078 39-00-0174
39-00-0080 39-00-0180
39-00-0090 39-00-0186
39-00-0094 39-00-0199
39-00-0113 39-00-0205
39-00-0119 39-00-0212
39-00-0142 39-00-0218
39-00-0158 39-00-0448
39-00-0168
5556
39-00-0039 39-00-0182
39-00-0056 39-00-0195
39-00-0060 39-00-0201
39-00-0074 39-00-0208
39-00-0109 39-00-0214
39-00-0115 39-00-0406
39-00-0154 39-00-0408
39-00-0164 39-00-0429
39-00-0170 39-00-0441
39-00-0176 40-13-0852
39-00-0082 39-00-0131
39-00-0084 39-00-0148
39-00-0096 39-00-0224
39-00-0100 39-00-0450
39-00-0125
5558
39-00-0041 39-00-0127
39-00-0054 39-00-0220
39-00-0062 39-00-0431
39-00-0076 40-13-0854
39-00-0121
Doc No: ATS-638190900
Revision: A
HAND CRIMP TOOL
Specification Sheet
Order No. 63819-0900
Terminal Order No.
Æ
Reel
39-00-0077 39-00-0173
39-00-0079 39-00-0179
39-00-0089 39-00-0185
39-00-0093 39-00-0198
39-00-0112 39-00-0204
39-00-0118 39-00-0211
39-00-0141 39-00-0217
39-00-0157 39-00-0447
39-00-0167
39-00-0038 39-00-0181
39-00-0055 39-00-0194
39-00-0059 39-00-0200
39-00-0073 39-00-0207
39-00-0108 39-00-0213
39-00-0114 39-00-0405
39-00-0153 39-00-0407
39-00-0163 39-00-0428
39-00-0169 39-00-0440
39-00-0175 40-13-0851
39-00-0081 39-00-0130
39-00-0083 39-00-0147
39-00-0095 39-00-0223
39-00-0099 39-00-0449
39-00-0124
39-00-0040 39-00-0126
39-00-0053 39-00-0219
39-00-0061 39-00-0430
39-00-0075 40-13-0853
39-00-0120
Release Date: 01-24-08
Revision Date: 01-24-08
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
16
1.30
3.10
18-24 0.80-0.20
3.10
16
1.30
3.10
18-24 0.80-0.20
3.10
UNCONTROLLED COPY
TYPE 4D
Strip Length
In.
mm
In.
.122
3.00-3.50 .118-.138
.122
3.00-3.50 .118-.138
.122
3.00-3.50 .118-.138
.122
3.00-3.50 .118-.138
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for molex 63819-0900
Summary of Contents for molex 63819-0900
- Page 1 Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals HAND CRIMP TOOL Specification Sheet Order No. 63819-0900 TYPE 4D FEATURES Œ Œ A full cycle ratcheting hand tool ensures complete crimps Œ Ergonomic soft grip handles for comfortable crimping Œ...
-
Page 2: Definition Of Terms
Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals Insulation Diameter Terminal Terminal Order No. Wire Size Strip Length Æ Maximum Series No. Loose Piece Reel mm² 30490-1012 30490-2012 30490-1002 30490-9802 30490 18-24 0.80-0.20 3.10 .122 3.00-3.50 .118-.138 30490-2002 30490-9902 44476-3112 44476-3111... - Page 3 Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals CONDITIONS: After crimping, the conductor profiles should measure the following. Conductor Crimp Insulation Crimp Pull Force Terminal Wire Size Profile Minimum Height (Ref.) Width (Ref.) Height (Ref.) Width (Ref.) Series No.
-
Page 4: Operation
IN DOWN HANDLE WILL POSTION SPRING OPEN CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together. At the end of the closing stroke, the ratchet mechanism will release the handles and the hand tool will spring open. - Page 5 Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals WIRE STOP IS PART WIRE AGAINST THE OF THE LOCATOR WIRE STOP TERMINAL PRE-STRIPPED WIRE Figure 5 WIRE TERMINAL Note: The tamper proof ratchet action will not release the tool until it has been fully closed. LOCATOR WIRE SQUEEZE...
-
Page 6: Maintenance
Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals Locator Replacement JAWS OPEN See the parts list on the last page of this document for PULL OPEN the proper locator order number. Follow the steps TOOLING below to replace the locator. TOOLING M3 BHCS 1. -
Page 7: Lubrication Points
Hand Crimp Tool For Mini-Fit™ Jr. Male and Female Crimp Terminals 3. Make certain all pins; pivot RATCHET RELEASE points and bearing surfaces are LEVER protected with a thin coat of high quality machine oil. Do not oil excessively. The tool was engineered for durability but like any other equipment it needs cleaning and lubrication for a... -
Page 8: Warranty
Molex does not certify or re-certify hand tools but rather supplies the following guidelines for customers to re-certify hand tools. This tool is qualified to pull force only. See the Molex web site for the Quality Crimp Handbook for more information on pull testing. -
Page 9: Parts List
2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638190900 Release Date: 01-24-08 Page 9 of 9 Revision: A Revision Date: 01-24-08...
