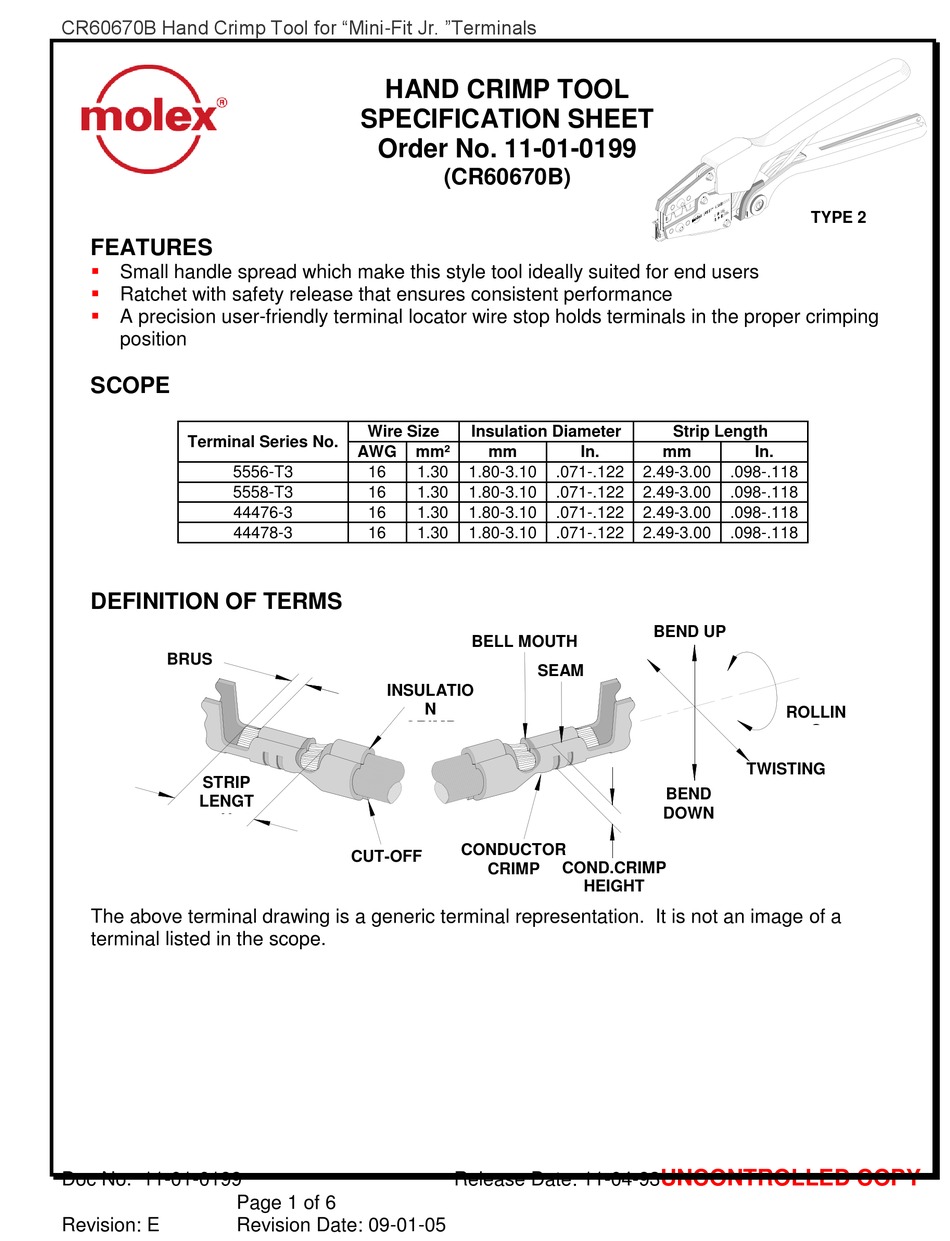

CR60670B Hand Crimp Tool for "Mini-Fit Jr. "Terminals
FEATURES
Small handle spread which make this style tool ideally suited for end users
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position
SCOPE
Terminal Series No.
5556-T3
5558-T3
44476-3
44478-3
DEFINITION OF TERMS
BRUS
H
STRIP
LENGT
H
The above terminal drawing is a generic terminal representation. It is not an image of a
terminal listed in the scope.
Doc No. 11-01-0199
Page 1 of 6
Revision: E
Revision Date: 09-01-05
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 11-01-0199
(CR60670B)
Wire Size
Insulation Diameter
AWG
mm²
mm
16
1.30
1.80-3.10
16
1.30
1.80-3.10
16
1.30
1.80-3.10
16
1.30
1.80-3.10
BELL MOUTH
INSULATIO
N
CRIMP
CONDUCTOR
CUT-OFF
CRIMP
TAB
Release Date: 11-04-93
Strip Length
In.
mm
.071-.122
2.49-3.00
.071-.122
2.49-3.00
.071-.122
2.49-3.00
.071-.122
2.49-3.00
BEND UP
SEAM
BEND
DOWN
COND.CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 2
In.
.098-.118
.098-.118
.098-.118
.098-.118
ROLLIN
G
TWISTING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex CR60670B
Summary of Contents for molex CR60670B
- Page 1 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 11-01-0199 (CR60670B) TYPE 2 FEATURES Small handle spread which make this style tool ideally suited for end users Ratchet with safety release that ensures consistent performance ...
- Page 2 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 3). Punch Width (Ref) Cond. Crimp Wire Size Pull Force Min. Profile Height (Ref) Terminal Series No. Cond.
- Page 3 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals UNCONTROLLED COPY Doc No. 11-01-0199 Release Date: 11-04-93 Page 3 of 6 Revision: E Revision Date: 09-01-05...
- Page 4 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals Maintenance 5. Replace the plastic cover washer and screw. It is recommended that each operator of 6. Check to the crimp specifications the tool be made aware of, and after tool crimp force is adjusted.
- Page 5 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals 5. Pull force should be used as the additional information on final criteria for an acceptable crimping and crimp testing. crimp. Pull force is measured 6. Molex does not certify crimp with no influence from the hand tools.
- Page 6 CR60670B Hand Crimp Tool for “Mini-Fit Jr. ”Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0376 Locator Assembly** 64000-0076 Repair Kit (Not included) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET RELEASE...
