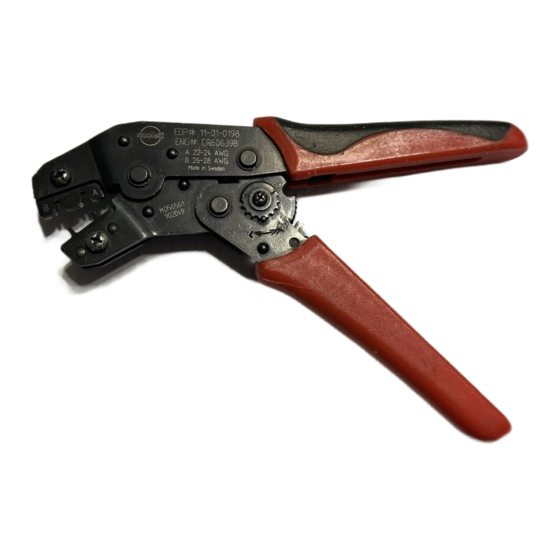

CR60639B Hand Crimp Tool for "Min-Fit Jr." Terminals
FEATURES
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Terminal Series No.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No. 11-01-0198
Release Date: 04-08-93
Revision: E
Revision Date: 09-01-05
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0198
Wire Size
AWG
mm²
5556-T2
22 - 28
0.35-0.08
5558-T2
22 - 28
0.35-0.08
BELL MOUTH
INSULATION
CRIMP
(CR60639B)
Insulation Diameter
mm
In.
0.90-1.80
.035-.071
2.79-3.30
0.90-1.80
.035-.071
2.79-3.30
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
Strip Length
mm
In.
.110-.130
.110-.130
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex CR60639B
Summary of Contents for molex CR60639B
- Page 1 CR60639B Hand Crimp Tool for “Min-Fit Jr.” Terminals HAND CRIMP TOOL Operating Instruction and Specification Sheet Order No. 11-01-0198 (CR60639B) FEATURES Œ Small handle spread which make this style tool ideally suited for end users Œ Ratchet with safety release that ensures consistent performance Œ...
- Page 2 CR60639B Hand Crimp Tool for “Min-Fit Jr.” Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4). Cond. Crimp Height Punch Width (Ref) Wire Size Pull Force Min. Profile (Ref) Terminal Series No. Cond.
- Page 3 CR60639B Hand Crimp Tool for “Min-Fit Jr.” Terminals 3. Place a wire into the terminal and up against the locator blade, (See Figure 2). On tools without locators line the wire up with the conductor and insulation grips visually. 4. Close the tool until the ratchet releases, (See Figure 3).
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 CR60639B Hand Crimp Tool for “Min-Fit Jr.” Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0377 Locator Assembly** 11-11-0324 Spring (Main) 11-11-0320 Spring (Ratchet) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET...
