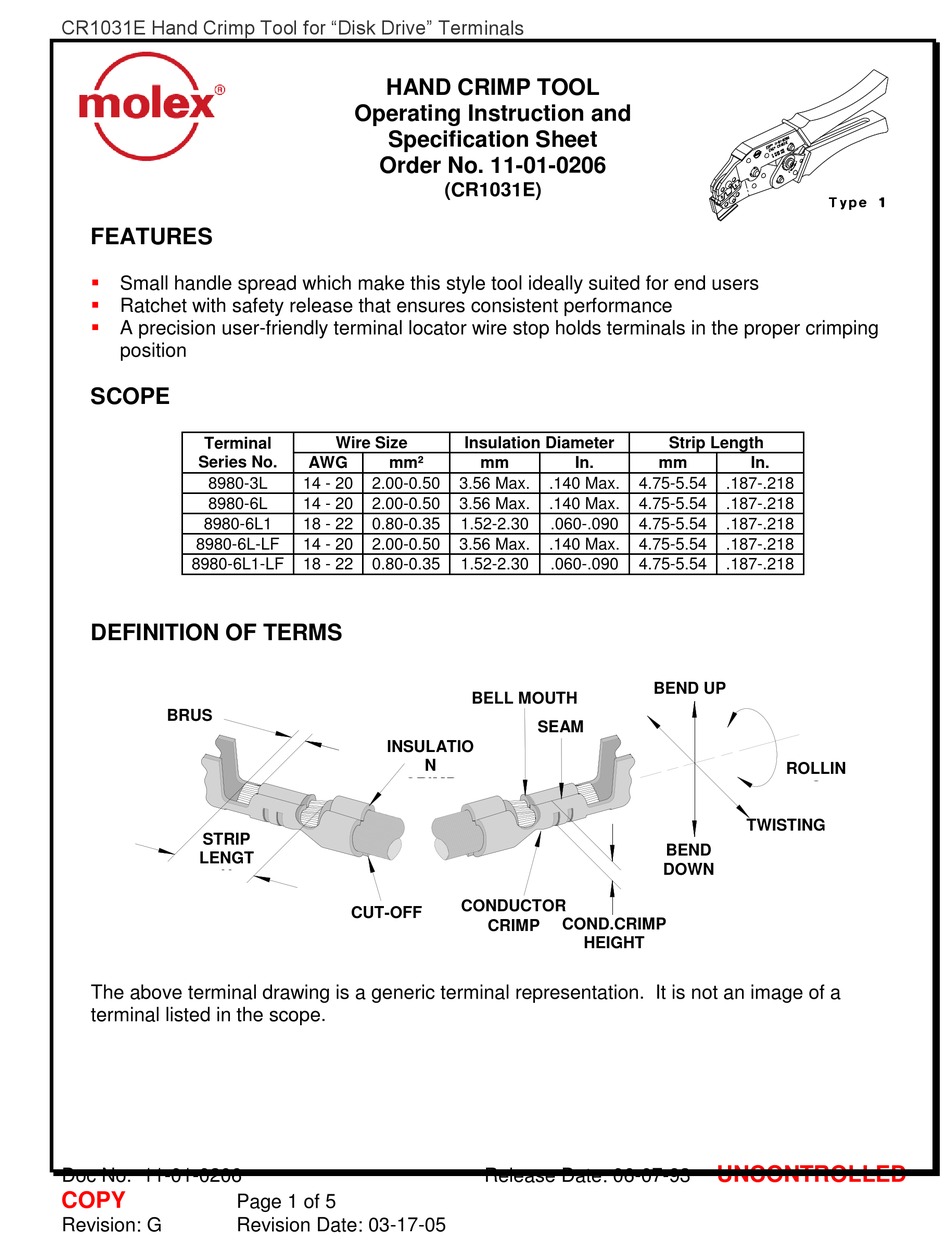

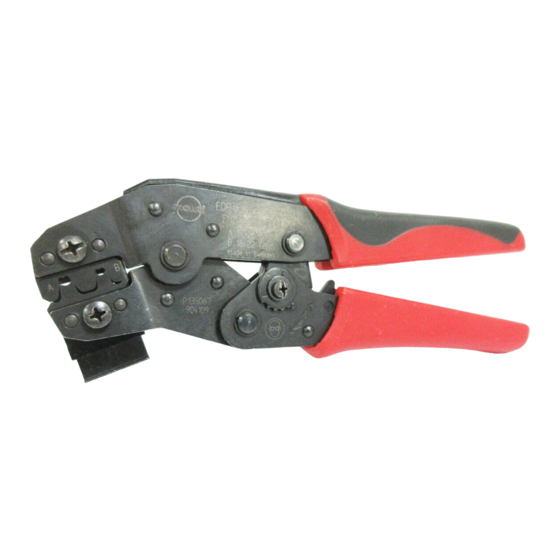

CR1031E Hand Crimp Tool for "Disk Drive" Terminals
FEATURES
Small handle spread which make this style tool ideally suited for end users
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position
SCOPE
Terminal
Series No.
8980-3L
8980-6L
8980-6L1
8980-6L-LF
8980-6L1-LF
DEFINITION OF TERMS
BRUS
H
STRIP
LENGT
H
The above terminal drawing is a generic terminal representation. It is not an image of a
terminal listed in the scope.
Doc No. 11-01-0206
COPY
Page 1 of 5
Revision: G
Revision Date: 03-17-05
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0206
(CR1031E)
Wire Size
Insulation Diameter
AWG
mm²
mm
14 - 20
2.00-0.50
3.56 Max.
14 - 20
2.00-0.50
3.56 Max.
18 - 22
0.80-0.35
1.52-2.30
14 - 20
2.00-0.50
3.56 Max.
18 - 22
0.80-0.35
1.52-2.30
BELL MOUTH
INSULATIO
N
CRIMP
CONDUCTOR
CUT-OFF
TAB
In.
mm
.140 Max.
4.75-5.54
.140 Max.
4.75-5.54
.060-.090
4.75-5.54
.140 Max.
4.75-5.54
.060-.090
4.75-5.54
BEND UP
SEAM
DOWN
COND.CRIMP
CRIMP
HEIGHT
Release Date: 06-07-93
Strip Length
In.
.187-.218
.187-.218
.187-.218
.187-.218
.187-.218
ROLLIN
G
TWISTING
BEND
UNCONTROLLED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR1031E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex CR1031E

Summary of Contents for molex CR1031E

  • Page 1 CR1031E Hand Crimp Tool for “Disk Drive” Terminals HAND CRIMP TOOL Operating Instruction and Specification Sheet Order No. 11-01-0206 (CR1031E) FEATURES  Small handle spread which make this style tool ideally suited for end users  Ratchet with safety release that ensures consistent performance ...

  • Page 2: Operation

    CR1031E Hand Crimp Tool for “Disk Drive” Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4). Punch Width (Ref) Cond. Crimp Wire Size Pull Force Min. Profile Terminal Height (Ref) Cond. Series No.

  • Page 3: Maintenance

    CR1031E Hand Crimp Tool for “Disk Drive” Terminals 4. Close the tool until the ratchet releases, (See Figure 4). 5. Lift the locator blade or wire stop up. 6. Carefully remove the crimped terminal. Figure 2 Figure 3 Maintenance It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps: 1.

  • Page 4: Warranty

    3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.

  • Page 5: Parts List

    CR1031E Hand Crimp Tool for “Disk Drive” Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0386 Locator Assembly** 11-11-0324 Spring (Main) 11-11-0320 Spring (Ratchet) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET...
