CR60622B Hand Crimp Tool for "Mini-Fit" Jr. Terminals
FEATURES
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Terminal Series No.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH

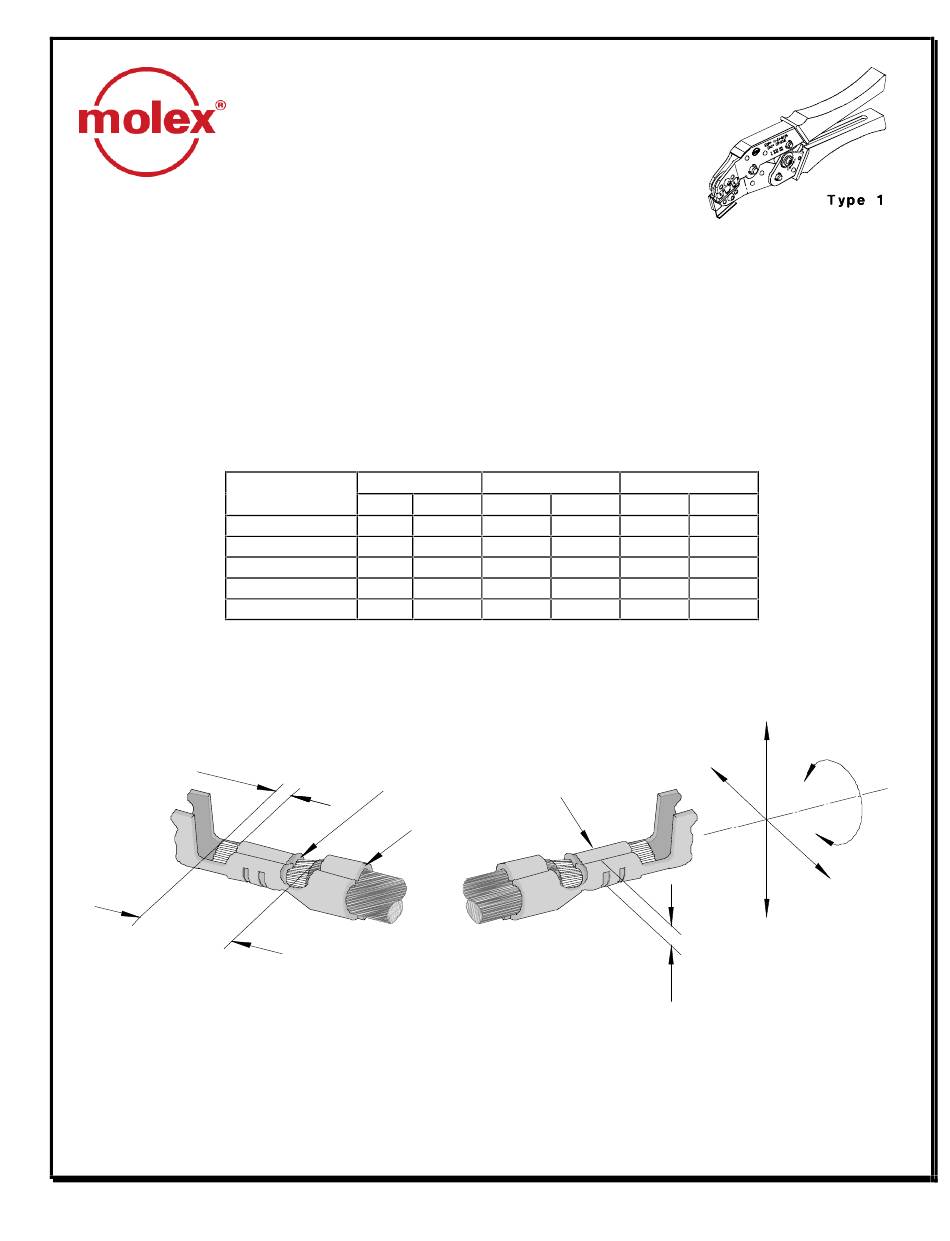

The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No. 11-01-0197
Release Date: 04-08-93
Revision: F
Revision Date: 09-01-05
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0197
Wire Size
AWG
mm²
5556T
18 - 24
0.80-0.20
5558T
18 - 24
0.80-0.20
30490
18 - 24
0.80-0.20
44476-1
18 - 24
0.80-0.20
44478-1
18 - 24
0.80-0.20
BELL MOUTH
INSULATION
CRIMP
(CR60622B)
Insulation Diameter
mm
In.
1.30-3.10
.051-.122
3.00-3.50
1.30-3.10
.051-.122
3.00-3.50
1.30-3.10
.051-.122
3.00-3.50
1.30-3.10
.051-.122
3.00-3.50
1.30-3.10
.051-.122
3.00-3.50
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
Strip Length
mm
In.
.118-.138
.118-.138
.118-.138
.118-.138
.118-.138
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for molex CR60622B
Summary of Contents for molex CR60622B
- Page 1 CR60622B Hand Crimp Tool for “Mini-Fit” Jr. Terminals HAND CRIMP TOOL Operating Instruction and Specification Sheet Order No. 11-01-0197 (CR60622B) FEATURES Œ Small handle spread which make this style tool ideally suited for end users Œ Ratchet with safety release that ensures consistent performance Œ...
- Page 2 CR60622B Hand Crimp Tool for “Mini-Fit” Jr. Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4). Cond. Crimp Punch Width Cond. Wire Size Pull Force Min. Profile Height (Ref) (Ref) Terminal Series No.
-
Page 3: Operation
CR60622B Hand Crimp Tool for “Mini-Fit” Jr. Terminals OPERATION PRE-STRIPPED WIRE Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. -
Page 4: Warranty
3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased. - Page 5 CR60622B Hand Crimp Tool for “Mini-Fit” Jr. Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0377 Locator Assembly** 11-11-0324 Spring (Main) 11-11-0320 Spring (Ratchet) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET...
