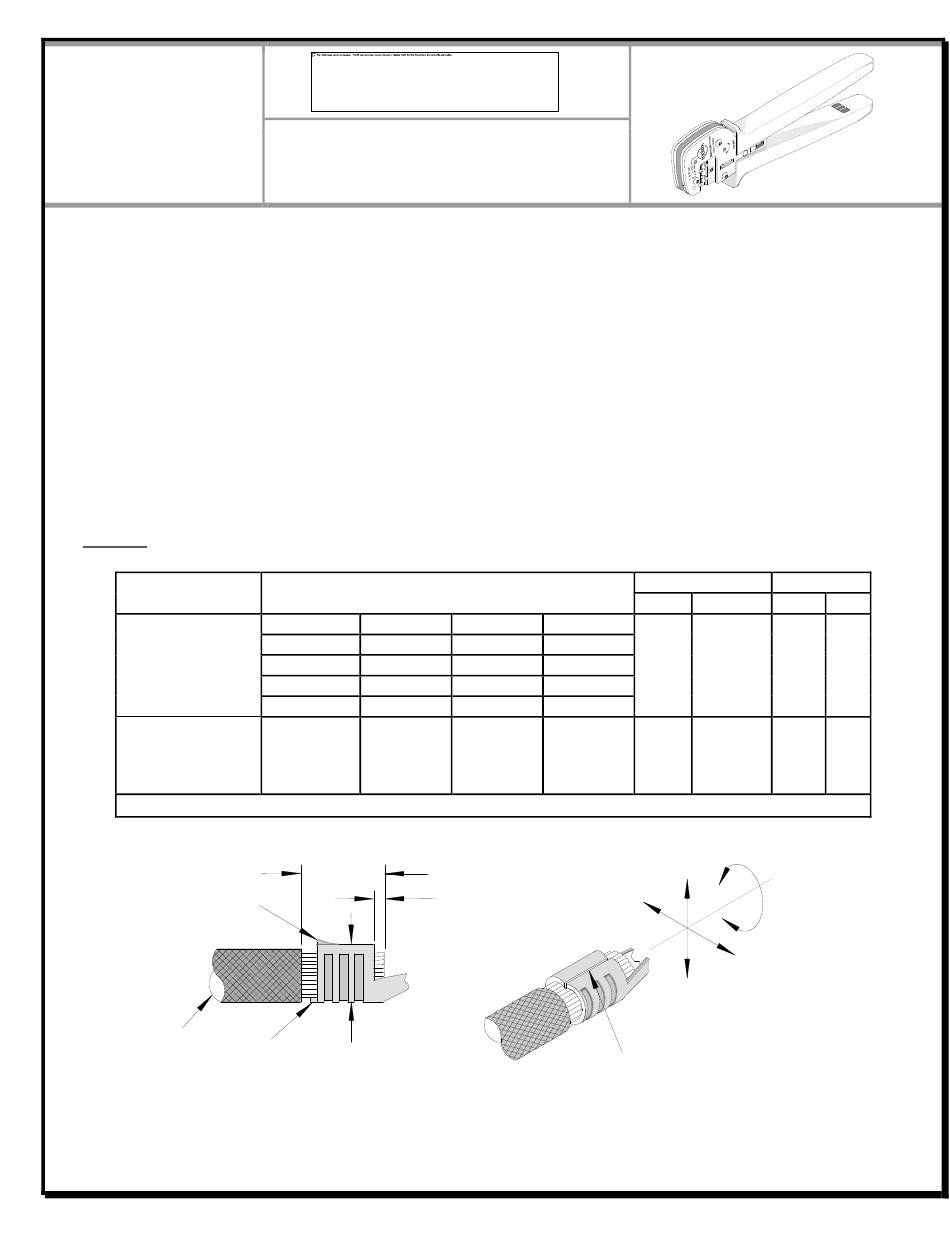

Tool Kit for 9.14mm (.360") Pitch Crimp Terminal.
Order Number
63819-5500
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
Right- and left-handed applications
Easy handling due to outstanding force ratio
A precision user-friendly terminal locator with wire stop that holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 compliant
Tooling can be installed in the 63816-1915 Power Crimp Head, which is installed into the 63816-0270 (110 V) or
63816-0280 (220 V) Battery Powered Tools and the 63816-1900 Electric Crimp Machine
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: 9.14mm (.360") Pitch Crimp Terminal, Power Contact, 14-16, (2) 16 and (2)18 AWG.
Terminal Series No.
44262
173693
The terminals above are reeled parts only. Customer to cut off terminal from reel 0.40mm (.016") maximum.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-6381955HM Release Date: 11-05-08
Revision: E
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
44262-4306
44262-4536
44262-4336
44262-4606
44262-4406
44262-4636
44262-4436
44262-4506
173693-4636
CONDUCTOR
TAB
CRIMP
Revision Date: 06-30-23
44262-6400
44262-6412
44262-6401
44262-6420
44262-6402
44262-6421
44262-6410
44262-6422
44262-6411
STRIP LENGTH
CONDUCTOR
BRUSH
SEAM
UNCONTROLLED COPY
TYPE 4C
Wire Size
Strip Length
AWG
mm²
mm
14-16,
2.00-1.30,
(2) 16
(2) 1.30
6.35
and
and
(2) 18
(2) 0.80
14-16,
2.00-1.30,
(2) 16
(2) 1.30
6.35
and
and
(2) 18
(2) 0.80
BEND UP
ROLLING
TWISTING
BEND
DOWN
in
.25
.25
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for molex 44262-4306
Summary of Contents for molex 44262-4306
- Page 1 Products: 9.14mm (.360") Pitch Crimp Terminal, Power Contact, 14-16, (2) 16 and (2)18 AWG. Terminal Order No. Wire Size Strip Length Terminal Series No. Available in Reel form only mm² 44262-4306 44262-4536 44262-6400 44262-6412 14-16, 2.00-1.30, 44262-4336 44262-4606 44262-6401...
- Page 2 4. Molex does not repair hand tools. See warranty on page 6. The replacement parts listed are the only parts available for repair. If the handles or crimp tooling become damaged or worn, a new tool must be purchased.
-
Page 3: Installation
Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. INSTALLATION To install the Tool Kit into the Power Crimp Head, follow the steps below: POWER CRIMP HEAD LIFT UP ON THE LOCATOR PUNCHES M4 X 18 LONG BHCS PRESS DOWN ON THE BRASS M4 X 10 LONG PIVOT SHAFT BHCS... -
Page 4: Operation
Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. To remove the locator 1. Open the crimp hand tool. 2. Swing the existing locator open and away from the hand tool. 3. Firmly press down on the brass pivot shaft with your thumb while pulling the locator up. Slip the locator off of the top of the brass pivot shaft. -
Page 5: Crimping Terminals
Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. Crimping Terminals 1. Select the desired terminal listed in the preceding charts. 2. Swing the terminal locator away from the crimp tool shown in Figure 3. Some terminals with large insulation grips may interfere with the crimp tooling when swinging the locator into position. The terminal must then be loaded into the locator in the closed crimp position. -
Page 6: Warranty
All vital components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. -
Page 7: Tool Description
Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. APPLICATIONS FOR THE Power CRIMP Head The chart below shows all applications for this Power Crimp Head: Crimp Head Crimp Head Tool Order No. Tool Description Figure No. Order No. Description 63819-5500 Hand Crimp Tool 63816-0270 Battery Power Tool (110 V) 63816-1915 Power Crimp Head... -
Page 8: Hand Tool Parts List
Application Tooling Support E-Mail: toolingsupport@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. UNCONTROLLED COPY...
