molex 63811-5600 Specification Sheet

Tool kit for 4.64mm (.183") crimp terminal, pin
Hide thumbs Also See for 63811-5600:
Table of Contents

Advertisement

Quick Links

Download this manual

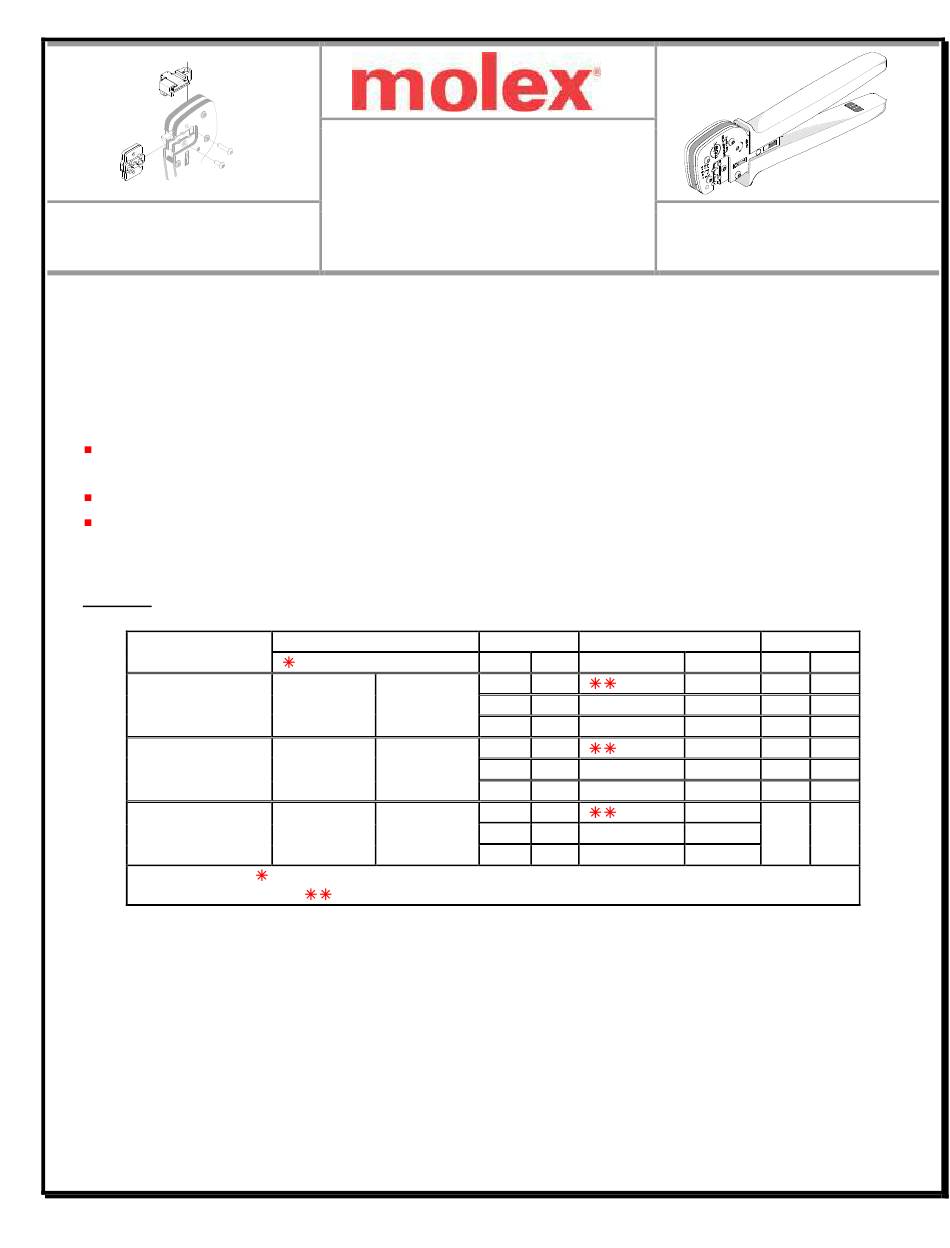

Tool Kit for 4.64mm (.183") Crimp Terminal, Pin
4
Tool Kit
Order No. 63811-5670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 4.64mm (.183") Crimp Terminal, Pin, 14-18 AWG.
Terminal Series No.
84524
84525
84590
Doc No: ATS-6381156HM Release Date: 01-18-07
Revision: F
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
84524-0008
84524-0016
84525-0017
84525-0039
84590-0022
84590-0029
84590-0023
84590-0037
84590-0028
84590-0038
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
IPC/WHMA-A-620 Class 2 only 3.05-3.40mm (.120-.134")
Revision Date: 05-24-11
Wire Size
Insulation Diameter
AWG
mm²
mm
14
2.09
3.05-3.81
16
1.33
2.41-3.05
18
0.82
1.91-2.41
14
2.09
3.05-3.81
16
1.33
2.41-3.05
18
0.82
1.91-2.41
14
2.09
3.05-3.81
16
1.33
2.41-3.05
18
0.82
1.91-2.41
UNCONTROLLED COPY
TYPE 4C

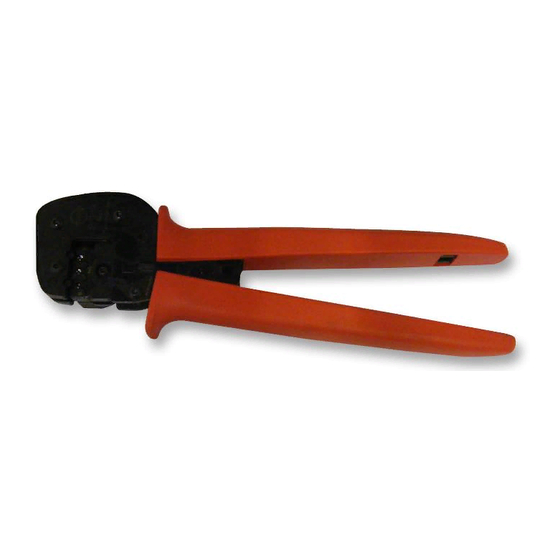

Hand Crimp Tool
Order No. 63811-5600
Strip Length
in
mm
in
.120-.150
.095-.120
4.45
.175
.075-.095
.120-.150
.095-.120
4.45
.175
.075-.095
.120-.150
.095-.120
4.45
.175
.075-.095
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-5600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 63811-5600

Summary of Contents for molex 63811-5600

  • Page 1 Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-5670 Order No. 63811-5600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

  • Page 2: Definition Of Terms

    Tool Kit for 4.64mm (.183") Crimp Terminal, Pin DEFINITION OF TERMS STRIP LENGTH BELL MOUTH CONDUCTOR BRUSH BEND UP ROLLING TWISTING WIRE CONDUCTOR CRIMP BEND CUT-OFF DOWN SEAM CRIMP SPECIFICATION Bell Mouth Bend up Bend down Twist Roll Conductor Brush Terminal Series No.

  • Page 3: Installation

    Tool Kit for 4.64mm (.183") Crimp Terminal, Pin CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. INSTALLATION POWER CRIMP HEAD LIFT UP ON THE LOCATOR...

  • Page 4: Operation

    Tool Kit for 4.64mm (.183") Crimp Terminal, Pin CONDUCTOR OPERATION INSULATION PUNCH PUNCH Open the tool by squeezing the handles together, at the WIRES AGAINST LOCATOR STOP end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. LOCATOR WIRE Crimping Terminals...

  • Page 5: Maintenance

    4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Repetitive use of this tool should be avoided. Certification Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for customers to re-certify hand tools. UNCONTROLLED COPY...
  • Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.

  • Page 7: Hand Tool Parts List

    Tool Kit for 4.64mm (.183") Crimp Terminal, Pin HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63811-5670 Tool Kit with Locator 63811-5573 Locator Base 63811-5675 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY...

  • Page 8: Power Head Parts List

    Power Crimp Head 63811-5670 63811-5670 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381156HM Release Date: 01-18-07 Page 8 of 8 Revision: F Revision Date: 05-24-11...
