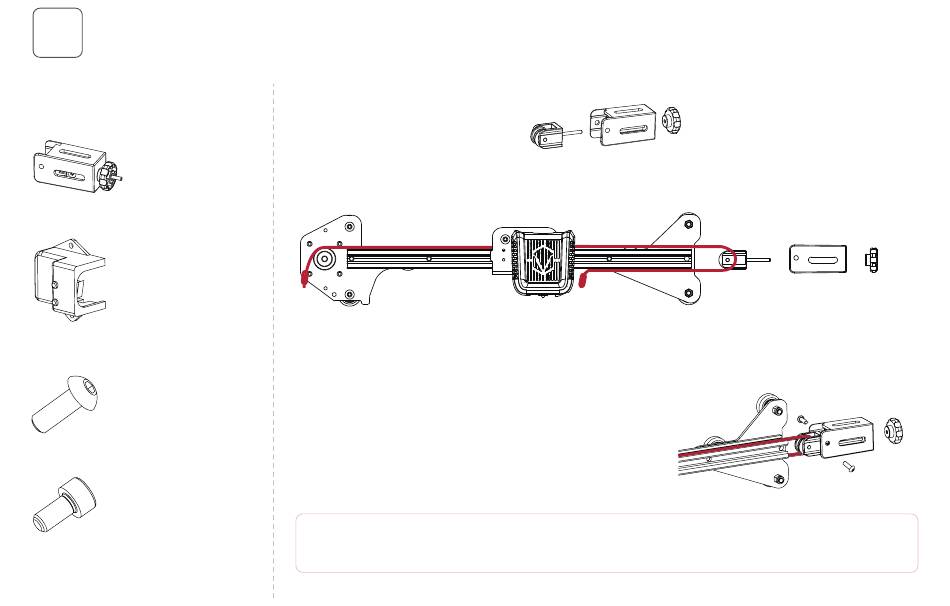

Install X-axis tensioner
5
安装X轴张紧器
X-axis tensioner *1
X轴张紧器 *1
X-axis limit sensor kit *1
X轴限位传感器 *1
Hexagon socket button
head screws M5x14 *2
内六角平圆头螺钉M5x14 *2
Hexagon socket head cap
screw M4x8 *2
内六角圆柱头螺钉M4x8 *2
1. Disassemble the X-axis tensioner.
将X轴张紧器拆分为三个部分。
2. Insert the synchronous belt into the tensioner block.
将同步带一头穿过张紧轮。
3. Tighten tensioner with a plastic hand screw nut, and then lock it
with two M5x14 screws on both sides of the Z-axis passive block.
张紧轮组件按图示锁紧。
Note: Please do not tighten the X-axis tensioner screws with too much force.
注意：切勿用蛮力锁紧张紧器的塑料旋钮。
11
M5x14
