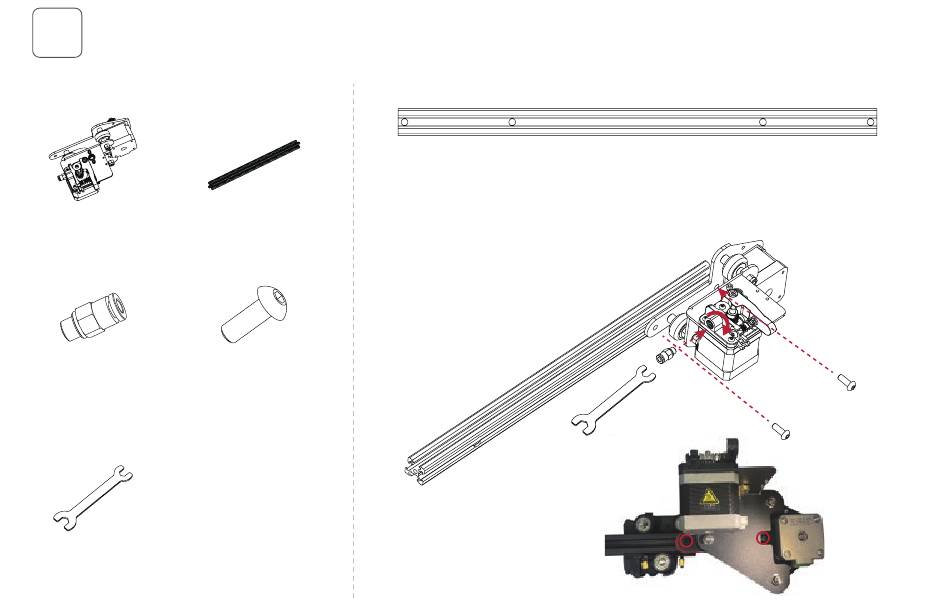

Install pneumatic joint and XE-axis kit
3
安装气管接头和XE轴组件
XE-axis kit *1
X-axis profile *1
XE轴组件 *1
X轴型材 *1
M6 Pneumatic joint *1
Hexagon socket button
M6 气管接头 *1
head screws M5x14 *2
内六角平圆头螺钉M5x14 *2
Open-end wrench *1
开口扳手 *1
Tighten the M6 Pneumatic joint by using open-end wrench. And fix the XE-axis kit with two M5x14 screws.
使用开口扳手拧紧M6气管接头；用2颗M5x14螺钉将XE轴组件固定在X轴型材上。
09
X-axis profile
X轴型材
M5x14
